Page 1: Installation Guide

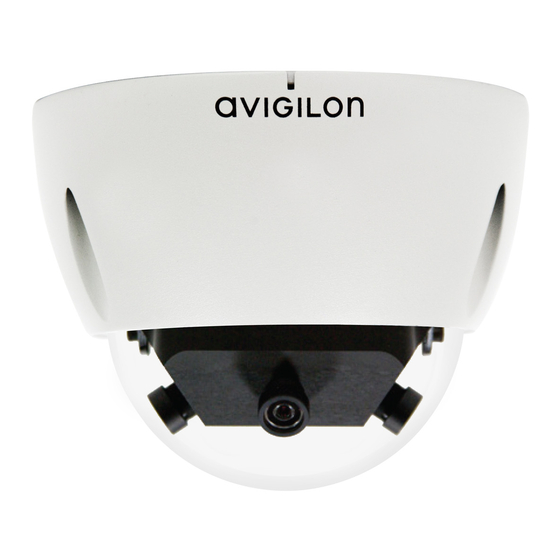

Installation Guide Avigilon™ Panoramic High Definition IP Dome Camera Model: 8.0MP-HD-DOME-360... -
Page 2: Important Safety Information
Power Source” with output rated 12 VDC or 24 VAC, 9 W min. or Power over Ethernet (PoE), rated 48 VDC, 9 W min. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated. -
Page 3: Regulatory Notices
Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. -
Page 4: Legal Notices
Legal Notices © 2010 -2014 Avigilon Corporation. All rights reserved. Unless expressly granted in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon Corporation or its licensors. AVIGILON is a registered and/or unregistered trademark of Avigilon Corporation in Canada and other jurisdictions worldwide. -
Page 5: Table Of Contents
Table of Contents Overview Cover View Bottom View Front View Rear View Heater View Installation Required Tools and Materials Camera Package Contents Installation Steps Removing the Dome Cover Mounting the Dome Camera Connecting External Power Aiming the Dome Camera Connecting to the Network Video Recorder IP Address Selection Advanced Features Connecting to External Devices... -

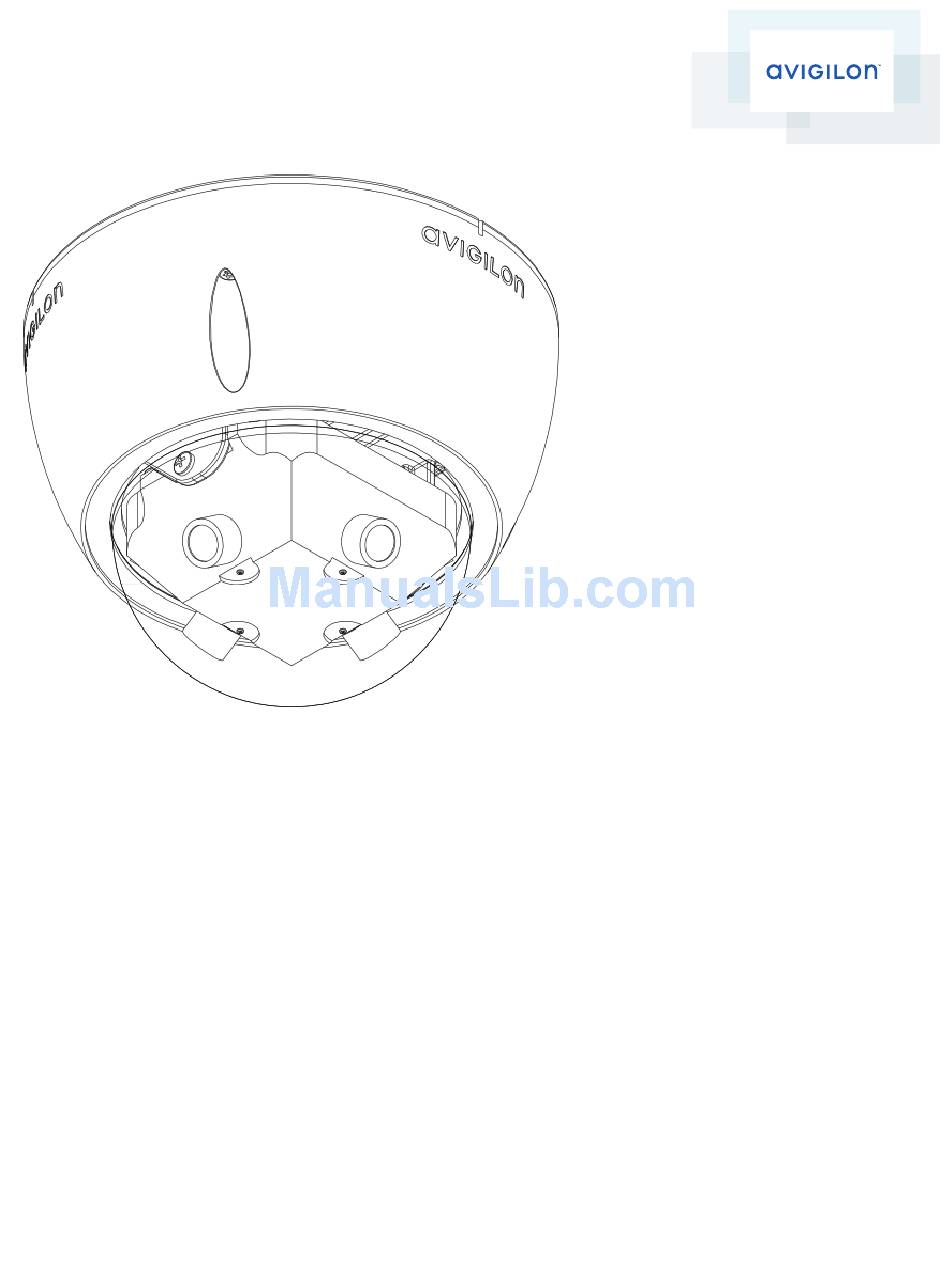

Page 6: Overview
Overview Cover View 1. Dome Cover Vandal proof dome cover. 2. Tamper Resistant Screws Torx captive screws to fix the dome cover to the base. Overview... -
Page 7: Bottom View
Bottom View 1. Cable Entry Hole An entry hole for network, power and I/O cables. 2. Dome Mounting Slot Mounting points for the camera. 3. Serial Number Tag Product serial number and part number label. Bottom View... -
Page 8: Front View
Front View 1. Power Connector Block Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only required when Power over Ethernet is not available. 2. Audio I/O Connector Accepts a mini-jack connector (3.5 mm). 3. -
Page 9: Rear View
Rear View 1. Connection Status LED Provides information about device operation. For more information, see LED Indicators on page 12 2. Image Rotation Switch Rotates the image by 180˚. Rear View... -
Page 10: Heater View
Heater View 1. Heater Provides heat for the camera to extend the operating temperature range. The heater is not included with all models. Heater View... -
Page 11: Installation
Small slotted screwdriver with 5/64” or 2 mm blade width — for connecting power when not using Power over Ethernet. Camera Package Contents Ensure the package contains the following: Avigilon™ Panoramic High Definition IP Dome Camera Terminal block T20 Torx key 3 screws and anchors for solid walls... -
Page 12: Connecting External Power
1. Using the drill template, drill three mounting holes and one cable entry hole in the ceiling/ wall. If using a dome camera mounting accessory, this step is not necessary. 2. Drive three screws into mounting holes and leave 6 mm (¼”) between the screw head and the ceiling/wall surface. -
Page 13: Aiming The Dome Camera
Important: To avoid networking problems, only use network switches recommended by Avigilon. Connect the dome camera to the same network as the server running the Avigilon™ Control Center software. An IP address is automatically assigned to the device, and will be detected by the software. -
Page 14: Ip Address Selection
If this fails, an IP address will be selected using Zeroconf (APIPA). If the IP address is set using Zeroconf, the IP address will be in the 169.254.* subnet. A static IP address can be set from the Avigilon Control Center software, consult the software user guide for details. -
Page 15: Advanced Features
Advanced Features Connecting to External Devices External devices are connected to the device through the I/O terminal. The pinout for the I/O terminal is shown in the following diagram: 1. GND 2. RS-485 RX/TX+ — Half-duplex RS-485 interface for controlling external equipment. 3. -
Page 16: Connecting To Microphones And Speakers
Connecting to Microphones and Speakers The dome camera can be connected to an external microphone and speaker through the audio connector. The audio connector is a 3.5 mm (1/8”) input for a mono microphone or a line-in mono signal. The left channel of the stereo signal is used. -
Page 17: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 18: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. 1. Disconnect power from the device. 2. -
Page 19: Cleaning
Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or finger prints Use a microfiber cloth or non-abrasive fabric to dry the dome bubble. -
Page 20: Specifications
Specifications Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 Security Protocols UDP, TCP, SOAP, DHCP, Zeroconf Mechanical Dimensions ØxH 150mm x 120mm (5.9” x 4.7”) Weight 0.91 kg (2.0 lbs) without lens Dome Bubble Polycarbonate, clear Body Aluminum Housing Surface mount, vandal resistant Finish Powder coat, cool gray 2 Electrical... - Page 21 FCC Part 15 Subpart B Class A Electromagnetic EN 55022 Class A Emissions IC ICES-003 Class A EN 50130-4 EN 61000-4-2 EN 61000-4-3 Electromagnetic EN 61000-4-4 Immunity EN 61000-4-5 EN 61000-4-6 EN 61000-4-11 Specifications...
-
Page 22: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
