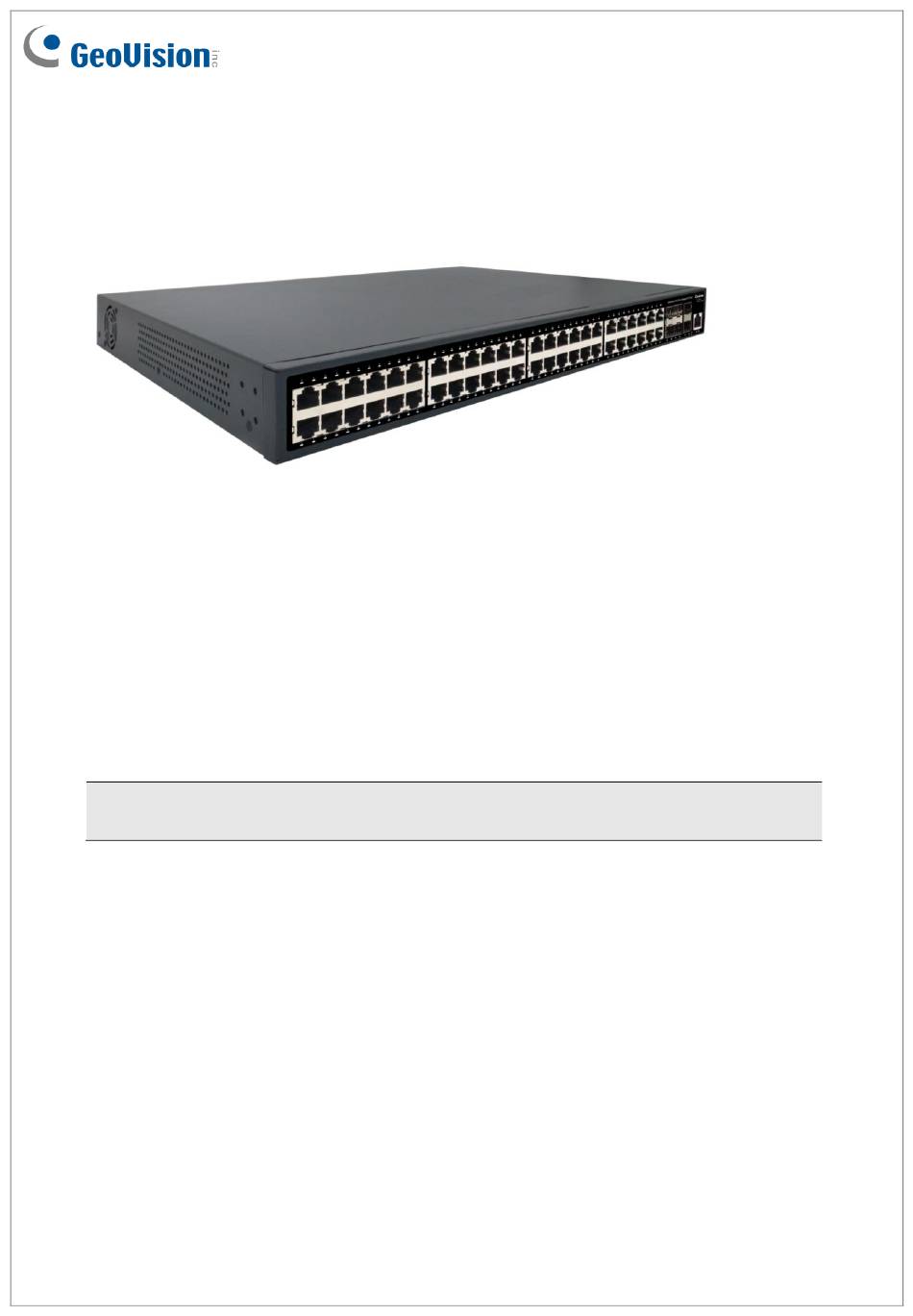

GV-APOE4813
48-Port Gigabit Web Management PoE Switch
Packing List
1. GV-APOE4813
2. Power Cord
3. Screw x 8
4. Rack Mount Kit
5. Rubber Feet x 4
Note: If any of these items is found missing or damaged, please contact your local
supplier for replacement.
May 5, 2023
1
