GeoVision GV-APOE081C Manual

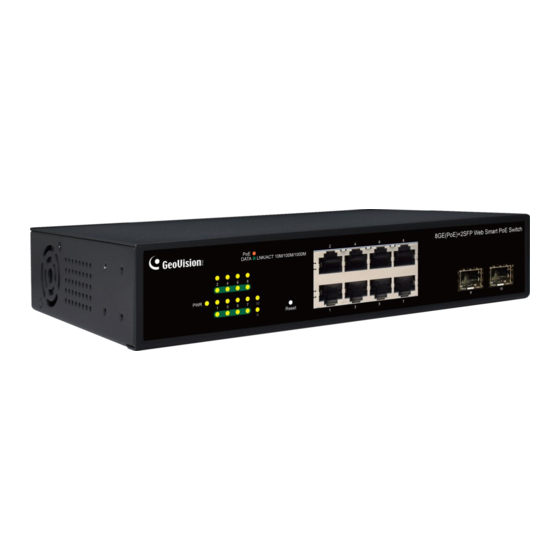

8-port gigabit easy web smart poe switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Packing List ..................................................................................................................... 1
Front Panel ....................................................................................................................... 2
LED Indicator ................................................................................................................... 2
Rear Panel ........................................................................................................................ 3
Mount Installation ............................................................................................................ 3
Desktop Installation ................................................................................................. 3
Rackmount Installation ............................................................................................ 4
Connecting to GV-IP Camera .......................................................................................... 5
Accessing the Web Interface .......................................................................................... 6
Basic Setup ...................................................................................................................... 7
Assigning an IP Address ................................................................................ 7
Configuring PoE Port Using GV-IP Device Utility ......................................... 9
Loading Default Setting ..................................................................................................10
Hardware .................................................................................................................10
Web Interface ..........................................................................................................11
Updating Firmware .........................................................................................................12
Specifications .................................................................................................................12
GV-APOE081C
Content

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-APOE081C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-APOE081C

Summary of Contents for GeoVision GV-APOE081C

  • Page 1: Table Of Contents

    GV-APOE081C Content Packing List ........................1 Front Panel ........................2 LED Indicator ........................2 Rear Panel ........................3 Mount Installation ......................3 Desktop Installation ....................3 Rackmount Installation .................... 4 Connecting to GV-IP Camera ..................5 Accessing the Web Interface ..................6 Basic Setup ........................

  • Page 2: Packing List

    GV-APOE081C 8-Port Gigabit Easy Web Smart PoE Switch Packing List 1. GV-APOE081C 2. Power Cord 3. Screw x 8 4. Rack Mount Kit 5. Rubber Feet x 4 Note: If any of these items is found missing or damaged, please contact your local...

  • Page 3: Front Panel

    Front Panel Gigabit RJ-45 Ports LED Indicator SFP Uplink Ports Reset Button LED Indicator Color/Status Description No power supply Green System powered on No devices connected to the corresponding port Network successfully established at 10/100/1000Mbps Green On DATA through the corresponding port Data actively being sent or received by the Switch over Blinking Green the corresponding port...

  • Page 4: Rear Panel

    Rear Panel Mount Installation Desktop Installation ➢ Place the bottom of the Switch face up on a large enough stable desktop; ➢ Tear off the attached sticky paper on the surface of the footpad and paste the footpad into the groove at the bottom of the chassis of the Switch to prevent external vibration; ➢...

  • Page 5: Rackmount Installation

    Rackmount Installation ➢ Check the grounding and stability of the EIA-19inch cabinet; ➢ Fix mounting ears to both sides of the front panel of the Switch using screws. Place the Switch on a bracket of the cabinet and move the Switch along the guide rails of the cabinet to a proper position;...

  • Page 6: Connecting To Gv-Ip Camera

     Gigabit RJ-45 (Cat.5e, 6) can achieve 250 m (820 ft) by setting the network bandwidth of the 8 PoE ports to 10 Mbps per port on the switch’s Web interface. See details in 3.6.1 Port Rate, GV-APOE081C User’s Manual. For connection that exceeds 250 m (820 ft), use the Gigabit SFP ports.

  • Page 7: Accessing The Web Interface

    Accessing the Web Interface Users can log in the Web interface to manage and set up the switch. 1. To access the Web user interface, type the default IP 192.168.0.250 into your Web browser. The login page appears. 2. Type the default username admin and password admin. Click Login In. 3.

  • Page 8: Basic Setup

    Basic Setup Refer to the following sections for the basic setup of the switch, including assigning an IP address and configuring port PoE. A. Assigning an IP Address Adopt one of the following alternatives to assign an IP address to the switch. Assigning a Fixed or Dynamic IP on the Web Interface 1.
  • Page 9 Assigning an IP Using GV-IP Device Utility 1. Make sure a PC and the switch are connected to the same LAN, and GV-IP Device Utility (V8.9.9 or later) is installed on the PC from our website. 2. On GV-IP Device Utility, click the button to search for the IP devices in the same LAN.

  • Page 10: Configuring Poe Port Using Gv-Ip Device Utility

    B. Configuring PoE Port Using GV-IP Device Utility You can quickly access and configure the PoE port status of the devices connected to the switch by using GV-IP Device Utility. Follow the instructions below: 1. Make sure a PC and the switch are connected to the LAN, and GV-IP Device Utility (V8.9.9 or later) is installed on the PC from our website.

  • Page 11: Loading Default Setting

    Loading Default Setting If for any reason the device is not responding properly, you can reset it to its factory default settings either directly on the device or through its Web interface. Hardware 1. Turn on the switch. 2. Press and hold the Reset button on the front panel of the switch for 5 seconds until all the LED start blinking.

  • Page 12: Web Interface

    Web Interface 1. Select System Information > Device Management. 2. In the Device Management table, click Reboot to restart the switch, click Restore to restore the switch to its factory default configurations, or click Save Configure to restore default configurations while keeping the current settings. Note: After loading default by pressing the Reset button or from the Web interface, you may need to configure IP address and Password again.

  • Page 13: Updating Firmware

    Updating Firmware 1. Select System Information > Upgrade. This page appears. 2. Click Select File to select the firmware file. 3. Click OK on the popup message. The upgrade process starts. 4. After the firmware is successfully upgraded, the system will automatically log out and reboot.
