GeoVision GV-APOE0400 Installation Manual

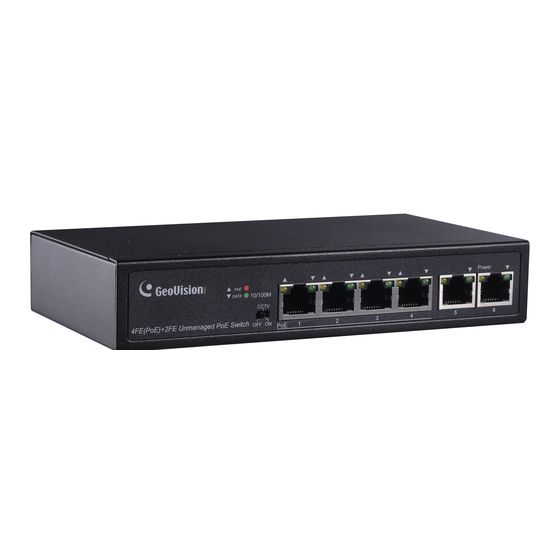

6-port 10/100 mbps unmanaged poe switch with 4-port poe

Table of Contents

Download this manual

GV-APOE0400

with 4-Port PoE

1. Packing List

1. GV-APOE0400

2. AC Power Cord

3. Rubber Feet x 4

Note: If any of these items is found missing or damaged, please contact your local

supplier for replacement.

September 10, 2021

6-Port 10/100 Mbps Unmanaged PoE Switch

Table of Contents

Do you have a question about the GV-APOE0400 and is the answer not in the manual?

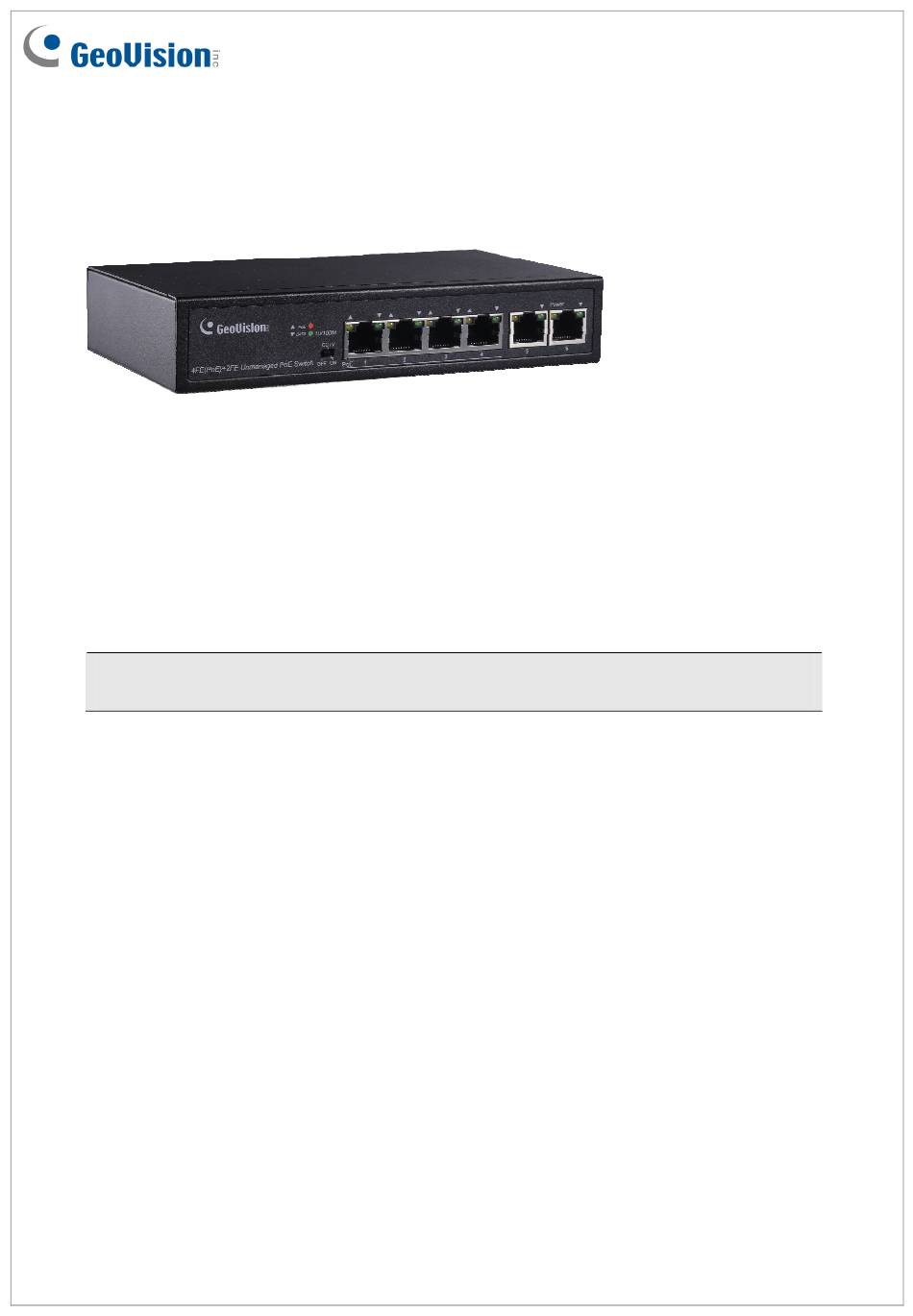

Page 1 GV-APOE0400 6-Port 10/100 Mbps Unmanaged PoE Switch with 4-Port PoE 1. Packing List 1. GV-APOE0400 2. AC Power Cord 3. Rubber Feet x 4 Note: If any of these items is found missing or damaged, please contact your local supplier for replacement.
Page 2 2. Front Panel The front panel consists of 6 10/100 Mbps ports, 4 PoE and 2 uplink, LED indicators and the DIP switch. 2.1 LED Indicator Color/Status Description No power supply Power Orange System powered on No devices connected to the corresponding port Network through the corresponding port has been Green successfully established...
Page 3 3. Rear Panel The AC power socket for powering the system is located at the rear panel and accepts power input from 100 to 240 V at 50/60 Hz. 4. Installation Prior to installing the PoE switch, please note the following: Only clean the switch when it is unplugged and with a dry cloth without involving any ...
Page 4 4.2 Wall Mount Installation For wall mount, make sure to prepare 2 screws of 4 mm in length and 5.5 ~ 7 mm in diameter and prepare 2 screw anchors of matching size. 1. Drill two evenly-leveled holes on the desired wall that are 122 mm apart. 2.
Page 5 5. Connecting to GV-IP Camera The switch can be connected to up to 4 GV-IP Camera and 1 GV-VMS / NVR / DVR System. You can also extend the connection by connecting to another switch. 6. Specifications For details, please see Datasheet. September 10, 2021...
