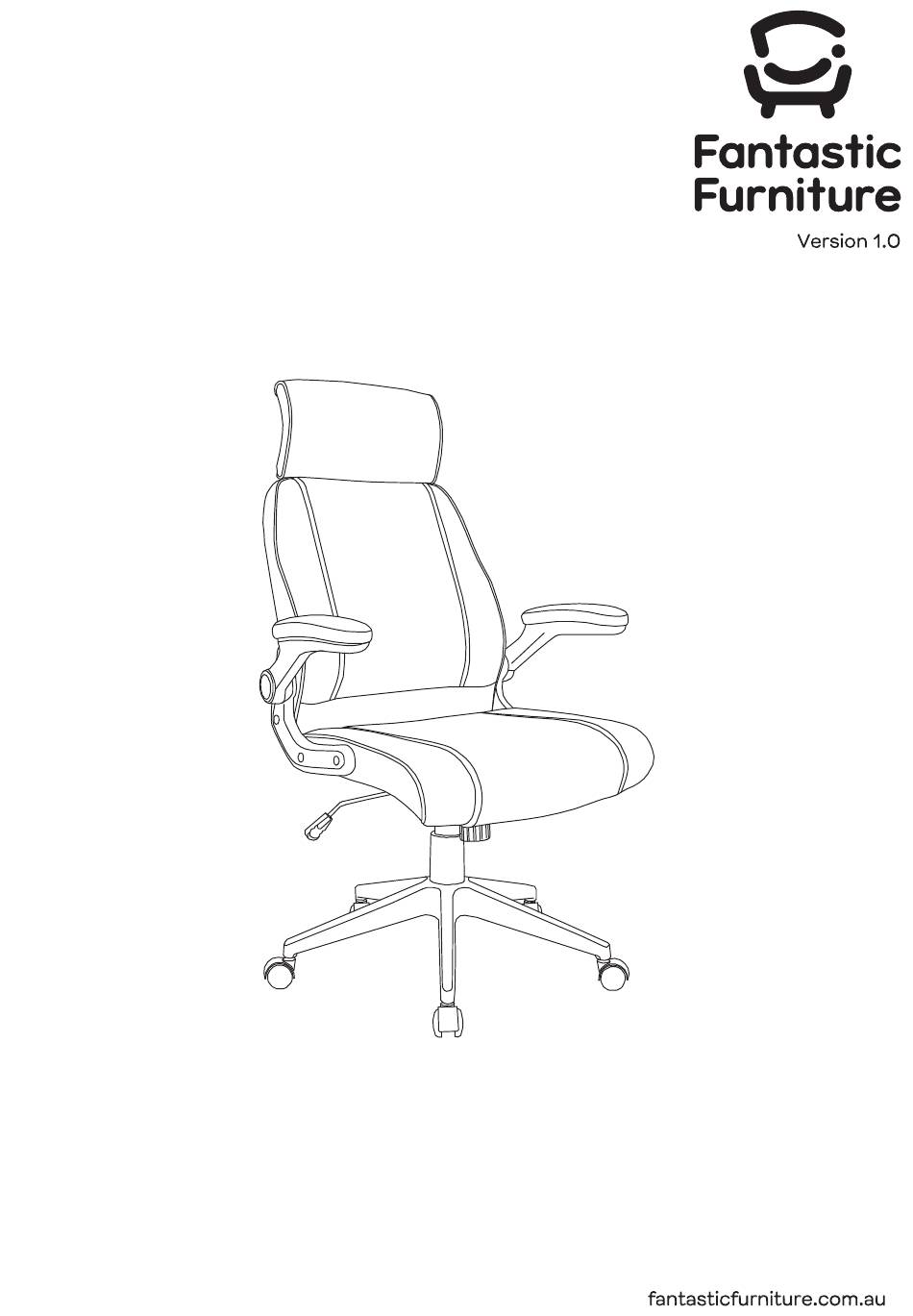

- Page 1 Heath Office Chair...
- Page 4 Backrest (P1) Left Arm (P2) Part list Backrest (P1) Right Arm (P3) Left Arm (P2) Right Arm (P3) Seat (P4) Seat (P4) Seat Plate (P5) Gas Lift Cover (P6) Gas Lift (P7) Seat Plate (P5) Star Base (P8) 5 x Castor (P9) Gas Lift Cover (P6) Gas Lift (P7) Star Base (P8)
-
Page 5: You Will Need
Gas Lift Cover (P6) Gas Lift (P7) Star Base (P8) Castor (P9) Insert 5 x Castors (P9) into the Star Base (P8) as shown. Push down firmly on each castor to ensure they are fixed in position. Insert the Gas Lift (P7) into the top of Star Base (P8). Place the Gas Lift Cover (P6) over the top of the Gas Lift (P7) as shown. - Page 6 Seat (P4) Seat Plate (P5) Gas Lift (P7) Position the centre hole of the Seat Plate (P5) over the top of Gas Lift (P7). Carefully lower the Seat (P4) onto the Gas Lift (P7). Press seat down firmly. Check the connection is secure before sitting in the chair. You will need Left Arm (P2) Right Arm (P3)
- Page 7 Backrest (P1) Right Arm (P3) Left Arm (P2) You will need (H2) (H2) 4 x Large Allen Key (H2) (H2) Bolts(H2) (H4) (H4) Attach Right & Left Armrests (P3&P2) to the Back Rest (P1) as shown with 4 x Large Bolts (H2) by tightening with Allen Key (H4).
- Page 8 Step 7...
