Summary of Contents for fantastic furniture Hamilton Bedside 1 Drawer

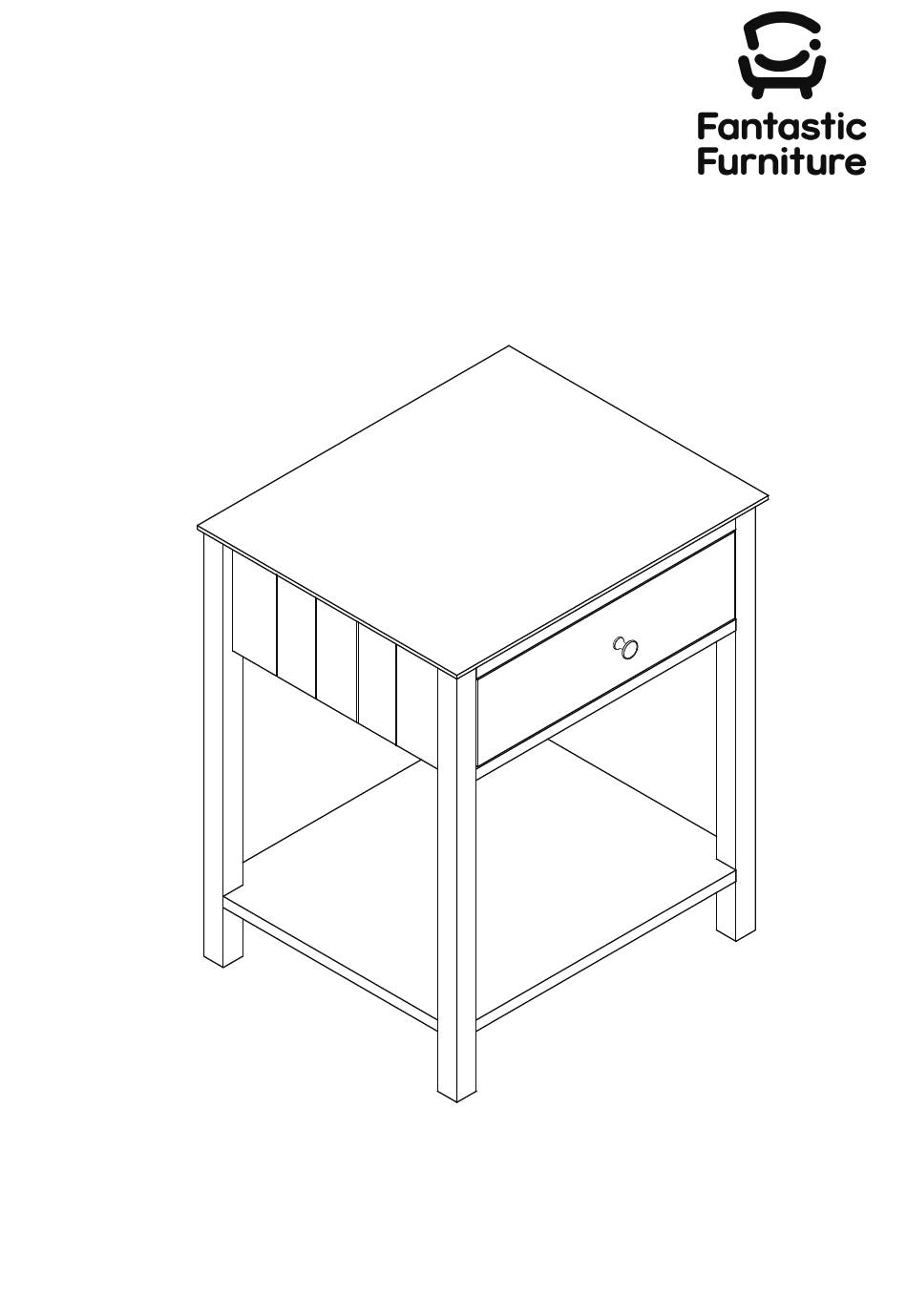

- Page 1 Version 1.0 Hamilton Bedside 1 Drawer fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need to assemble the product Top Panel Right Side (P1) Panel (P3) Back Panel (P4) DO NOT USE Rail Other tools you need: (P5) Phillips head screwdriver; Rail (P6) Left Side Panel (P2) Shelf Panel Parts list (P7) Top Panel (P1);... - Page 5 Step 1 You will need (P5) 4 x Cam Bolts 2 x Long (H3) Screws (H2) Phillips Head Screwdriver (P1) Attach 4 x Cam Bolts (H3) to Top Panel (P1), and attach Rail (P5) to Top Panel (P1) with 2 x Long Screws (H2) by tightening the Phillips Head Screwdriver.
- Page 6 Step 3 You will need (P3) Phillips Head 10 x Cam Bolts Screwdriver (H3) (P2) Attach 10 x Cam Bolts (H3) to Left & Right Side Panels (P2&P3) by tightening the Phillips Head Screwdriver. Step 4 (P6) You will need (P4) 5 x Cam Nuts 1 x Dowel...
- Page 7 Step 5 (P3) You will need (P6) 5 x Cam Nuts 1 x Dowel (H4) (H1) (P4) Phillips Head Screwdriver (P7) Insert 1x Dowel (H1) into Right Side Panel (P3). Insert 4 x Cam Nuts (H4) into Rail & Back Panel &...
- Page 8 Step 7 You will need (P1) 1 x Safety 1 x Safety Strap (P2) Strap (H13) Screw (H14) (P3) (P4) 1 x Washer Phillips Head (H15) Screwdriver Use 1 x Safety Screw (H14) and 1 x Washer (H15) to connect 1 x Safety Strap (H14) on Back Panel (P4) by tightening with the Phillips head screwdriver.
- Page 9 Step 9 (P9) You will need (P10) 4 x Cam Nuts Phillips Head (H4) Screwdriver Insert 4 x Cam Nuts (H4) into Left&Right Drawer Side (P9&P10) as shown. Rotate (P8) the cam nuts so the arrows point towards the incoming cam bolts. Attach Drawer Front (P8) to Left&Right Drawer Side (P9&P10) by tightening all cam nuts with the Phillips Head Screwdriver.
- Page 10 Step 12 You will need (P10) 1 x DL 1 x DR Runner (H8) Runner (H9) (P9) Phillips Head 4 x Small Screwdriver Screws (H5) Attach 1 x DL Runner (H8) to the bottom of Left Drawer Side (P9) and 1 x DR Runner (H9) to the bottom of Right Drawer Side (P10) with 4 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
- Page 11 Step 14 Insert the assembled drawers into the corresponding compartments as shown. Ensure the drawers slide easily along the rails. Step 15 wall You will need Screw 1 x Washer Phillips Head (H14) Screwdriver Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall.
-
Page 12: Job Complete
Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 12...
