Specification:
Free Speed
Capacity Bolt Size
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
3/8" Air Impact Wrench
(Pin Clutch)
ST-5533
9,000 r/min
1/2" (M13)
160 ft-lb (216 N-m)
15 CFM (430 L/min)
6-3/8" (163 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
3.52 lbs (1.6 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
Load:
4.0 m/s²
Sound power level
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Please always
load: 88.7 dB(A)
protector at
environment
load: 99.7 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-5533-S-1408E-YCF
Remark
wear ear
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-5533
Summary of Contents for Sumake ST-5533

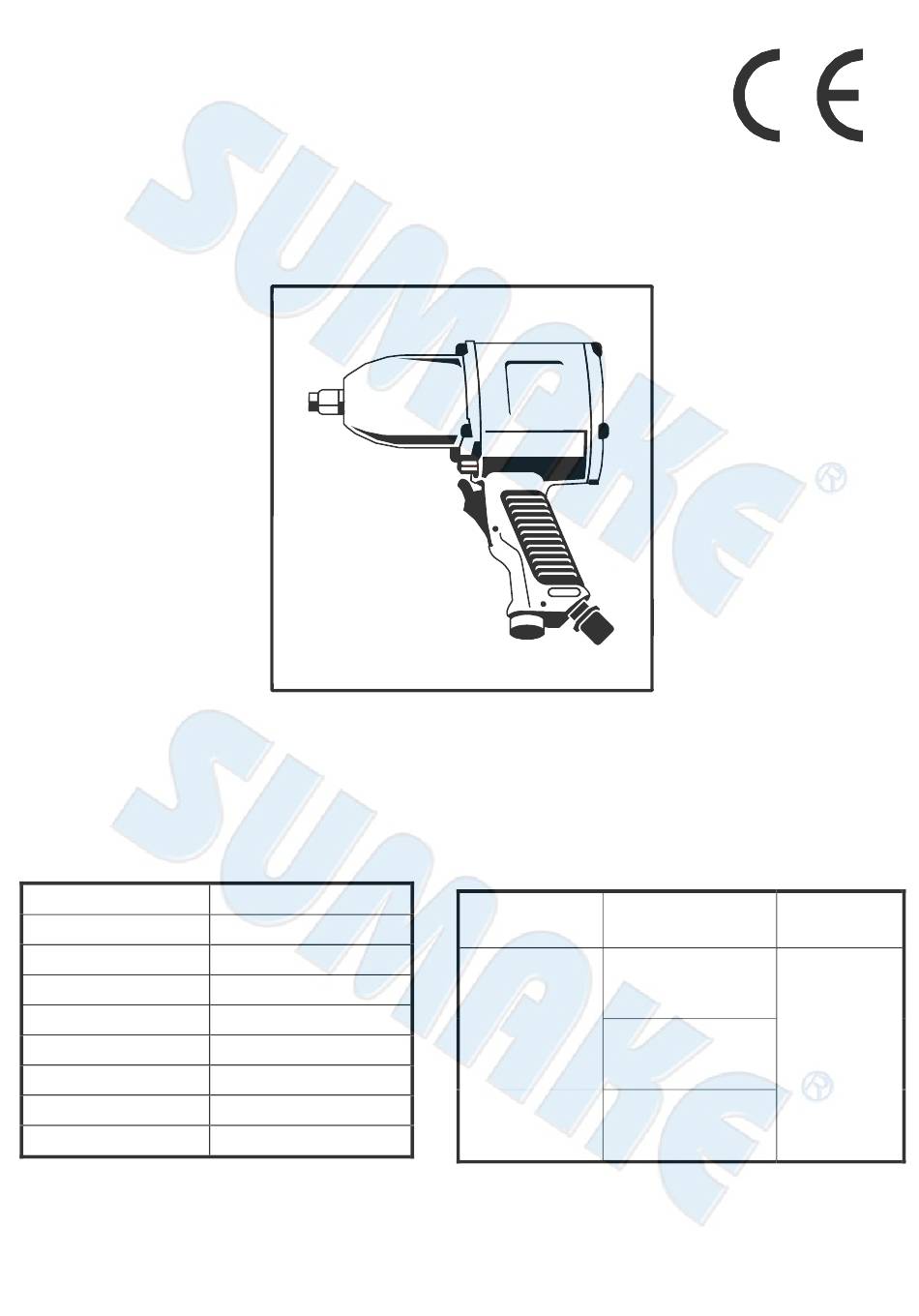

- Page 1 3/8” (10 mm) dB(A) due to risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! K= 1.5 m/s K= 3dB ² Net Weight 3.52 lbs (1.6 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-5533-S-1408E-YCF...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：3/8" AIR IMPACT WRENCH (PIN CLUTCH) Model/ Serial No.：ST-5533 to which this declaration applies, complies with these normative documents: ...
- Page 3 Sumake is a manufacturer and exporter of air largest torque output. tools since established. We have devote all our 1. The power toll shall not be used in potentially Tool 3.3 Rotating Direction...
- Page 4 ST-5533(A ) 3/8"(1/2") AIR IMPACT WRENCH (PIN CLUTCH) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5533-01 Oil Seal 5533-27-1 Anvil Collar [1/2" DR] 5533-02 Screw 5533-28 Anvil [3/8" DR] 5533-03 O-Ring 5533-28-1 Anvil [1/2" DR] 5533-04 Hammer Cage...
- Page 5 IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
- Page 8 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
