(Rocking Dog) (Yellow Coating)
Specification:
Free Speed
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
1/2" Air Impact Wrench
ST-M1001Y
7,200 r/min
280 ft-lb (378 N-m)
17 CFM (480 L/min)
7.6" (193 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
4.48 lbs (2.2 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
No load: 90 dB(A)
No Load:
4.4 m/s²
Sound power level
No load: 101 dB(A)
Uncertainty
²
K= 1.5 m/s
Noise
Remark
EN ISO 15744
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
hearing!
K= 3dB
ST-M1001Y-S-1609F-HYF
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-M1001Y
Summary of Contents for Sumake ST-M1001Y

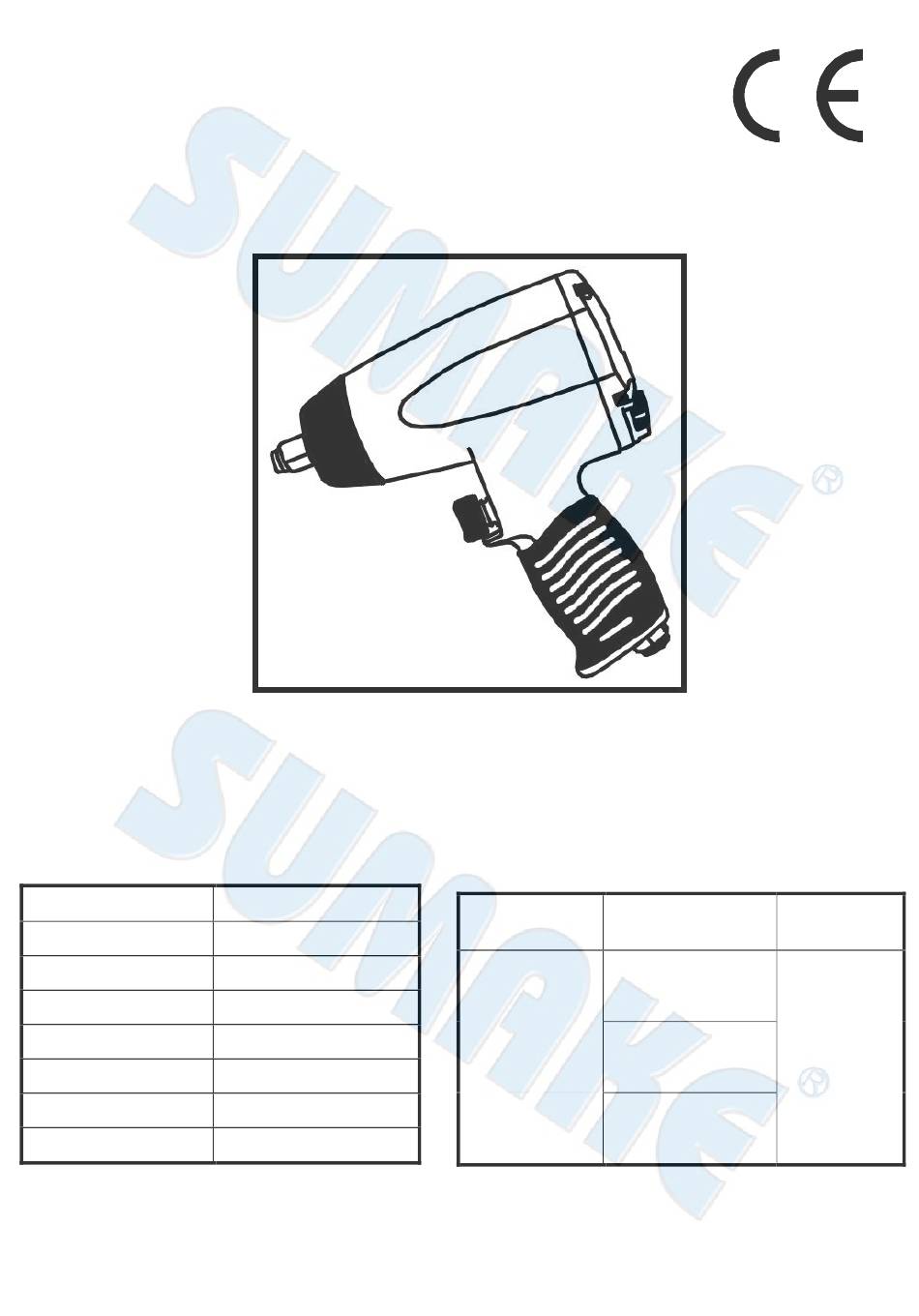

- Page 1 Air Hose (I.D.) dB(A) due to risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! ² K= 1.5 m/s K= 3dB Net Weight 4.48 lbs (2.2 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-M1001Y-S-1609F-HYF...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 1/2" AIR IMPACT WRENCH (ROCKING DOG)(YELLOW COATING) Model/ Serial No.： ST-M1001Y to which this declaration applies, complies with these normative documents: ... -
Page 3: Operation Method
Application: The impact wrench is designed to deliver high torque output with minimal exertion by the user, for the purpose of tightening or loosening nuts and bolts. Operation Method: Press the trigger for running and release to stop. Please be aware that the tool will stop rotation within few seconds. For safety reason, place the tool on the level plate or on hanger after use. -
Page 4: Parts List
ST-M1001 1/2" AIR IMPACT WRENCH(ROCKING DOG) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty M1001-01 Housing Assy. [Incl. 22, 35] M1001-24 O-Ring M1001-02 Anvil Bushing M1001-25 Locking Pin M1001-03 Socket Retainer M1001-26 Spring M1001-04 O-Ring M1001-27 Reverse Button M1001-05 Standard Anvil M1001-28... -
Page 5: Impact Wrench
IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd. - Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
-
Page 8: Risk Of Injury
General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
