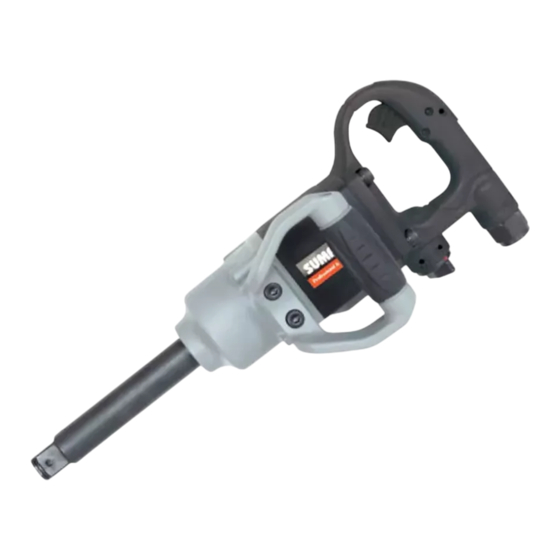

1" sq. dr. super duty air impact wrench (twin-hammer)

Advertisement

Quick Links

SUMAKE
1" Sq. Dr. Super Duty Air Impact Wrench

Specification:

Free Speed
Capacity Bolt Size
Max. Torque
Working Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Twin-Hammer)
ST-5830
5,000 r/min
1-27/64" (M36)
2530 ft-lb (3430 N-m)
2000 ft-lb (2712 N-m)
25 CFM (708 L/min)
13-7/10" (347 mm)
1/2" (13 mm)
3/4" (19 mm)
90 psi (6.3 bar)
16.31 lbs (7.4 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
Load:
14.5 m/s²
Sound power level
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
load: 104 dB(A)
protector at
environment
noise level > 80
load: 115 dB(A)
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-5830-S-1711E-01F
Remark
wear ear
hearing!
