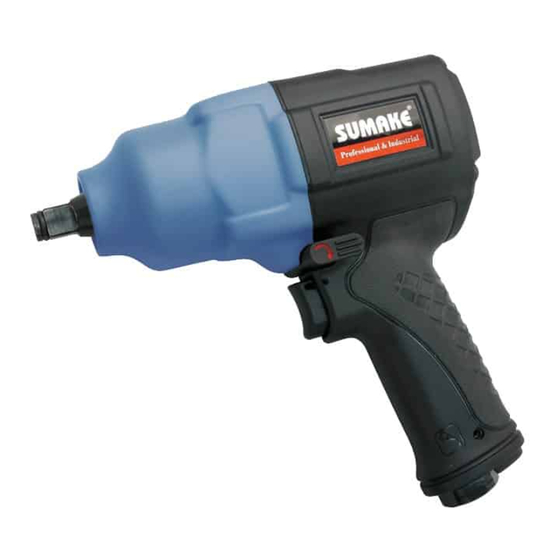

1/2" Sq. Dr. Super Duty Air Impact Wrench
W/ 2" Anvil (Limit Forward Working Torque)
Specification:
Forward Free Speed
Max. Torque (Forward)
Torque Range (Forward)
Reverse Free Speed
Max Torque (Reverse)
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
-Composite Housing-
ST-C555T-2
6,500 r/min
150 ft-lb (203 N-m)
100~150ft-lb
(136~203Nm)
8,000 r/min
900ft-lb(1220Nm)
17 CFM (480 L/min)
7.8" (197 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
5.07 lbs (2.3 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
No Load:
8.1 m/s²
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Please always
No load: 96 dB(A)
Sound power level
No load: 107 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-C555T-2-S-2205A-01F
Remark
wear ear
protector at
environment
hearing!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-C555T-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake ST-C555T-2

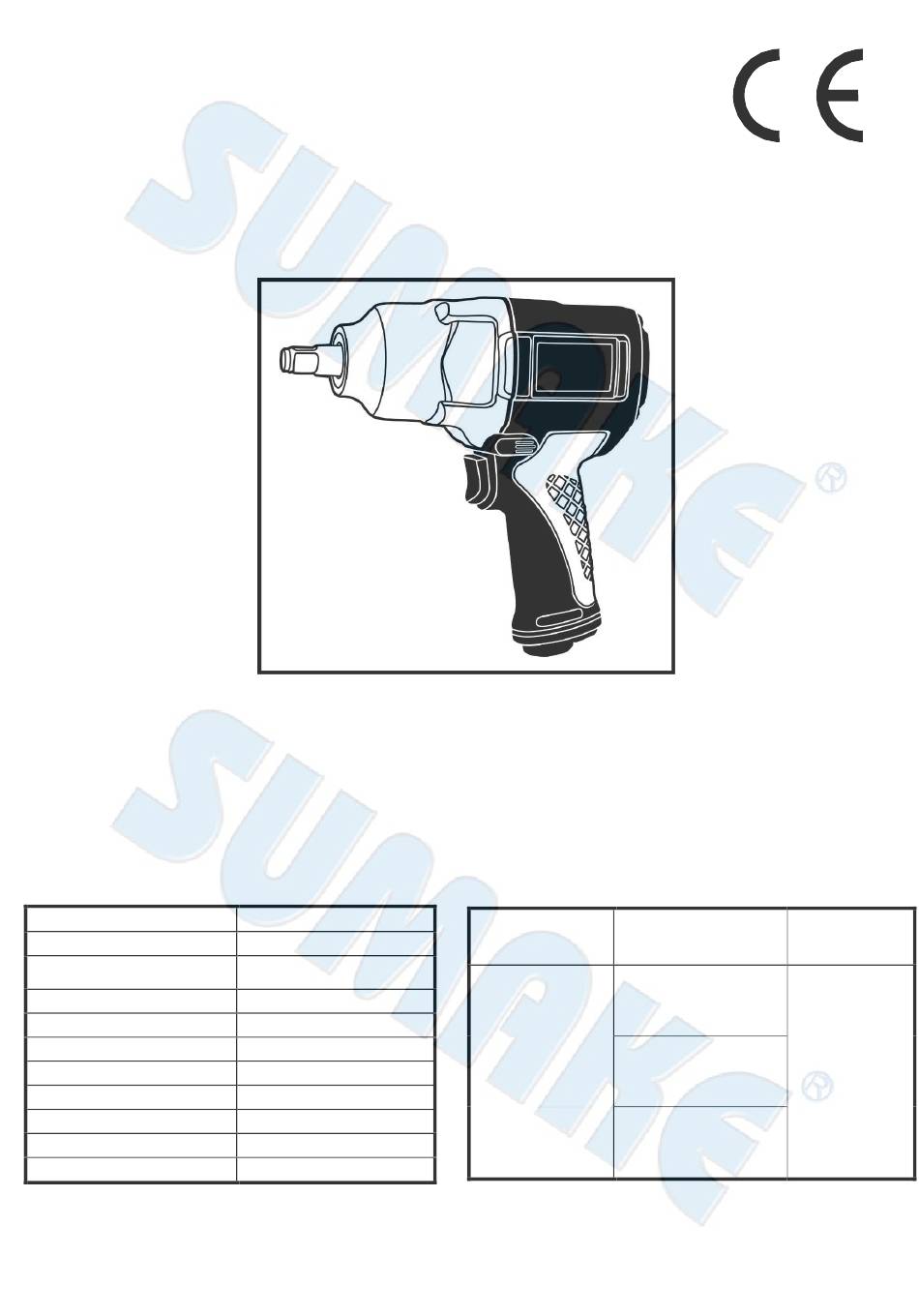

  • Page 1 3/8” (10 mm) Air Hose (I.D.) risk of impaired Uncertainty Uncertainty hearing! Air Pressure 90 psi (6.3 bar) K= 1.5 m/s ² K= 3dB Net Weight 5.07 lbs (2.3 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-C555T-2-S-2205A-01F...
  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: 1/2" SQ. DR. SUPER DUTY AIR IMPACT WRENCH, W/ 2" ANVIL (LIMIT FORWARD WORKING TORQUE) -COMPOSITE HOUSING- Model/ Serial No.:ST-C555T-2...
  • Page 3: Operation Method

    Application: The impact wrench is designed to deliver high torque output with minimal exertion by the user, for the purpose of tightening or loosening nuts and bolts. Operation Method: Press the trigger for running and release to stop. Please be aware that the tool will stop rotation within few seconds. For safety reason, place the tool on the level plate or on hanger after use.
  • Page 4: Parts List

    ST-C555T(-2) 1/2" SQ. DR. SUPER DUTY AIR IMPACT WRENCH (LIMIT FORWARD WORKING TORQUE) (W/2" ANVIL) -COMPOSIT PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty C555-01 Motor Housing C555-30 Spring Pin C555-02 Reverse Valve C555-31 Front End Plate C555-03 O-Ring C555-32 Ball Bearing...
  • Page 5: Impact Wrench

    IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
  • Page 8: Risk Of Injury

    General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
