Sumake ST-5544 Quick Start Manual

1/2" air impact wrench (twin hammer)
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
SUMAKE

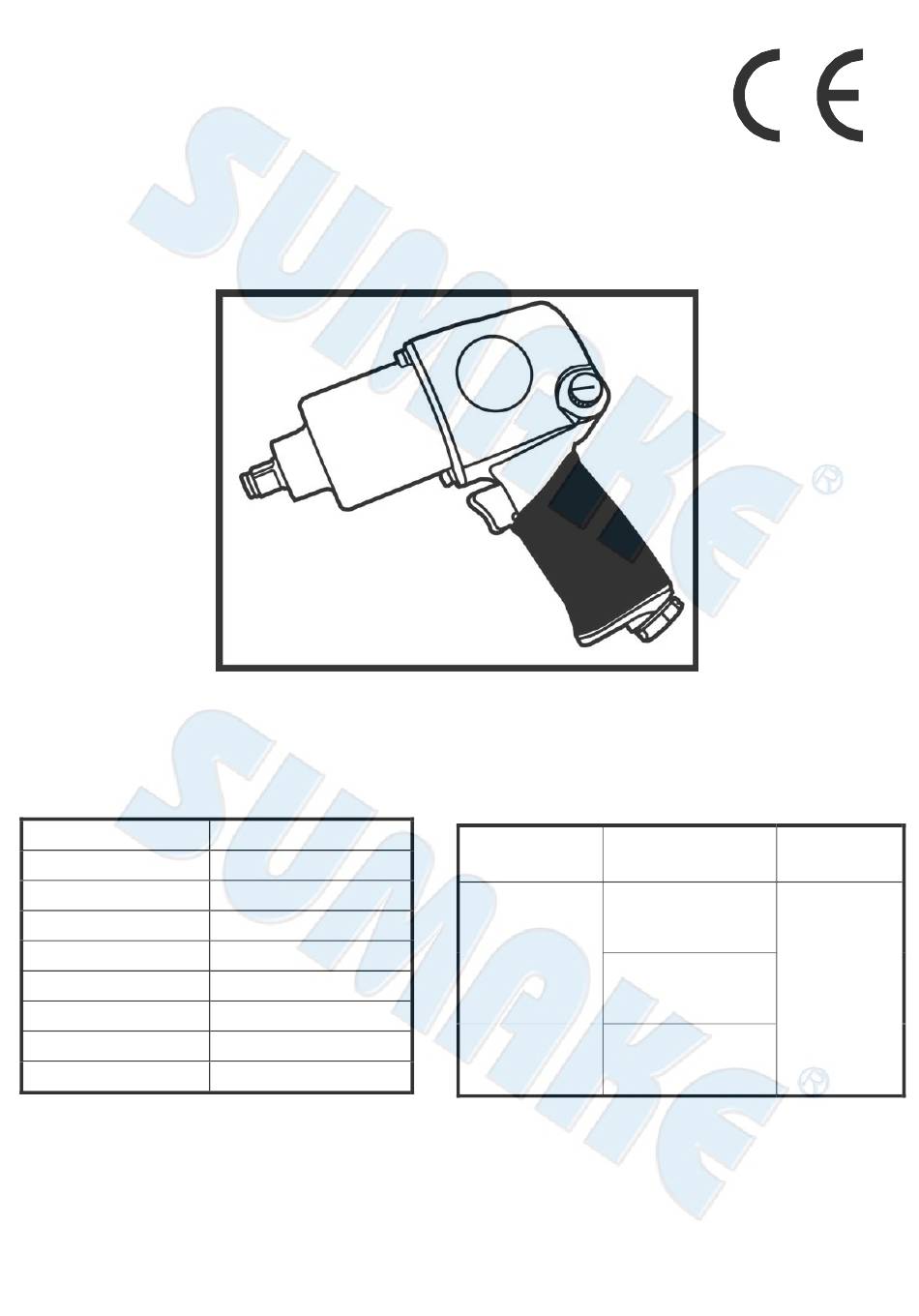

1/2" Air Impact Wrench (Twin Hammer)
Specification:
Free Speed
Capacity Bolt Size
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-5544
8,000 r/min
5/8" (M16)
600 ft-lb (813 N-m)
17 CFM (480 L/min)
7-1/8" (180 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
5.58 lbs (2.56 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
No load: 97.93 dB(A)
No Load:
6.74 m/s²
Sound power level
No load: 108.9 dB(A)
Uncertainty
K= 1.5 m/s
²
Noise
Remark
EN ISO 15744
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
hearing!
K= 3dB
ST-5544-S-1311G-01F
