Sumake ST-4534W Manual

3/8" sq. air angle impact wrench (two hammer)
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
SUMAKE

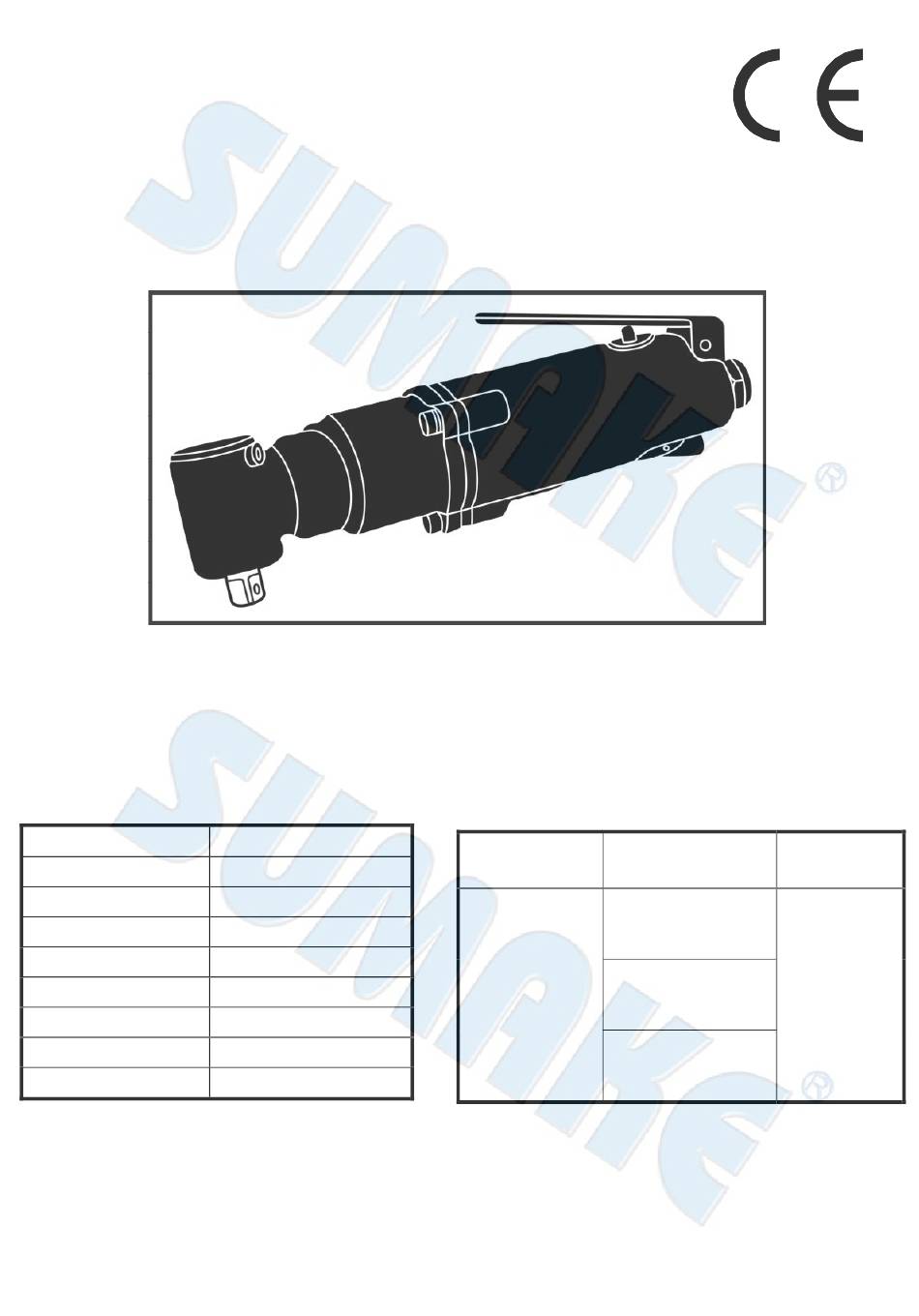

3/8" Sq. Air Angle Impact Wrench
Specification:
Free Speed
Capacity Bolt Size
Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Two Hammer)
ST-4534W
8,000 r/min
6 ~ 8 mm
42 ft-lb (57 N-m)
5.6 CFM (160 L/min)
8.54" (217 mm)
1/4" (6.35 mm)
1/4" (6.35 mm)
90 psi (6.3 bar)
2.86 lbs (1.3 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
No Load:
3.47 m/s²
Sound power level
load: 101.5 dB(A)
Uncertainty
²
K= 1.5 m/s
Noise
ISO 15744
Please always
load: 90.5 dB(A)
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-4534W-S-1211A-W3F
Remark
wear ear
hearing!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-4534W and is the answer not in the manual?

Questions and answers

Related Manuals for Sumake ST-4534W

Summary of Contents for Sumake ST-4534W

  • Page 1 Air Hose (I.D.) 1/4” (6.35 mm) risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! ² K= 1.5 m/s K= 3dB Net Weight 2.86 lbs (1.3 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-4534W-S-1211A-W3F...

  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：3/8" SQ. AIR ANGLE IMPACT WRENCH (TWO HAMMER) Model/ Serial No.：ST-4534W to which this declaration applies, complies with these normative documents: ...
  • Page 3 Sumake is a manufacturer and exporter of air largest torque output. tools since established. We have devote all our 1. The power toll shall not be used in potentially Tool 3.3 Rotating Direction...

  • Page 4: Parts List

    Q'ty Parts No. Description Q'ty 4534-01 Bearing Cap 4534-32 Throttle Lever 4534-02 Ball Bearing 4534-33 Spring Pin 4534W-03 Guide Rod (38mm) [ST-4534W] 4534-34 Hanger 4534-04 Distance Piece 4534-35 Inlet Bushing 4534W-05 3/8" Sq. Anvil [ST-4534W] 4534-36 Spring Pin 4534-06 Washer...

  • Page 5: Impact Wrench

    IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd.
  • Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.

  • Page 8: Risk Of Injury

    General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
