Koldwave 7KK30 Owner's Manual

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in
personal injury and / or property damage! Retain instructions for future reference.
Portable Air Conditioners
Descripti on
KOLDWAVE Portable Air Conditi oners feature spot
cooling for large areas where cooling of the enti re area is
not practi cal. A dedicated spot cooling thermostat controls
the unit in this applicati on.
These air conditi oners can also be used in smaller areas for
room cooling. A control panel provides ease of use and
contains a self-diagnosti c functi on and display, showing
operating modes, room and set temperatures, and faults. If
an abnormal operation occurs, a visual display of the fault
is shown. Caster wheels are included for easy
portability. Suitable applicati ons include: a factory or work
place, industrial kitchen, computer room, emergency
cooling, etc.
Power Supply Ph-
Model No.
Single Phase,
7KK30
230V, 60Hz
Model No. Nema Plug
7KK30
Weight (Net/Gross)
Model No.
244.7 / 279.6lbs.
7KK30
(111 / 126.8 kg)
Cooling Capacity
V-Hz
29,000
Power Cord Gauge
6-20p
Condensate tank
Lbs (kg) Gallons (Liters)
3.96 (15)
Power Consump-
Btu/h ti on Watt s
3,410
Power Cord
AWG Length ft
12
No. of Cool Air
Outlets Pcs
7KK30

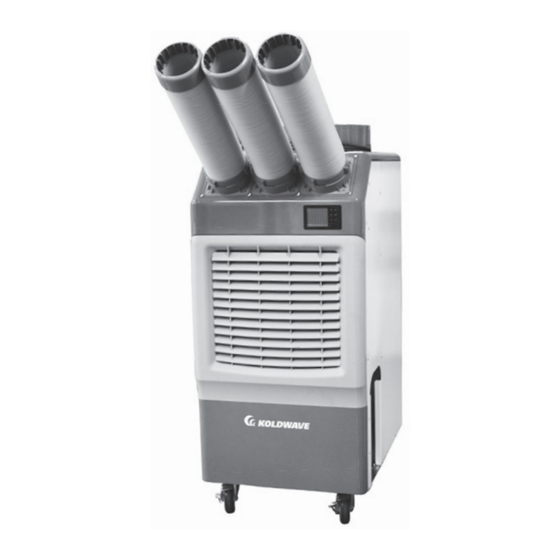

Figure 1
Rated Current
Amps
15.5 A
Dimensions W x D x H - in.
22.1 x 29.5 x 47.2
10
(560 x 750 x 1200)
Ambient temperature range
3 64~113 (18~45)
7KK30-IOM-1
EER Btu/
Wh
8.5
(mm)
°F (°C)
