Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.

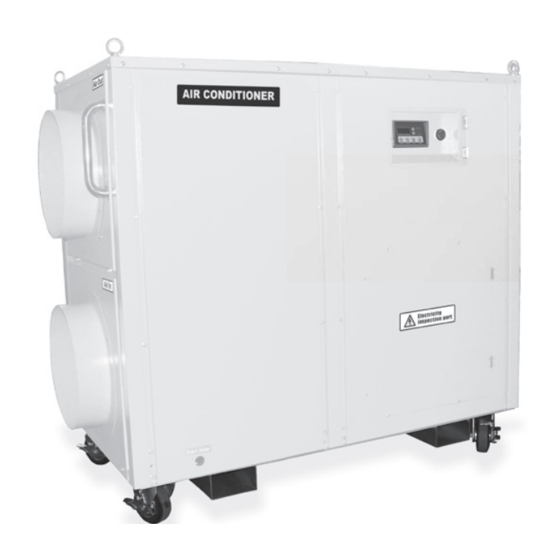

High Capacity Air Conditioner
(For Indoor & Outdoor)
Descripti on
Koldwave Portable Air Conditi oners are specialized for
"SPOT COOLING" where central cooling is impracti cal.
Koldwave air conditi oners can also be used in enclosed areas
just like conventi onal air conditi oners. Simple digital controller
and self-diagnosti c functi ons allow users to easily operate the
unit. Built-in Caster wheels enable users to move the unit
without any hassle.
Koldwave Portable Air Conditi oner, anywhere, everywhere.
Plug-and-Go!
Unpacking
Aft er unpacking the unit, carefully inspect unit for any damage that may have occurred during transit.
Check for any loose, missing, or damaged parts.
Specifi cati ons
Cooling Capacity
Power Supply - V/P/Hz
Dimensions
Supply Duct Dia Connection
Return Duct Dia Connection
Weight
Amp Draw
Air Filter Material
Refrigerant
Operating Temp
Condensate
Typical Cooling Area
Model
Evaporator
Condenser
Evaporator
6HK60
60,000 Btu/h
230-1-60
29.5" W x 62.1" D x 58.1" H
16"
20"
16"
661 lbs
32 A
Vinyl Chloride
R-410a
64-113 °F
Drain
1,830 sq. ft
6HK60-IOM-1
K6HK60
Figure 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6HK60-IOM-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Koldwave 6HK60-IOM-1

Summary of Contents for Koldwave 6HK60-IOM-1

  • Page 1 Koldwave Portable Air Conditi oners are specialized for “SPOT COOLING” where central cooling is impracti cal. Koldwave air conditi oners can also be used in enclosed areas just like conventi onal air conditi oners. Simple digital controller and self-diagnosti c functi ons allow users to easily operate the unit.

  • Page 2: General Safety Information

    6HK60 Owner’s Manual Specifications (Continued) Evaporator(Cool) Air Flow Model No. Refrigerant Type / oz(g) (CFM) For a compressor: K6HK60 1998 R-410, 56.4oz (1600g) Total: 102.8oz (3200g) Compressor overload protector, Anti-freezing thermister, Automatic restart (Power interruption), Safety Devices Compressor time delay program, High pressure switch Temperature control, Self-diagnostic function, Features...
  • Page 3 6HK60 Owner’s Manual DO NOT operate the unit in explosive or flammable environments. 14. DO NOT unplug to turn off the unit. Always use the power switch to start and to stop the unit. 15. Always turn off the unit and unplug it before cleaning, moving or performing maintenance. 16.
  • Page 4 6HK60 Owner’s Manual Assembly COMPONENT PARTS Controls Hot Air Exhaust Emergency Stop Figure 3 Handle Controls Electrical Panel Top Cover I BOLT Cold Air Exhaust Filter Cold Air Inlet Filter Condensate outlet Cold Air Inlet Air Inlet Figure 2 Caster Front and Right Side View Figure 4 Not in operation...

  • Page 5: Duct Connections

    6HK60 Owner’s Manual DUCT CONNECTIONS Cool Air Duct (OUT) connection The Cool Air Ducts (OUT) are labeled "AIR OUT". The diameter of duct is 15in. the Connect the flexible air duct as follows: 1. Attach a flexible duct to the duct collar. Use a clamp or any appropriate apparatus around the collar to prevent any air leakage.

  • Page 6: Installation

    6HK60 Owner’s Manual Installation Do not use the unit in explosive environments or in areas where flammable gas leakage may occur. Do not use the unit in areas where it will be exposed to rain or water. Do not use the unit in a corrosive atmosphere. Do not use the unit below 64°F (18°C) or above ~ 113°F (45°C).

  • Page 7: Operation

    6HK60 Owner’s Manual Operation CONTROL PANEL Figure 10 1. POWER BUTTON : Turns on/off the unit when the button is pressed for 1 second. 2. BLOWER BUTTON : Adjusts the fan speed from (Low) to (High) when the button is pressed for 1 second. NOTE: Some models only have one fan speed 3.
  • Page 8 6HK60 Owner’s Manual Operation CONTROL PANEL 7. CURRENT TEMP : Displays ambient temperature (In ROOM/COOL mode only) / Displays outlet (cool air) temperature during normal operations (In SPOT/COOL mode only). In order to change °C to °F, press BLOWER and COOL buttons together for 2 seconds. F will blink 2 times and Figure will change to °F.

  • Page 9: Maintenance

    6HK60 Owner’s Manual Maintenance FILTER CLEANING (See Figures 11 and 12) 1. Unscrew 6 bolts on the front filter guard. 2. Slide filter up and use a vacuum cleaner to remove the dust from the filter. 3. If the filter is heavily covered with dust and dirt, use warm water and mild soap or neutral detergent to wash the filter.

  • Page 10: Self Diagnostic Codes

    6HK60 Owner’s Manual Maintenance (Continued) – To ensure your product is covered by warranty, the complete faulty product along with your original purchase receipt must be provided at the place of purchase. Product Portable Air Conditioner Customer: Please read and keep this Model No.
  • Page 11 6HK60 Owner’s Manual NOTE: The alarm code will be displayed on CURRENT TEMP display SELF-DIAGNOSTIC ALARM CODES Alarm Display Problem Cause Solutions • Ambient • Do not use the air temperature is conditioner if ambient Abnormal too low temperature is below temperature 64°F (18°C) •...

  • Page 12: Wiring Diagram

    6HK60 Owner’s Manual Wiring Diagram PS (HP) Figure 14 - Circuit Wiring Diagram (6HK60)

  • Page 13: Troubleshooting

    6HK60 Owner’s Manual TROUBLESHOOTING Symptom Possible Cause(s) Solutions 1. Check the power supply 1. Reset the circuit breaker and restart the unit The unit is non- 2. Check whether the 2. Connect power cord operational power cord is connected 1. Clean the filter 1.

  • Page 14: Shipping List

    SHIPPING LIST • (1) High Capacity Air Conditioner • (1) Owner’s Manual OBTAINING SERVICE Koldwave High Capacity Air Conditioner If the requires Service: 1. Use the TROUBLESHOOTING section in this manual to eliminate obvious causes. 2. Verify there are no circuit breakers tripped.

  • Page 15: Limited Warranty

    Koldwave shall not be liable for any loss, damage, cost of repair or incidental or consequential damages of any kind in connection with the sale, use or repair of any Koldwave products. Any repairs made outside of Koldwave’s factory without its written consent will void this limited warranty.
  • Page 16 260 North Elm St. Westfield, MA 01085 Phone: 413-564-5520 www.koldwave.com...
