AIRMASTER
PORTABLE
AIR-COOLED
AIR CONDITIONER
INSTALLATION &
OPERATION
MANUAL
GENERAL DESCRIPTION ..................................... 1
PRODUCT DATA AND SPECIFICATIONS ......... 2, 3
UNIT DESCRIPTION
Standard Features ............................................... 4-7
Condensate Removal .............................................. 7
Refrigeration System Components ......................... 8
Safety Controls ........................................................ 8
General Airflow Patterns ......................................... 8
ACCESSORIES ................................................. 9-16
APPLICATIONS .............................................. 17, 18
SERVICE
Installation ............................................................. 18
Checkout of Operation .......................................... 19
Troubleshooting Guide ..................................... 19-22
Inspection and Repair ...................................... 23-26
Preventative Maintenance ..................................... 27
DIAGRAMS
Piping Schematic .................................................. 28
Wiring Diagram (Interconnecting and Logic) ... 29, 30
Unit Drawing .......................................................... 31
PARTS LIST .................................................... 23, 33
WARRANTY ......................................................... 34
260 NORTH ELM STREET • WESTFIELD, MA 01085 • Tel No. (413) 564-5520 • Fax No. (413) 564-5815
GENERAL DESCRIPTION

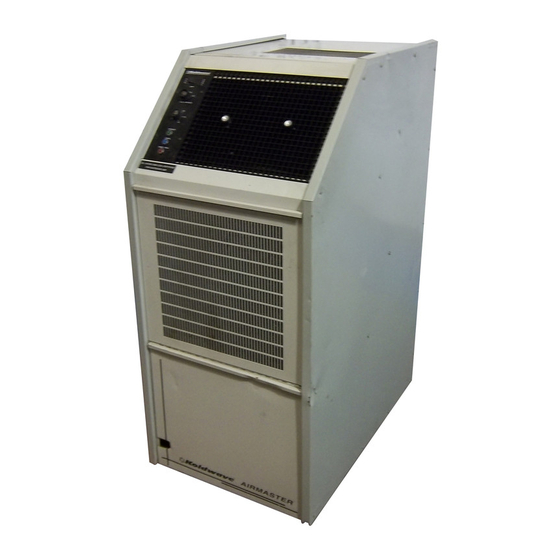

The Koldwave Airmaster is a portable, air-cooled air
conditioner/zone cooler suitable for indoor/outdoor use.
The Koldwave Airmaster can cool an entire area by
discharging air through its 16" x 12.5" grille. This self-
contained unit is also designed to direct cool air to
specific areas or objects through (optional) dual 6"
®
diameter snozzles
, or a single 10" diameter flexible
duct. This provides precision cooling for heat-sensitive
equipment, production processes and personnel.
The cord-connected Koldwave Airmaster is provided
with heavy-duty casters. The swivel-locking front
casters prevent sliding and stationary rear casters
provide handling ease for conventional relocation. This
unit is completely self-contained with the entire
refrigeration system, electrical components, condenser
and evaporator housed in one attractively-designed,
two-tone enamel finish metal cabinet.
NOMENCLATURE
3 A K 30 1 2 5
Series
Air Cooled
Koldwave
Capcity Indicator
(24 or 30 available)
3AKSM-3
42-9134 Rev. 4
50 Hz
208/230 Volts
Single Phase/60 HZ
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Koldwave AIRMASTER 3AK
Summary of Contents for Koldwave AIRMASTER 3AK
-
Page 1: Table Of Contents
Standard Features ..........4-7 conditioner/zone cooler suitable for indoor/outdoor use. Condensate Removal ..........7 The Koldwave Airmaster can cool an entire area by Refrigeration System Components ......8 discharging air through its 16" x 12.5" grille. This self- Safety Controls ............8 contained unit is also designed to direct cool air to General Airflow Patterns ......... -
Page 2: Product Data And Specifications
KOLDWAVE 3AK (AIRMASTER) 3AK2412 AIRMASTER PRODUCT DATA AND SPECIFICATIONS COOLING CAPACITY (BTU/HR) & EER Evaporator Fan Speed High Medium Conditions Total Sensible EER* Total Sensible EER* Total Sensible EER* 67°F DB/57°F WB (54% RH) 17,050 12,000 10.10 16,750 11,500 10.10... - Page 3 KOLDWAVE 3AK (AIRMASTER) 3AK3012 AIRMASTER PRODUCT DATA AND SPECIFICATIONS COOLING CAPACITY (BTU/HR) & EER Evaporator Fan Speed High Medium Conditions Total Sensible EER* Total Sensible EER* Total Sensible EER* 67°F DB/57°F WB (54% RH) 21,450 15,400 10.25 20,800 14,400 10.25...
-
Page 4: Standard Features
5-gallon condensate holding comfortable cooling. tank. SERVICEABILITY 5. Electrical Control Box 1. Control Panel The Koldwave Airmaster has removable panels to 2. Evaporator Coil 6. Compressor provide full service accessibility. The interior is divided 7. Condenser Coil 3. Evaporator Blower... - Page 5 CONDENSER DISCHARGE FLEXIBILITY behind the slotted return air intake door and return air The Koldwave Airmaster is designed to allow easy filter. The range of the thermostat is 60-95°F with a conversion of condenser discharge from top (standard) differential of ±...
- Page 6 KOLDWAVE 3AK (AIRMASTER) DISCHARGE AIR GRILL The Koldwave Airmaster is equipped with one 16 x 12.5 plastic grille, located in the upper front panel, to provide a cool and quiet air flow. AIR FILTERS The Koldwave Airmaster employs three, 1/2"...
-
Page 7: Condensate Removal
KOLDWAVE 3AK (AIRMASTER) CONDENSATE REMOVAL The Koldwave Airmaster incorporates a 5.0 gallon WATER DETECTION SYSTEM capacity, polyethylene, condensate drain tank, located An adjusting screw sets the desired water level in the in the lower front section of the unit. A high water level... -
Page 8: Refrigeration System Components
375 ±10 psig. In the event BLOWER MOTORS that the high pressure switch setting is exceeded, the The Koldwave Airmaster is equipped with a three- compressor and condenser fan can be restarted by speed PSC condenser motor and a four-speed PSC depressing the “reset”... -
Page 9: Accessories
KOLDWAVE 3AK (AIRMASTER) ACCESSORIES... - Page 10 KOLDWAVE 3AK (AIRMASTER) CEILING PANEL/DUCT KIT ASSEMBLY SA 040-D-0035 (OPTIONAL) A 12" diameter, flexible duct kit assembly extends up to 10 feet, to vent condenser air or to draw condenser return air from the ceiling when a condenser return air plenum is used.
- Page 11 4. Attach side panel to plenum with 17 dark grey Plenum Application screws provided separately in plenum carton. Koldwave Airmaster can be employed as a room air 5. To remove or replace the condenser filters, open conditioner to cool the entire enclosed space in which the filter access door, lift the filters up and pull out.
- Page 12 KOLDWAVE 3AK (AIRMASTER)
- Page 13 DISCHARGE AIR SNOZZLE KIT ASSEMBLY (OPTIONAL) SA 040-D-0034 Koldwave Airmaster is designed to direct cool air to specific areas without cooling an entire space when only certain objects within the area require cooling, thus providing precision cooling for heat-sensitive equipment, production processes and personnel.
- Page 14 KOLDWAVE 3AK (AIRMASTER) 10" DIAMETER EVAPORATOR DISCHARGE KIT ASSEMBLY SA 040-D-0037 (OPTIONAL) A single 10" diameter, 10' long wire-reinforced flexible air duct (part #040-C-0025) can be used with this kit for remote spot cooling. The duct is secured to a 16-gauge light grey painted galvanneal mounting plate by a clamp (part #SA019-A-0067).
- Page 15 KOLDWAVE 3AK (AIRMASTER) DUCT DESIGN Single 10" Diameter Evaporator Discharge Duct On application where one large cold air supply duct is Condenser Duct desired, a mounting plate with a single 10" diameter Should a longer, 12" diameter duct be needed on the mounting flange is available, which mounts just as the ®...
- Page 16 KOLDWAVE 3AK (AIRMASTER) CONDENSATE PUMP KIT SA 057-D-0048 (OPTIONAL) A condensate pump, capable of pumping against an 11 foot head, can be installed for positive removal of evaporator condensate. This kit is a convenience for those who do not wish to empty the five gallon condensate tank periodically, especially for units with permanent installation.
-
Page 17: Applications
With the addition of the flexible ducts to direct the cold Koldwave Airmaster is designed for maximum air and other accessories, Koldwave Airmaster can be versatility to withstand high ambient temperatures on placed almost anywhere floor space is a premium, both indoor and outdoor installations whether used for thus giving it multiple applications. -
Page 18: Installation
If any damage is evident, file a claim with the connector (load fitting). delivering carrier immediately. Koldwave Airmaster portable/spot cooler requires Electrical Requirements: Check the nameplate on the minimal installation. It merly plugs into a NEMA 6-20R back of the unit to make certain that the proper power receptacle and is immediately ready to operate. -
Page 19: Checkout Of Operation
10.30 performed only by a qualified refrigeration service 80°F DB/67°F WB 9.15 person. In service/troubleshooting, there is no substitute for a good understanding of the Koldwave 75°F DB/62°F WB 8.87 Airmaster modes of operation, control systems, 72°F DB/60°F WB 8.70 components and safety systems (see service 67°F DB/57°F WB... - Page 20 KOLDWAVE 3AK (AIRMASTER) TROUBLE SHOOTING GUIDE continued PROBLEM SYMPTOM POSSIBLE CAUSE REMEDY Unit does not Entire unit does not Power interruption. Green Check external power supply. operate. operate. power light should be off. Defective tank full unit cut- Check and replace.
