Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.

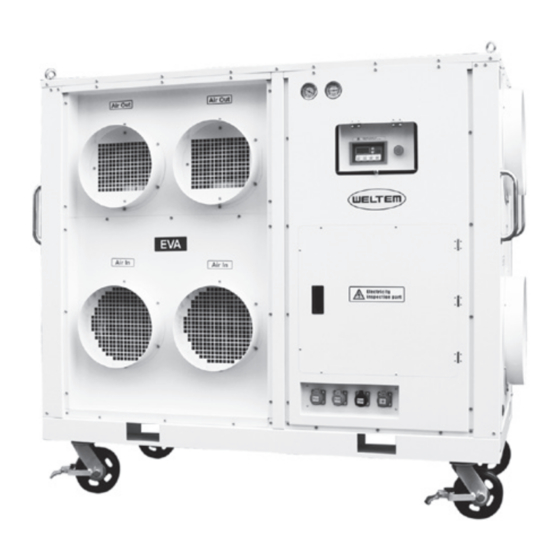

High Capacity Air Conditioner
(For Indoor & Outdoor)
Descripti on
KOLDWAVE Portable Air Conditi oners are specialized for
"SPOT COOLING" where central cooling is impracti cal.
KOLDWAVE air conditi oners can also be used in enclosed areas
just like conventi onal air conditi oners. Simple digital controller
and self-diagnosti c functi ons allow users to easily operate
the unit. Built-in Caster wheels enable users to move the
unit without any hassle. The unit can be installed in 5 minutes
and does not require any extra materials or certi fi ed technician
for installati on.
KOLDWAVE Portable Air Conditi oner, anywhere, everywhere.
Plug-and-Go!
Unpacking
Aft er unpacking the unit, carefully inspect unit for any damage that may have occurred during
transit. Check for any loose, missing, or damaged parts.
Specifi cati ons
Model No.
K6HK144BBA2ACA0
K6HK144BEA2ACA0
Model No.
K6HK144BBA2ACA0
K6HK144BEA2ACA0
Power Supply
Ph-V-Hz
3Phases -
220V - 60Hz
3Phases -
460V - 60Hz
Weight (Net / Gross)
Lbs(kg)
1168/1245lbs.
(530/565kg)
K6HK144BBA2ACA0 / K6HK144BEA2ACA0
Cooling Capacity
Btu/h
144,400
144,400
Ambient tempera-
ture range °F( °C)
64~113
(18~45)
K6HK144BBA2ACA0
K6HK144BEA2ACA0
Figure 1
Power Con-
Rated Current
sumpti on Watt s
18kW
21.5kW
Dimensions
W x D x H - in. (mm)
34.3 x 75 x 71
(870 x 1904 x 1801 )
Amps
57A
27A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Koldwave K6HK144BBA2ACA0
Summary of Contents for Koldwave K6HK144BBA2ACA0
- Page 1 KOLDWAVE Portable Air Conditi oners are specialized for “SPOT COOLING” where central cooling is impracti cal. KOLDWAVE air conditi oners can also be used in enclosed areas just like conventi onal air conditi oners. Simple digital controller and self-diagnosti c functi ons allow users to easily operate the unit.
- Page 2 K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual Specifications (Continued) Model No. Indoor Air Flow CFM Refrigerant Type / oz(g) K6HK144BBA2ACA0 4000 R-410A / 282(8000) K6HK144BEA2ACA0 4000 R-410A / 278.7(7900) Compressor overload protector, Anti-freezing thermister, Automatic restart (Power interruption), Safety Devices Compressor time delay program, High pressure...
-
Page 3: General Safety Information
K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual General Safety Information Please read this manual carefully for correct installation and usage. Please read all safeguards. 1. Transport and store the unit in an upright position only. Leave unit in an upright position for at least 3 hours before first use. - Page 4 K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual DO NOT operate a unit with a damaged power cord. 18. The filters must be used with the product at all times. When the filters are removed for cleaning, always ensure that the unit has been turned off and unplugged from the electrical outlet.
-
Page 5: Component Parts
K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual Assembly COMPONENT PARTS Controls Emergency Stop Figure 3 Controls Electrical Panel Cold Air Inlet I BOLT Cold Air Inlet Filter Figure 2 Front and Right Side View Handle Hot Air Exhaust Condensate outlet Figure 4... -
Page 6: Duct Connections
K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual DUCT CONNECTIONS Cool Air Out Duct(EVA) The Cool air duct connections are labeled “AIR OUT”. The connection size is 350Ø in diameter. Connect the flexible air ducting as follows: 1. Attach the flexible air ducting to the unit’s duct collars making sure that air will not leak past the connection collar by using appropriate round flexible ducting clamps. -
Page 7: Installation
K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual Installation WARNINGS REGARDING PROPER LOCATION FOR INSTALLATION Do not use the unit in explosive environments or in areas where flammable gas leakage may occur. Do not use the unit in areas where it will be exposed to rain or water. -
Page 8: Operation
K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual Operation CONTROL PANEL Figure 8 1. POWER BUTTON: Activates unit when POWER BUTTON is pressed. If POWER BUTTON is pressed during operation, unit stops. 2. BLOWER BUTTON: Indicates fan speed. (Not available for 3 phase model) 3. - Page 9 K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual Operation CONTROL PANEL 9. CURRENT TEMP: Displays ambient temperature (In ROOM/COOL mode only) / Displays outlet (cool air) temperature during normal operations (In SPOT/COOL mode only) In order to change ℃ to ℉, press BLOWER and COOL buttons together for 2 seconds.
-
Page 10: Maintenance
K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual Maintenance FILTER CLEANING (See Figures 11 and 12) 1. loosen up 6 bolts on the front filter guard. 2. Slide filter up and use a vacuum cleaner to remove the dust from the filter. 3. If the filter is heavily covered with dust and dirt, warm water and mild soap or neutral deter- gent may be used to wash the filter. -
Page 11: Self Diagnostic Codes
K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual Maintenance (Continued) – To ensure your product is covered by warranty, the complete faulty product along with your original purchase receipt must be provided at the place of purchase. Product Portable Air Conditioner Customer: Please read and keep this Model No. - Page 12 K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual SELF-DIAGNOSTIC ALARM CODES Alarm Code Possible Causes What To Do • High ambient • Ambient temperature temperature must be under 45°C(113°F) Compressor • Unstable power • Check the power supply overload supply • Contact a qualified •...
- Page 13 K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual SELF-DIAGNOSTIC ALARM CODES Alarm Code Possible Causes What To Do • Do not use the air conditioner if ambient Indoor heat Frost on heat temperature is lower than exchanger exchanger 18°C (64°F) temperature too low •...
-
Page 14: Wiring Diagram
K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual Wiring Diagram PS (HP) Figure 14 - Circuit Wiring Diagram (K6HK144BBA2ACA0) - Page 15 K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual Wiring Diagram PS (HP) Figure 14 - Circuit Wiring Diagram (K6HK144BEA2ACA0)
-
Page 16: Troubleshooting Chart
K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual Troubleshooting chart Symptom Possible Cause(s) Corrective Action 1. Check the power supply 1. Reset the circuit breaker and to verify that power is restart the unit available to the unit The unit doesn’t work 2. Verify that the power 2. - Page 17 K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual...
-
Page 18: Shipping List
Where and when the unit was purchased. Portable Air Conditioner d. All of the model information about your Koldwave e. Any information on the failure, including LED’s that may or may not be illuminated. f. A description of the protected equipment, including model numbers if possible. - Page 19 K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual For Koldwave warranty please visit http://koldwave.com/html/literature.asp...
- Page 20 K6HK144BBA2ACA0 / K6HK144BEA2ACA0 Owner’s Manual KOLDWAVE Sterling heating div-Farmville 3576 S.Fields st. Farmville, NC 27828-0809, USA PH: 252-753-1921 Fax: 252-753-1953 www.koldwave.com Printed in April, 2019...
