WPC-3000, WPC-4000, WPC-5000
6KK14BEA2AA00 / 6KK17BGA2AA00 / 6KK21BGA2AA00
Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.
Portable Air Conditioners
Descripti on
Koldwave Portable Air Conditi oners feature spot cooling for
large areas where cooling of the enti re area is not practi cal.
A dedicated spot cooling thermostat controls the unit in this
applicati on.
These air conditi oners can also be used in smaller areas for
room cooling. A control panel provides ease of use and con-
tains a self-diagnosti c functi on and display, showing operat-
ing modes, room and set temperatures, and faults.
If an abnormal operati on occurs, a visual display of the fault
is shown. Caster wheels are included for easy portability.
Suitable applicati ons include: a factory or work place, indus-
trial kitchen, computer room, emergency cooling, outdoor
event, etc.
Unpacking
Aft er unpacking the unit, carefully inspect unit for any damage that may have occurred during
transit. Check for any loose, missing, or damaged parts.
Specifi cati ons
Model No.
6KK14BEA2AA00
Single Phase, 115V, 60Hz
6KK17BGA2AA00
Single Phase, 115V, 60Hz
6KK21BGA2AA00 Single Phase, 208/230V, 60Hz
Model No.
6KK14BEA2AA00
6KK17BGA2AA00
6KK21BGA2AA00
Power Supply Ph-V-Hz
Nema Plug
5-15P
5-20P
6-15P
6KK14BEA2AA00 / 6KK17BGA2AA00 / 6KK21BGA2AA00
Cooling Capac-
Power Con-
ity Btu/h
sumpti on Watt s
13,200
16,800
21,200
Power Cord
Power Cord
Gauge AWG
Length ft
14
12
14
1
Owner's Manual
Owner's Manual
6KK14BEA2AA00, 6KK17BGA2AA00,
6KK21BGA2AA00

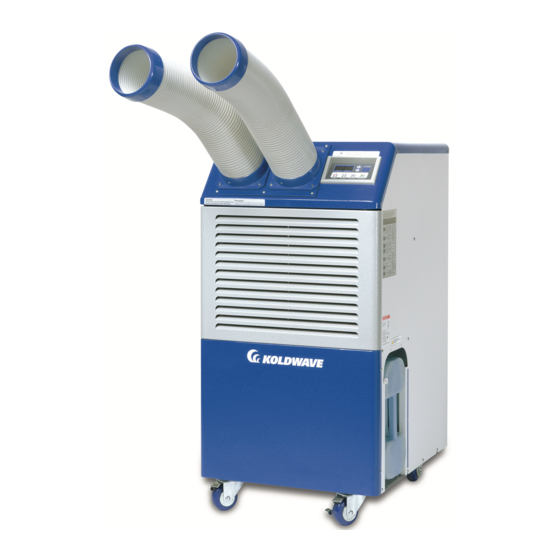

Figure 1
Rated Cur-
rent Amps
1300
11.9
1700
15.5
2400
11.3 / 10.9
Dimensions
W x D x H - in. (mm)
10
20.6 x 26.4 x 41
6
(523 x 671 x 1042)
10
EER Btu/
Wh
11.0
9.8
8.8
