UM3383
User manual
Motor position estimation with resolver board reading - STEVAL-TTM005A
Introduction
The
STEVAL-TTM005A
is a powerful tool that has been specifically designed for developing and testing automotive motor
control applications.
The board ensures accurate motion sensing based on rotor position estimation with resolver feedback.
This rotor position estimation allows to obtain an excellent control since zero speed, with the most advanced F.O.C. algorithms
reducing any torque and speed ripple on the motor.
The board is supplied by a 12 V dc input and 5 V and includes ST's latest high-precision, low-noise operational amplifiers and
an optimized excitation circuit that guarantees a reliable and accurate operation.
The excitation signal, generated by an external compatible control board (STEVAL-TTM004V1, STEVAL-TTM002V1, or the
STM32G474RE
connected with the Arduino connectors) is amplified by the
TSB582
able to excite the resolver coil.
The two phase shifted resolver outputs, for sine and cosine waves, are treated by a
TSB514
op amp and then converted into
digital signals by the microcontroller on the control board.
With its high accuracy and extended compatibility, the board is an essential tool for validating and testing any high precision
system for motion control sensing with high performance thanks to the rotary resolver and a best-in-class signal conditioning
circuitry.

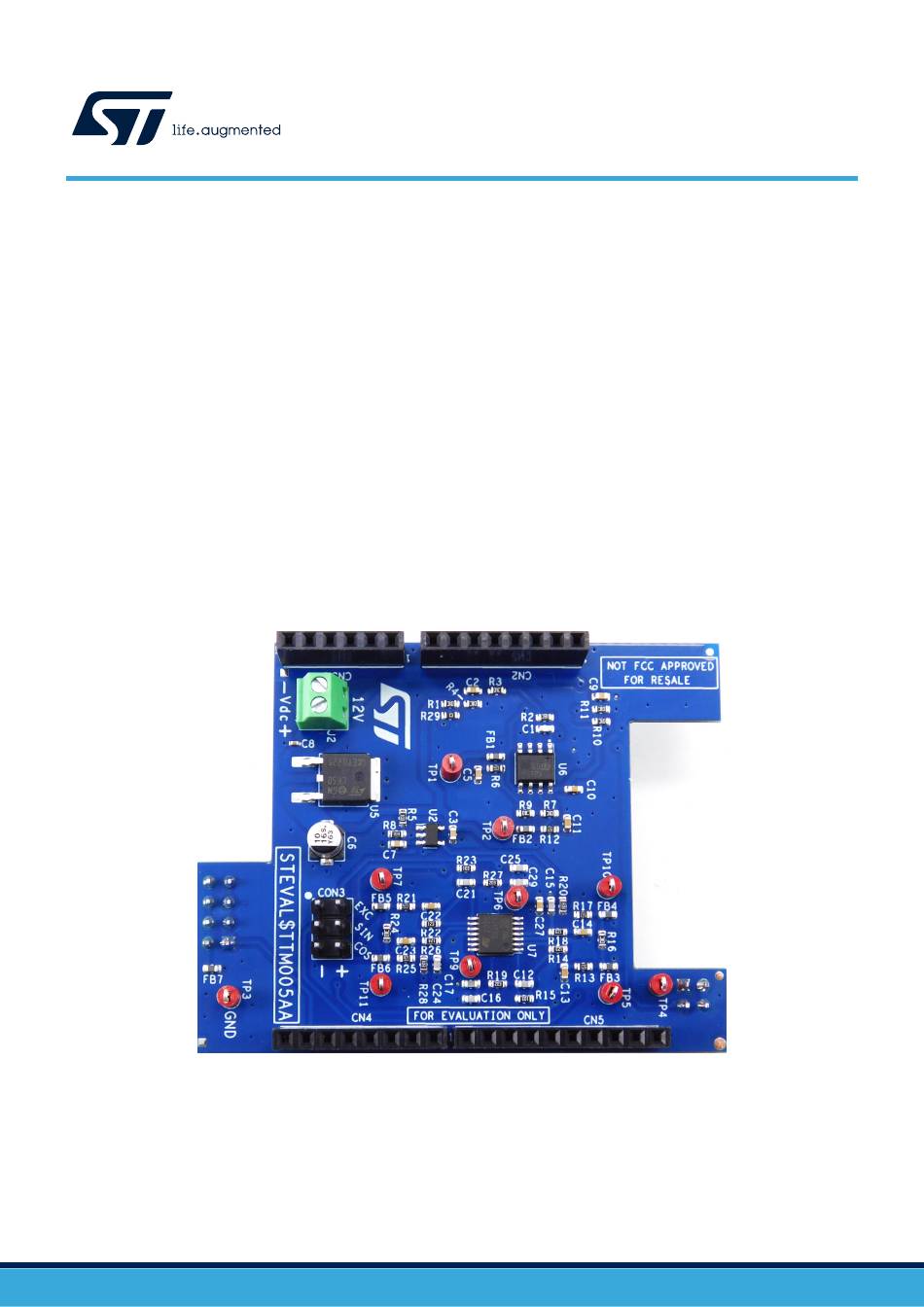

Figure 1.
STEVAL-TTM005A
Notice:
For dedicated assistance, please submit a request through our online support portal at www.st.com/support.
UM3383 - Rev 1 - July 2024
www.st.com
For further information contact your local STMicroelectronics sales office.
Advertisement
Table of Contents
Related Manuals for ST STEVAL-TTM005A
Summary of Contents for ST STEVAL-TTM005A
-
Page 1: Figure 1. Steval-Ttm005A
The board is supplied by a 12 V dc input and 5 V and includes ST’s latest high-precision, low-noise operational amplifiers and an optimized excitation circuit that guarantees a reliable and accurate operation. -
Page 2: Pinout
Pinout Figure 2. STEVAL-TTM005A evaluation board The resolver is a highly precise angular sensor commonly used in the automotive industry and in applications where it is essential to have a highly accurate rotor position. It operates based on a magnetic coupling between primary and secondary windings, which depends on the angular position. -
Page 3: Overview
Figure 3. STEVAL-TTM005A evaluation board To generate the proper sine wave excitation signals, the STEVAL-TTM005A must be connected to an external control board, which is able to generate a proper waveform. Here below some details on how to use the STEVAL TTM005A with one of the possible compatible boards dedicated for implementing the resolver reading and angle measurement. -
Page 4: Figure 5. Steval-Ttm005A Resolver Board
UM3383 Overview Figure 5. STEVAL-TTM005A resolver board Figure 6. Connector for resolver reading and processing UM3383 - Rev 1 page 4/16... -
Page 5: Figure 7. Main Connectors
UM3383 Overview Figure 7. Main connectors The full compatibility, by means of the Arduino connector, to the Nucleo board family, is guarantee by the X- CUBE-MMCSDK and STM32CubeMX architecture and easily configurable via the official STM32 PC tools. For more information on the source code check the STSW-TTM005 pack that is provided also of the workspace and project files for IAR Embedded Workbench ( V9.32.2) that can be used to compile and fine-tune the firmware UM3383 - Rev 1 page 5/16... -
Page 6: Safety And Operating Instructions
UM3383 Safety and operating instructions Safety and operating instructions General terms All operations involving transportation, installation, and use, as well as maintenance, has to be carried out by skilled technical personnel (national accident prevention rules must be observed). For the purpose of these basic safety instructions, "skilled technical personnel"... -
Page 7: Schematic Diagrams
UM3383 Schematic diagrams Schematic diagrams Figure 8. STEVAL-TTM005A circuit schematic This board has to be stacked on CON10 (analog input) and J 22 (DAC) by using, respectively, CON1 and CON2 CON1 TESTPOINT 120Ohms@100MHz RES_SIN RES_COS R9 10k E_RES_EXC- +3V3_C TESTPOINT... -
Page 8: Bill Of Materials
UM3383 Bill of materials Bill of materials Table 1. STEVAL-TTM005A bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code CAPACITOR 390pF, 0603 CERAMIC (1608 Metric) SMD 0603 0.1uF, 0603 CAP CER C2 C3 C7 C9 C10 Wurth (1608 Metric), 0.1UF 16V X7R... - Page 9 UM3383 Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code 15k, 0603 RES SMD 15K (1608 Metric), OHM 1% Yageo RC0603FR-0715KL 0.1W, 1/10W, 1/10W 0603 +/-1% 10k, 0603 CHIP R5 R8 R15 R20 (1608 Metric), RESISTOR R23 R28 0.1W, 1/10W, SMD 1% +/-0.1%...
-
Page 10: Board Versions
UM3383 Board versions Board versions Table 2. STEVAL-TTM005A versions Finished good Schematic diagrams Bill of materials STEVAL$TTM005AA schematic diagrams STEVAL$TTM005AA bill of materials STEVAL$TTM005AA 1. This code identifies the STEVAL-TTM005A expansion board first version. UM3383 - Rev 1 page 10/16... -
Page 11: Regulatory Compliance Information
UM3383 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) For evaluation only; not FCC approved for resale FCC NOTICE - This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product. -
Page 12: Revision History
UM3383 Revision history Table 3. Document revision history Date Revision Changes 05-Jul-2024 Initial release. UM3383 - Rev 1 page 12/16... -
Page 13: Table Of Contents
UM3383 Contents Contents Pinout ................2 Overview . -
Page 14: List Of Tables
STEVAL-TTM005A bill of materials........ -
Page 15: List Of Figures
STEVAL-TTM005A evaluation board ........ - Page 16 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
