ST STEVAL-IDZ3V1 Series User Manual

STEVAL-IDZ3xxV1 demonstration kit for the SPZB32W1x2.x
series of 802.15.4/ZigBee® radio communication modules
Introduction
The STEVAL-IDZ3xxV1 is a demonstration kit from the SPZB32W1x2.x series of
802.15.4/ZigBee
a 32-bit ARM
Accordingly, with the loaded protocol stack and application SW, the STM32W108CB
microcontroller is suitable for different types of wireless network scenarios.
Each STEVAL-IDZ3xxV1 kit enables the user to test the RF module performances, the
features of the protocol libraries defined for the microcontroller, and to prototype the target
802.15.4/ZigBee application. The kit includes a development board and a software library
that can be integrated into the structure of the packages available from the ST website for
the use of ZigBee PRO, Zigbee RF4CE and simplified MAC on the STM32W108CB
microcontroller. The STEVAL-IDZ3xxV HW integrates an RF module belonging to the
SPZB32W1x2.x series together with an extended number of external connectors that allow
the integration of peripherals as requested by the target application.
The STEVAL-IDZ3xxV1 kit can be used for the following purposes.
■
Demonstration: ZigBee PRO. By using the sensor/sink application example integrated in
the kit and two development boards, the user can easily set up a demo showing a few of
the basic features of the ZigBee protocol stack.
■
Development: by using external equipment consisting of a development environment for
the STM32W, the kit can be used to prototype and debug a target application.
This document describes the hardware and software components of the STEVAL-IDZ3xxV1
and provides instructions for setting up the hardware and loading and running the
application examples. This document is not meant to be a ZigBee tutorial and assumes that
the user is familiar with IAR development tools and the basic features of the STM32W108CB
microprocessor.

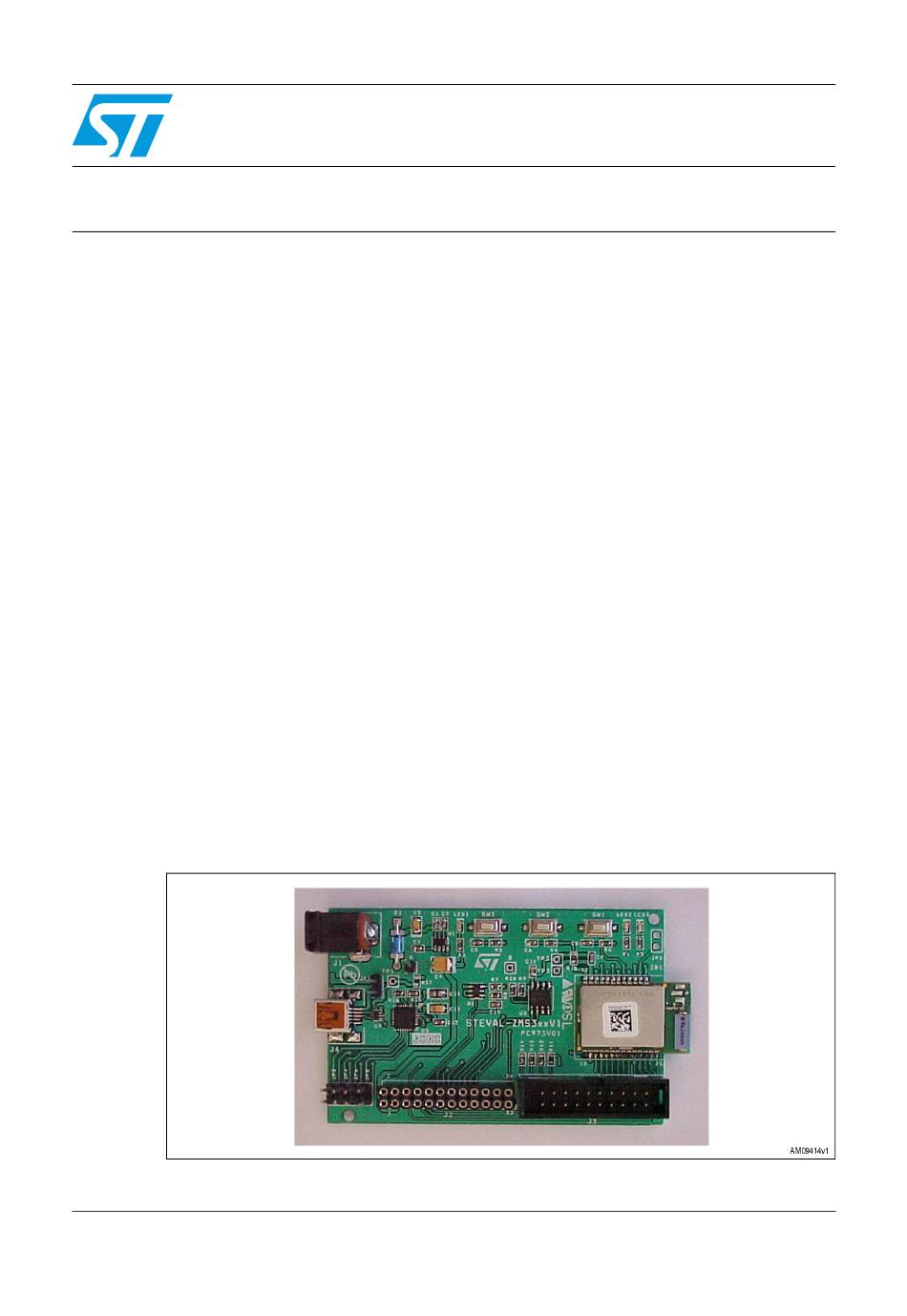

Figure 1.
December 2011
www.BDTIC.com/ST
®
RF modules based on the STM32W108CB microcontroller that integrates
®
Cortex™ M3 microprocessor and a 2.4 GHz, IEEE 802.15.4 radio.
STEVAL-IDZ301V1
Doc ID 022085 Rev 2
