Getting started with the STEVAL-A6983CV1 synchronous step-down switching
Introduction
The
STEVAL-A6983CV1
is based on A6983C synchronous step-down regulator which implements peak current mode
architecture in a VQFN package with internal compensation to minimize design complexity and size. The device is able to
deliver up to 3 A DC to the load.
The
STEVAL-A6983CV1
operates over an input voltage range of 6 V to 38 V to provide a regulated 5 V output at 400 KHz
switching frequency.
The board can be easily modified in order to obtain:
•
The preferred switching frequency, modifying the resistor connected to the FSW pin
•
The preferred power up threshold, modifying the resistors partition
•
The required output voltage, changing the feedback resistors partition
It is possible to use the
eDesignSuite
UM3308 - Rev 1 - February 2024
For further information contact your local STMicroelectronics sales office.
regulator evaluation board based on A6983C
software available on the ST website to configure A6983C to satisfy the specification.

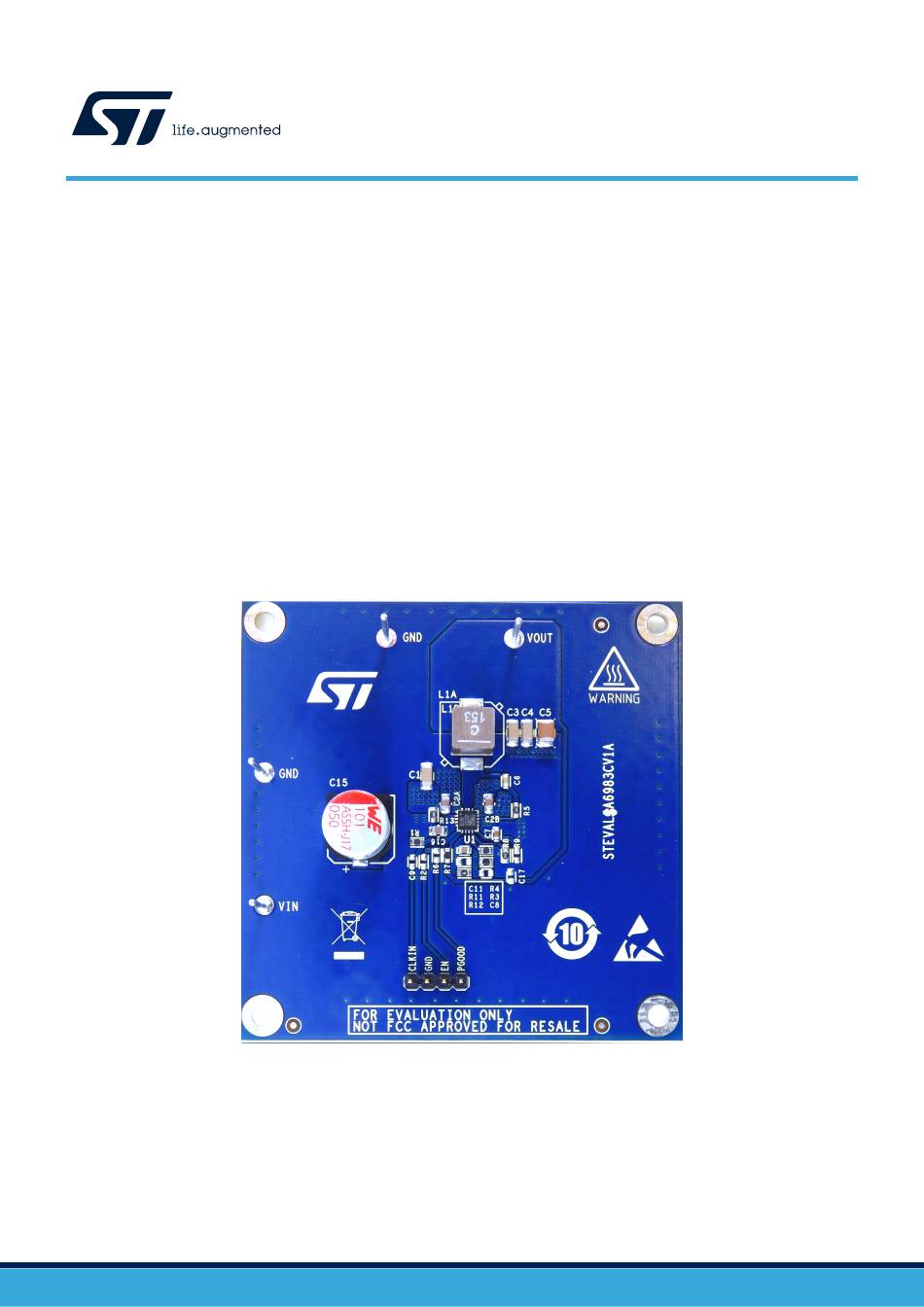

Figure 1.
STEVAL-A6983CV1 board
UM3308
User manual
www.st.com
