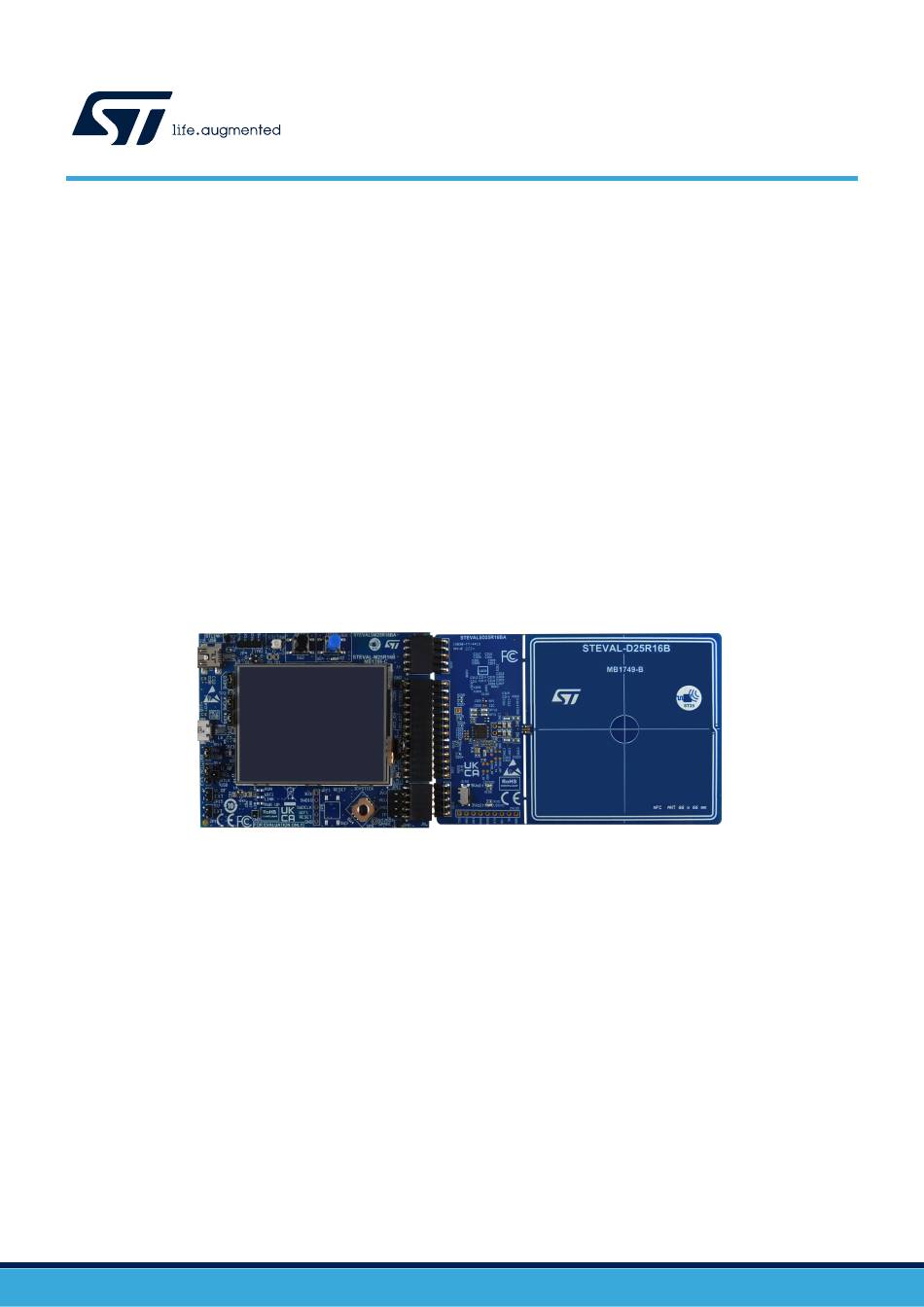

Getting started with the STEVAL-ST25R3916B kit based on the ST25R3916B
Introduction
The
STEVAL-25R3916B
is a ready-to-use kit based on the
contactless applications. The kit allows evaluating this device features and functionality in the reader/writer, peer to peer, and
card emulation modes.
The kit consists of:
•
a microprocessor main board (STEVAL-M25R16B), which includes hardware and software tools that enable using the
entire STM32 ecosystem. This board is powered through USB connectors
•
a reader expansion board (STEVAL-D25R16B), which embeds the
PCB with its tuning circuit
The communication link between the two boards is the SPI bus. The processor card provides the power. Specific data lines
complete the pin connector assignment shared between the cards.
Thanks to several demonstrations that can be performed, this kit helps the users develop and test their applications.
The kit is FCC certified, with FCC ID: YCPR3916BD1. It is also IC certified, with IC: 8976A-R3916BD1; PMN:
STEVAL-25R3916B; HVIN: STEVAL-25R3916B.
UM3033 - Rev 1 - February 2023
For further information contact your local STMicroelectronics sales office.
high-performance NFC universal device and EMVCo reader
ST25R3916B

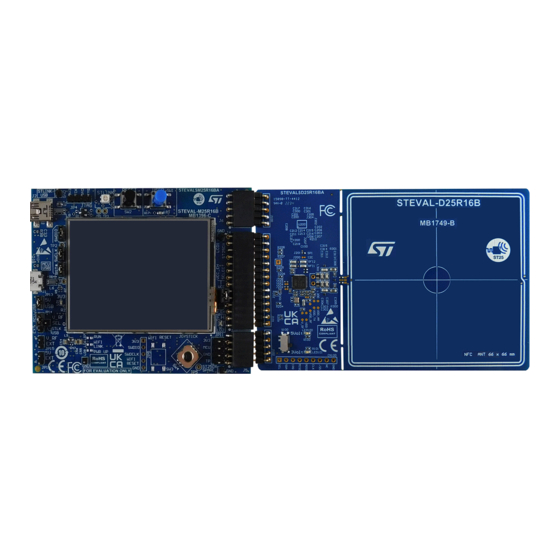

Figure 1.
STEVAL-25R3916B kit (top view)
high-performance NFC universal device for
ST25R3916B
device and an antenna etched on the
UM3033
User manual
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STEVAL-ST25R3916B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ST STEVAL-ST25R3916B

Summary of Contents for ST STEVAL-ST25R3916B

  • Page 1: Figure 1. Steval-25R3916B Kit (Top View)

    UM3033 User manual Getting started with the STEVAL-ST25R3916B kit based on the ST25R3916B high-performance NFC universal device and EMVCo reader Introduction STEVAL-25R3916B is a ready-to-use kit based on the ST25R3916B high-performance NFC universal device for contactless applications. The kit allows evaluating this device features and functionality in the reader/writer, peer to peer, and card emulation modes.

  • Page 2: Features

    UM3033 Features Features • NFC card reader IC: ST25R3916B • 13.56 MHz inductive antenna etched on PCB and associated tuning circuit • ISO18092 (NFCIP-1) active and passive initiator and target modes • NFC Forum NFC-A, NFC-B, NFC-F, and NFC-V reader •...

  • Page 3: Hardware Overview

    STM32 microcontrollers • push buttons (reset and user) • a mini-USB debug connector • a user-dedicated micro-USB connector • support for ST NFC tag Table 1. Powering options Reference Connector Position Description JP13 Closed 1-2...

  • Page 4: Figure 3. Steval-25R3916B Main Board Layout (Top View)

    UM3033 Main board hardware Figure 3. STEVAL-25R3916B main board layout (top view) Software bus (ST-LINK) ST-LINK activity LED Reset button User button User LED Extension connectors On-going tag detection indicator Extension connector - GPIO setting Joystick Wi-Fi reset button Wi-Fi software update Power 3.3 V LED...

  • Page 5: Jumper Default Configuration

    STEVAL-25R3916B main board layout (bottom view) STM32L476 MCU Test points for external connections Room for Wi-Fi module Regulator STM32 ST-LINK Room for Bluetooth® Low Energy module 2.1.1 Jumper default configuration STEVAL-25R3916B jumpers are configured by default to power the kit through the micro-USB connector.

  • Page 6: Software Development Configuration

    Software development configuration This section describes the software development configuration for the main board. It also describes the USB connection when using the embedded ST-LINK. The J1 micro-USB connector powers the STEVAL-25R3916B. The J2 mini-USB allows exchanging data between the board and the computer.

  • Page 7: Antenna And Matching Network Components

    UM3033 Expansion board hardware Figure 7. STEVAL-25R3916B expansion board layout (top view) RF front-end area ST25R3916B RF powering selection switch (3.3 or 5 V) Figure 8. STEVAL-25R3916B expansion board layout (bottom view) 2.2.1 Antenna and matching network components This board contains the matching network and the automatic antenna tuning capacitors based on varicap. UM3033 - Rev 1 page 7/34...

  • Page 8: Getting Started

    A safety extra-low voltage (SELV) limited power source to supply the unit through the USB port • A mini-USB cable to use the embedded ST-LINK and the STM32 ecosystem development How to use the kit in standalone mode Step 1.

  • Page 9: Schematic Diagrams

    Schematic diagrams Figure 9. STEVAL-ST25R3916B main board circuit schematic (1 of 10) U_STLink-Jtag STLink-Jtag.SchDoc U_STM32L476 RESET# STM32L476.SchDoc U_USB TMS/SWDIO TMS/SWDIO USB.SchDoc TDO/SWO TDO/SWO USB_RENUMn USB_RENUMn TCK_SWCLK TCK_SWCLK STL_USB_D_P STLK_UART_TX UART_TX STL_USB_D_N STLK_UART_RX UART_RX STL_USB_D_P STLK_MCO STLK_MCO STL_USB_D_N MCU_USB_D_P MCU_USB_D_P MCU_USB_D_N...

  • Page 10: Figure 10. Steval-St25R3916B Main Board Circuit Schematic (2 Of 10)

    Figure 10. STEVAL-ST25R3916B main board circuit schematic (2 of 10) VUSB_MCU JP13 742792641 BAT60JFILM HE14 VUSB_ST_LINK V_RF SELECT. V_RF JP14 BLM18EG471SN1D HE14 10uF/25V 10uF/25V 1uF/25V JP15 EXT. +5V IN HE14 VCC_EH SELECT. GND_USB GND_USB VCC_EH V_EH VUSB_ST_LINK BAT60JFILM JP16 HE14 BAT60JFILM EXT.

  • Page 11: Figure 11. Steval-St25R3916B Main Board Circuit Schematic (2 Of 10)

    Figure 11. STEVAL-ST25R3916B main board circuit schematic (2 of 10) VUSB_MCU JP13 742792641 BAT60JFILM HE14 VUSB_ST_LINK V_RF SELECT. V_RF JP14 BLM18EG471SN1D HE14 10uF/25V 10uF/25V 1uF/25V JP15 EXT. +5V IN HE14 VCC_EH SELECT. GND_USB GND_USB VCC_EH V_EH VUSB_ST_LINK BAT60JFILM JP16 HE14 BAT60JFILM EXT.

  • Page 12: Figure 12. Steval-St25R3916B Main Board Circuit Schematic (3 Of 10)

    Figure 12. STEVAL-ST25R3916B main board circuit schematic (3 of 10) VCC_EH 100nF VCC_EH 100nF VCC_EH 100nF 100nF 100nF FCM1608KF-601T03 R102 R101 R100 100nF 1uF/25V JOYSTICK JOY_SEL 100nF 1uF/25V VCC_EH JOY_LEFT LEFT JOY_RIGHT 100nF RIGHT JOY_UP JOY_DOWN DOWN VCC_EH MT-008A R103...

  • Page 13: Figure 13. Steval-St25R3916B Main Board Circuit Schematic (4 Of 10)

    Figure 13. STEVAL-ST25R3916B main board circuit schematic (4 of 10) 100nF 10uF/25V POT_IN 100nF V_EH 10uF/25V R105 R106 AD5112BCPZ10 R104 I_MEAS_OUT VLOGIC POT_I2C_SDA POT_I2C_SCL THPAD INTERNALLY FLOATING...

  • Page 14: Figure 14. Steval-St25R3916B Main Board Circuit Schematic (5 Of 10)

    Figure 14. STEVAL-ST25R3916B main board circuit schematic (5 of 10) 100nF R111 R112 100nF 100nF SB10 100nF R113 100nF T_NRST PA0/WKUP UART_TX PA2/USART2_TX PB2/BOOT1 USART2_RX PA3/USART2_RX PB3/JTDO LED_STLINK PTH/1.0mm T_JTCK 5/SPI1_SCK T_JTDO PA6/SPI1_MISO STM32F103CBT6 100R 100R PTH/1.0mmTP4 PA7/SPI1_MOSI STLK_MCO PA8/MCO...

  • Page 15: Figure 15. Steval-St25R3916B Main Board Circuit Schematic (6 Of 10)

    Figure 15. STEVAL-ST25R3916B main board circuit schematic (6 of 10) 4.7uF/25V 100nF LCD1 FRD240C48004-A-RT 220R NRST /RESET SPI MODE A-BKLGHT R710R K1-BKLGHT K2-BKLGHT R720R K3-BKLGHT K4-BKLGHT R770R STR2P3LLH6 R780R LCD_BKLGHT_MOS_GATE 0R NC...

  • Page 16: Figure 16. Steval-St25R3916B Main Board Circuit Schematic (7 Of 10)

    Figure 16. STEVAL-ST25R3916B main board circuit schematic (7 of 10) 10uF/25V 100nF SPWF01SA.11 NC SPW_SWDIO GPIO0 SPW_SWCLK GPIO1/PWM WF_RESET UART_RX RXD1 GPIO2 UART_TX TXD1 GPIO3 GPIO4 HE14/NC GPIO5 UART_CTS CTS1_DN GPIO6/WKUP/SLEEP_INH UART_RTS RTS1_DP GPIO7/STA/AP_SW GPIO8/ADC WF_RESET WF_RESET RESETn GPIO9 BOOT0...

  • Page 17: Figure 17. Steval-St25R3916B Main Board Circuit Schematic (8 Of 10)

    Figure 17. STEVAL-ST25R3916B main board circuit schematic (8 of 10) UART_TX UART_RX UART_CTSn UART_RTSn SSW-105-02-G-S-RA SPI_CSn SPI_CLK SPI_MISO SPI_MOSI V_EH I2C_SDA I2C_SCL GPIO_1_IRQ SPARE SSW-114-02-G-S-RA V_RF GPO_3/INT_3 MCU_CLK GPO_2/INT_2 SSW-105-02-G-S-RA...

  • Page 18: Figure 18. Steval-St25R3916B Main Board Circuit Schematic (9 Of 10)

    Figure 18. STEVAL-ST25R3916B main board circuit schematic (9 of 10) VUSB_ST_LINK 742792641 R3610R VBUS SHLD STL_USB_D_N MINI USB STL_USB_D_P 744232090 R3710R JTAG DEBUG 5075BMR-05-SM GND_USB R115 4.7nF R117 R122 USB_RENUMn 100R MMBT9013 R116 GND_USB R114 VUSB_MCU R510R SHLD VBUS MICRO USB...

  • Page 19: Figure 19. Steval-St25R3916B Main Board Circuit Schematic (10 Of 10)

    JP12 TSCR_I2C_SDA TSCR_SPI_MISO TSCR_I2C_SCL TSCR_SPI_CSn GPO_8/RESET TSCR_SPI_CLK TSCR_SPI_MOSI GPO_7/CS1 GPO_6/D/C GPO_4/BS1 GPO_5/BUSY CES-107-01-L-D Figure 20. STEVAL-ST25R3916B reader expansion board circuit schematic (1 of 3) J100 VBUS PWR Ok PWR Ok VBUS S100 SPI_IRQ I2C_SCL SPI/Power_Con I2C_SDA V_RF V_RF R100 R101...

  • Page 20: Figure 21. Steval-St25R3916B Reader Expansion Board Circuit Schematic (2 Of 3)

    Figure 21. STEVAL-ST25R3916B reader expansion board circuit schematic (2 of 3) ST25R3916 NFC Initiator / HF Reader Controller Interface P200 P201 AAT_A CSO_out TP200 U.FL-R-SMT-1 U.FL-R-SMT-1 V_RF RFI2 RFI1 SPI/Power_Con VDD_D J200 TP201 V_RF open J201 TP202 C200 C201 R201...

  • Page 21: Figure 22. Steval-St25R3916B Reader Expansion Board Circuit Schematic (3 Of 3)

    Figure 22. STEVAL-ST25R3916B reader expansion board circuit schematic (3 of 3) Antenna Circuit incl. EMI Filter and Matching C300 120pF_0603 RFI1 C301 C302 LXRW0YV201-059 AAT_series 10pF_0603 L300 R300 C303 RFO1 ANT2 J300 closed 0R 270nH C305 47pF_0603 220pF_0402 C306 C307...

  • Page 22: Bill Of Materials

    UM3033 Bill of materials Bill of materials Table 3. STEVAL-VOICE-UI bill of materials Item Q.ty Ref. Part/Value Description ManµFacturer Order code Table 4. STEV Not available for separate AL$M25R16B Main board sale Table 5. STEV Reader Not available for separate AL$D25R16B expansion sale...
  • Page 23 UM3033 Bill of materials Item Quantity Ref. Part/value Description Manufacturer Order code CONNECTOR SAMTEC TSW-104-07-G-S 1x4Pts CONNECTOR SAMTEC TSW-105-07-G-S NOT FITTED JP6, JP7, JP8, CONNECTOR SAMTEC TSW-101-07-G-S CONNECTOR JP11 SAMTEC TSW-104-07-G-D 2x4Pts JP12 CONNECTOR SAMTEC CES-107-01-L-D CONNECTOR JP14 SAMTEC TSW-1xx-07-G-S 1x3Pts &...
  • Page 24 UM3033 Bill of materials Item Quantity Ref. Part/value Description Manufacturer Order code R1, R3, R9, R12, R13, R14, R15, R20, R21, R23, R27, R41, R42, R46, R47, 0R 0402 RESISTOR R49, R50, R53, R54, R56, R71, R72, R77, R78, R86, R104, R113 R2, R110 510R ±1% 0402 RESISTOR...
  • Page 25 UM3033 Bill of materials Item Quantity Ref. Part/value Description Manufacturer Order code RESISTORNOT 4K7 ±1% 0402 FITTED R111 2K7 ±1% 0402 RESISTOR R116 36K ±1% 0402 RESISTOR SB1, SB2, SB3, SB4, SB5, SB6, SOLDER SB7, SB8, SB9, 0603 BRIDGE OPEN SB10, SB11, SIZE SB12, SB13,...

  • Page 26: Table 5. Reader Expansion Board Bill Of Materials

    UM3033 Bill of materials Item Quantity Ref. Part/value Description Manufacturer Order code NX3225GD-8MHZ-EXS00A- Y1, Y2 SMD CRYSTAL CG04874 SMD CRYSTAL NX3215SA 32.768KHZ Table 5. Reader expansion board bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code C100, C205, 2.2µF_0402_X5 C207, C212, Capacitors...
  • Page 27 UM3033 Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code P100, P101, Connectors Samtec SJ5303TRANS P102, P103 P200, P201, Connectors HIROSE(HRS) U.FL-R-SMT-1(10) P202, P203 30 V, 400 mA N- Q300 channel trench NEXPERIA NX3008NBK MOSFET R100 1k, 0402 Resistor Panasonic ERJ2GEJ102X...

  • Page 28: Kit Versions

    Kit versions Kit versions Table 6. STEVAL-ST25R3916B versions PCB version Schematic diagrams Bill of materials The evaluation kit with order code STEVAL-ST25R3916B STEVAL-ST25R3916B STEVAL-ST25R3916B bill of contains the STEVAL$M25R16BA main board plus the schematic diagrams materials STEVAL$D25R16BA reader expansion board 1.

  • Page 29: Regulatory Compliance Information

    UM3033 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 30: Revision History

    UM3033 Revision history Table 7. Document revision history Date Revision Changes 20-Feb-2023 Initial release. UM3033 - Rev 1 page 30/34...

  • Page 31: Table Of Contents

    UM3033 Contents Contents Features................2 Hardware overview .

  • Page 32: List Of Tables

    STEVAL-ST25R3916B versions........

  • Page 33: List Of Figures

    STEVAL-ST25R3916B main board circuit schematic (2 of 10)........
  • Page 34 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
