ST STEVAL-PCC010V1 Instructions Manual

ST802RT1A Ethernet PHY demonstration board with
Features
■
ST802RT1A Ethernet PHY demonstration
board:
– ST802RT1A fast Ethernet physical layer
transceiver
– On-board 3.3 V LDO regulator
– On-board 25 MHz crystal
– 2 jumpers for boot-strap configuration (MII
address, auto-negotiation, loopback, power
down, MII/RMII configuration)
– Several GND test points and jumpers for
power consumption measurement
– Connectors: 20-pin full pitch header
connector for debug purposes (compatible
with the STM32F107 controller board); 40-
pin connector compatible with Spirent
Communications SmartBits 200/2000
(SMB-200/ SMB-2000) analysis system
– RJ45 connector with embedded
transformer
– RoHS compliant
■ STM32F107 controller add-on board:
– STM32F107 connectivity line Cortex™-M3
based microcontroller with embedded
Ethernet MAC
– On-board 3.3 V LDO regulator
– On-board 25 MHz crystal
– Reset button, power LED, general-purpose
button and two LEDs
– Connectors: 20-pin full-pitch header
connector for debug purposes, compatible
with ST802RT1A demonstration board; 20-
pin JTAG connector
– Additional general-purpose 20-pin full pitch
header connector; USB device connector
(+5 V power supply)
– RoHS compliant
March 2010
For further information contact your local STMicroelectronics sales office.
www.BDTIC.com/ST
STEVAL-PCC010V1
STM32F107 controller add-on board
Description

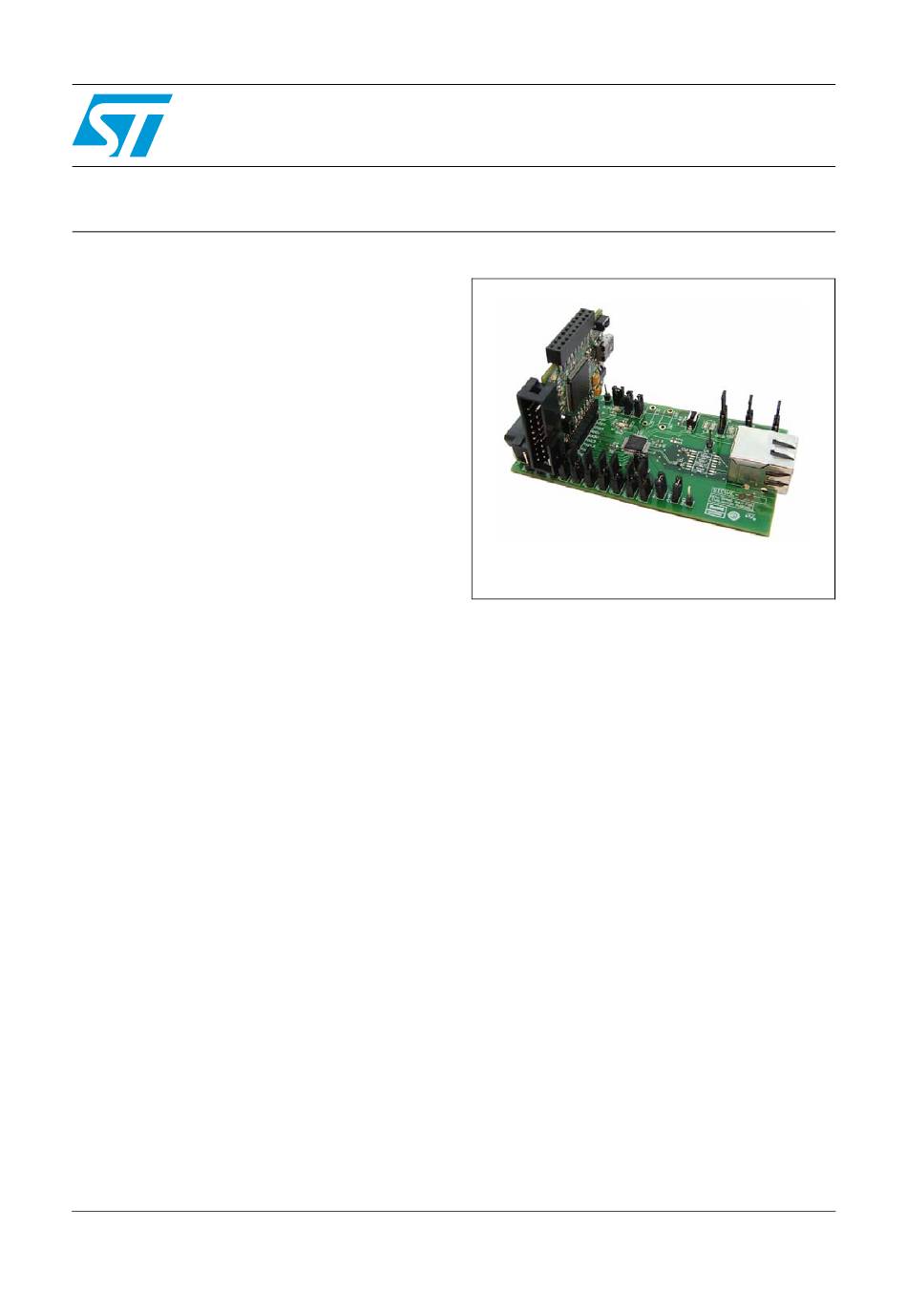

The STEVAL-PCC010V1 demonstration kit
consists of two boards: the ST802RT1A Ethernet
PHY demonstration board and the STM32F107
controller add-on board.
The ST802RT1A demonstration board is
designed as an evaluation platform for the
ST802RT1A device. It allows the user to easily
select the PHY boot options to evaluate the power
consumption of the chip, and to attach the device
to professional test equipment.
The STM32F107 controller board can extend the
ST802RT1A demonstration board with the
STM32F107 microcontroller and its embedded
MAC.
The system allows immediate evaluation of an
Internet appliance based on the embedded
microcontroller and Ethernet PHY.
By default, the controller board is pre-Flashed
with a web server application for demonstration
purposes.
Doc ID 17201 Rev 1
