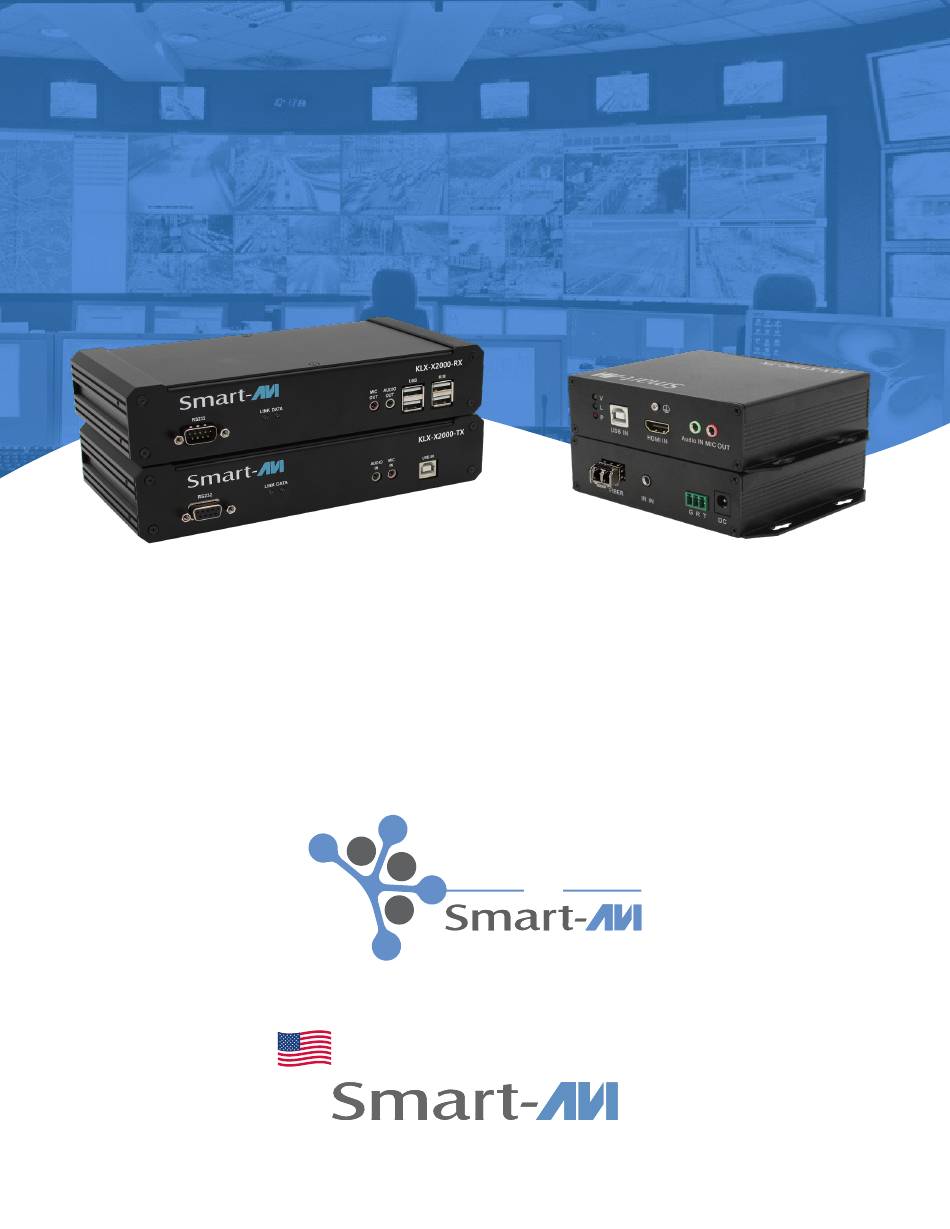

- Page 1 KLX-X series Advanced hdmi and displayport kvm extenders via catx and fiber USER MANUAL P2PKVM Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW TECHNICAL SPECIFICATIONS___________________________________________________________________________ WHAT’S IN THE BOX?_____________________________________________________________________________________ FRONT AND BACK________________________________________________________________________________________ INTRODUCTION___________________________________________________________________________________________ FEATURES__________________________________________________________________________________________________ APPLICATION_____________________________________________________________________________________________ INSTALLATION____________________________________________________________________________________________ USING RS232 PASS-THROUGH__________________________________________________________________________ AUDIO INPUT AND OUTPUT_____________________________________________________________________________ TROUBLESHOOTING_____________________________________________________________________________________ TECHNICAL SUPPORT____________________________________________________________________________________ LIMITED WARRANTY STATEMENT______________________________________________________________________ P2PKVM Advanced HDMI and DisplayPort KVM Extenders via CATx and Fiber... -
Page 3: Technical Specifications
Technical Specifications VIDEO HDMI (X100, X1000, X2000), Format DisplayPort (X150, X1500, X2500) Max Resolution 3840x2160 @ 30Hz Input Cable Length Up to 20 ft. Output Cable Length Up to 20 ft. ETHERNET Format RJ45 and/or SFP Fiber Supported Cable Length 300ft/100meters via CATx or 10km via Fiber Signal Type (2) HID KM Ports, (2) USB 2.0 Ports... -
Page 4: What's In The Box
What’s in the box? PART NO. Q-TY DESCRIPTION KLX-X Transmitter Advanced HDMI/DP KVM Transmitter via CATx/Fiber KLX-X Receiver Advanced HDMI/DP KVM Receiver via CATx/Fiber PS5VDC2A 5V DC, 2A (minimum) power adapter with center-pin positive polarity User Manual front and back HDMI WITH CAT5 KLX-X100-TX Front KLX-X100-RX Front... - Page 5 front and back (continued) DISPLAYPORT WITH FIBER KLX-X1500-TX Front KLX-X1500-RX Front KLX-X1500-TX Back KLX-X1500-RX Back HDMI WITH CAT5 & FIBER KLX-X2000-TX Front KLX-X2000-RX Front KLX-X2000-TX Back KLX-X2000-RX Back DISPLAYPORT WITH CAT5 & FIBER KLX-X2500-TX Front KLX-X2500-RX Front KLX-X2500-TX Back KLX-X2500-RX Back P2PKVM Advanced HDMI and DisplayPort KVM Extenders via CATx and Fiber...
-
Page 6: Introduction
Introduction Unleash the potential of the KLX-X series —where reliability meets affordability. Perfect for small offices, home workstations, retail displays, or conference rooms, this point-to-point model offers versatile connectivity at an entry-level cost without compromising on quality. Seamlessly extend your connections up to 100 meters over CATx and up to 10 km over Fiber, ensuring UHD video streaming with minimal latency. -
Page 7: Installation
INSTALLATION 1. Position your KLX-X transmitter conveniently near the computer you wish to use. 2. Connect the corresponding cables from the computer to the USB IN, AUDIO IN, MIC IN, and HDMI/ DP IN found on the back of the KLX-X transmitter. If you want to connect a monitor to transmitter, connect a HDMI/DP cable from the monitor to the HDMI/DP OUT on the front of the transmitter. -
Page 8: Using Rs232 Pass-Through
Using RS232 Pass-through 1. The KLX-X2000 and up support RS232 pass-through, allowing you to control RS232 devices connected to the transmitter unit from the receiver unit. 2. Connect the RS232 cable from the device you want to control by serial to the RS232 port on the transmitter unit. -
Page 9: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 10: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 11 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
