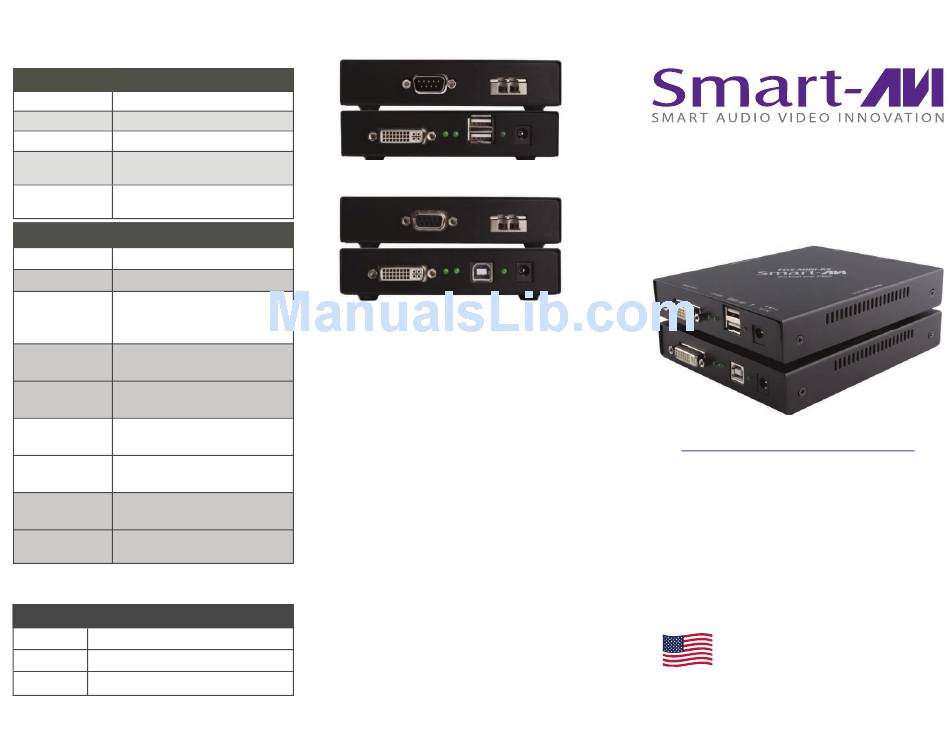

SMART-AVI FDX-MINI-TX User Manual

TECHNICAL SPECIFICATIONS

VIDEO
Input Interface DVI-D Female (Single Link)
Output Interface DVI-D Female (Single Link)
Max Resolution 1920x1200 @ 60Hz
DDC Internal Table;
Can be reprogrammed
Laser Output Class 1; EN 60825-1 2007; EN
Power 60825-2 A2 2010
OTHER
RS-232 9600 bps only
USB USB Keyboard and Mouse ONLY
• 738 Feet @ Multimode 62,5μ
Fiber Extender • 1400 Feet @ Multimode 50μ
• Fiber-Plug type LC
Dimensions
W 4.75" x D 6.25" x H 1.06"
FDX-MINI-TX
Dimensions
W 4.75" x D 6.25" x H 1.06"
FDX-MINI-RX
Weight
.35 lbs
FDX-MINI-TX
Weight
.55 lbs.
FDX-MINI-RX
Power External 100-240 VAC/
FDX-MINI-TX 5VDC@4A @ 20W
Power External 100-240 VAC/
FDX-MINI-RX 5VDC@4A @ 20W
WHAT'S IN THE BOX?
PART NO. DESCRIPTION
FDX-MINI-TX FDX-MINI Multimode Transmitter
FDX-MINI-RX FDX-MINI Multimode Receiver
PS5VD4A Power Supply 5V 4A (2)
FDX-MINI Receiver
FDX-MINI Transmitter
NOTICE
The information contained in this document is subject
to change without notice. SmartAVI makes no warranty
of any kind with regard to this material, including but
not limited to, implied warranties of merchantability
and fitness for particular purpose.
SmartAVI will not be liable for errors contained herein
or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20160613
FDX-MINI
KVM DVI-D Fiber Optic Extender
For the Extension of any DVI-D, USB Keyboard, Mouse,
and RS-232 Signal up to 1,400 Feet

USER MANUAL

Designed and Manufactured in the USA
