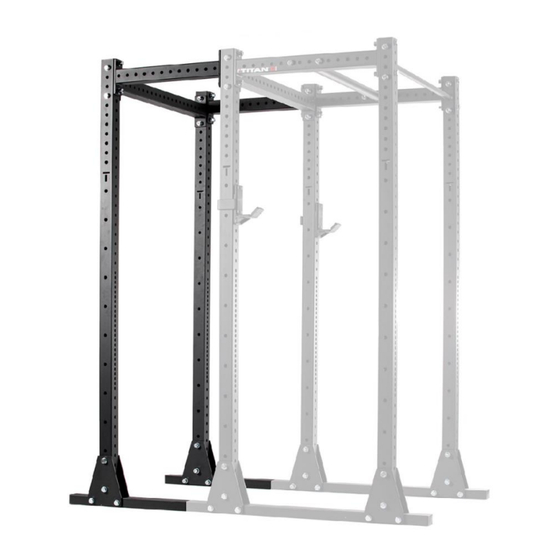

X-3 SERIES FLAT FOOT EXTENSIONS
X3FFUP82 - X3FFEXT10, X3FFUP82 - X3FFEXT24, X3FFUP92 -
X3FFEXT10, X3FFUP92 - X3FFEXT24
401408, 401410, 401409, 401411
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!
Advertisement
Related Manuals for Titan Fitness X3FFUP82
Summary of Contents for Titan Fitness X3FFUP82
- Page 1 X-3 SERIES FLAT FOOT EXTENSIONS X3FFUP82 - X3FFEXT10, X3FFUP82 - X3FFEXT24, X3FFUP92 - X3FFEXT10, X3FFUP92 - X3FFEXT24 401408, 401410, 401409, 401411 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives...
- Page 2 X3FFEXT10 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION 10” Connecting Frame Flat Washer Φ17*Φ30*3 10” Base Frame Spring Washer Φ16 Rear Connecting Frame Nut M16 Fixing Plate Hex Bolt M16*120 End Cap 50*75*3 (10) Hex Bolt M16*110...
- Page 3 82" or 91" with 10" DEPTH ASSEMBLY INSTRUCTIONS STEP 1 Assemble the Base Frame (2) and Upright Frame (11), using Fixing Plate (4), Flat Washer Φ17*Φ30*3 (6), Spring Washer Φ16 (7), Nut M16 (8) and Hex Bolt M16*120 (9).
- Page 4 STEP 2 Connect the Rear Connecting Frame (3) and Upright Frame (11), using Flat Washer Φ17*Φ30*3 (6), Spring Washer Φ16 (7), Nut M16 (8) and Hex Bolt M16*110 (10).
- Page 5 STEP 3 Assemble the 10” Connecting Frame (1) and Upright Frame (11), using Flat Washer Φ17*Φ30*3 (6), Spring Washer Φ16 (7), Nut M16 (8) and Hex Bolt M16*120 (9). PLEASE TIGHTEN ALL THE BOLTS.
- Page 6 X3FFEXT24 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION 24" Connecting Frame Flat Washer Φ17*Φ30*3 24" Base Frame Spring Washer Φ16 Rear Connecting Frame Nut M16 Fixing Plate Hex Bolt M16*110 End Cap 50*75*3 (10) Hex Bolt M16*120...
- Page 7 82" or 91" with 24" DEPTH ASSEMBLY INSTRUCTIONS STEP 1 Assemble the Base Frame (2) and Upright Frame (11), using Fixing Plate (4), Flat Washer Φ17*Φ30*3 (6), Spring Washer Φ16 (7), Nut M16 (8) and Hex Bolt M16*120 (9).
- Page 8 STEP 2 Connect the Rear Connecting Frame (3) and Upright Frame (11), using Flat Washer Φ17*Φ30*3 (6), Spring Washer Φ16 (7), Nut M16 (8) and Hex Bolt M16*110 (10).
- Page 9 STEP 3 Assemble the 24” Connecting Frame (1) and Upright Frame (11), using Flat Washer Φ17*Φ30*3 (6), Spring Washer Φ16 (7), Nut M16 (8) and Hex Bolt M16*120 (9). PLEASE TIGHTEN ALL THE BOLTS. SHOWN WITH THE 10" TOP SIDE BRACES...
- Page 10 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 11 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2024 Titan Brands...
