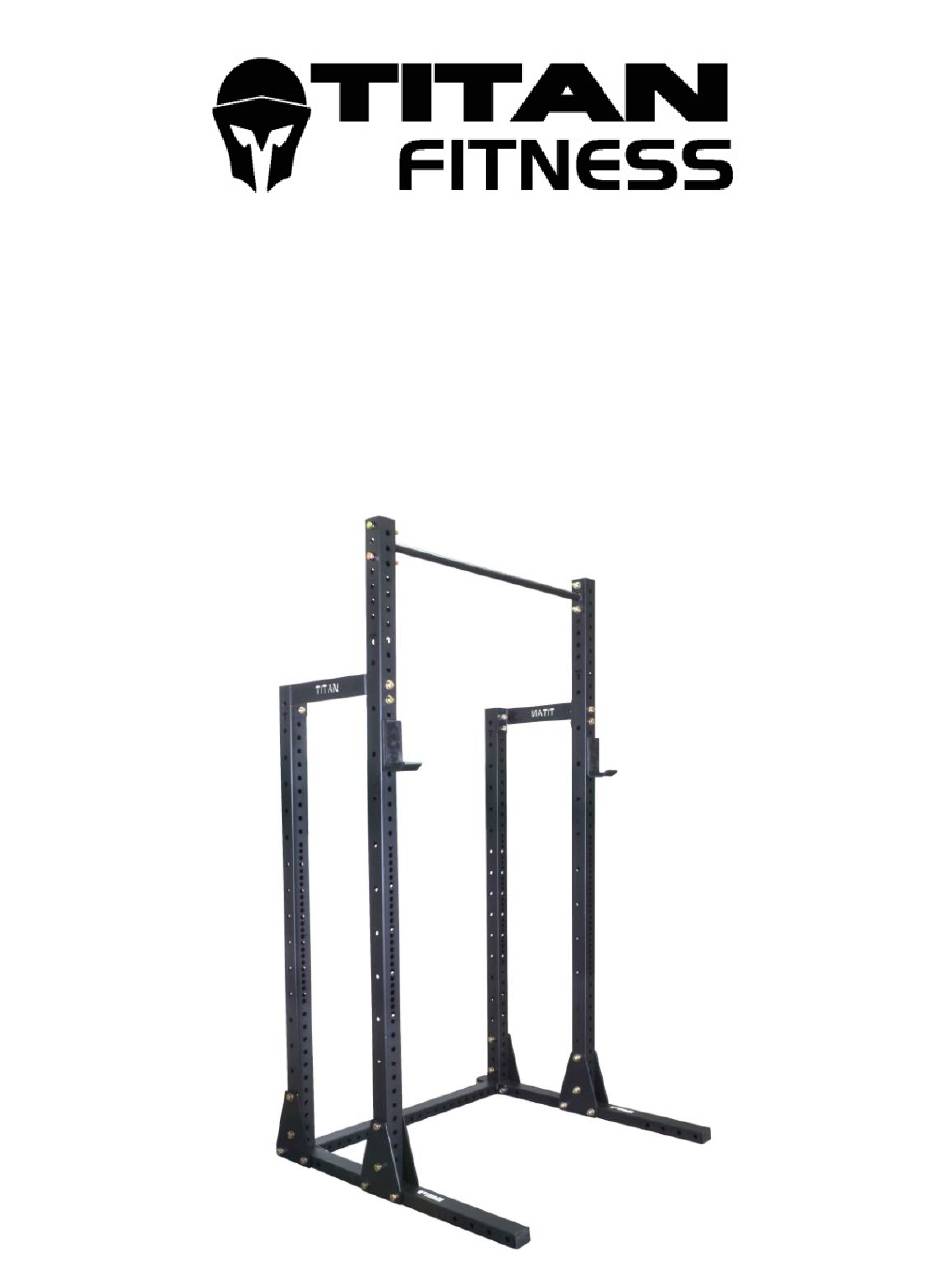

- Page 1 MPN: X3SQUAT1-X3SQUAT2-X3HALF Owner’s Manual...
- Page 2 P A R T S D I A G R A M & P A R T S / H A R D W A R E L I S T...
- Page 3 PIPE SAFETY BAR SLEEVE (17) PIN SAFETY BAR (18) M16x110 BOLT (19) M16 FLAT WASHER (20) M16 SPRING WASHER (21) M16 HEX NUT BOX BREAKDOWN • X3SQUAT1 = BOX 1 • X3SQUAT2 = BOX 2 • X3HALF = BOX 3...
- Page 4 A S S E M B L Y I N S T R U C T I O N S IMPORTANT: • Before assembly, it is recommended to create distinct areas for each box’s contents and organize the parts and hardware. •...
- Page 5 For the next two steps, it is recommended that one person holds the parts while another installs the hardware. 5. Stand each UPRIGHT POLE (1) between a pair of center GUSSET PLATES (5), and secure them with the following hardware: M16x120 HEX BOLTS (8), M16 FLAT WASHERS (9), M16 SPRING WASHERS (10), and M16 HEX NUTS (11).
- Page 6 For step 8, it is recommended that one person holds the parts while another installs the hardware. 8. Stand a 3x3” UPRIGHT (13) on top of each SIDE LEG (2) at the leg’s end where the GUSSET PLATE (14) is located. Align the holes of each 3x3” UPRIGHT (13) with the top two holes of their adjacent GUSSET PLATE (14), and secure them with the following hardware: M16x110 HEX BOLTS (18), M16 FLAT WASHERS (19), M16 SPRING WASHERS (20), and M16 HEX NUTS (21).
- Page 7 This concludes the assembly of your product. Make sure to tighten all nut-and-bolt combinations before use. Enjoy! NEED HELP? CONTACT US FIRST. 1 (800) 605-8241 info@titandistributorsinc.com / www.titan.fitness Business Hours: Monday–Friday • 8:00 a.m.–5:00 p.m. (CT)
