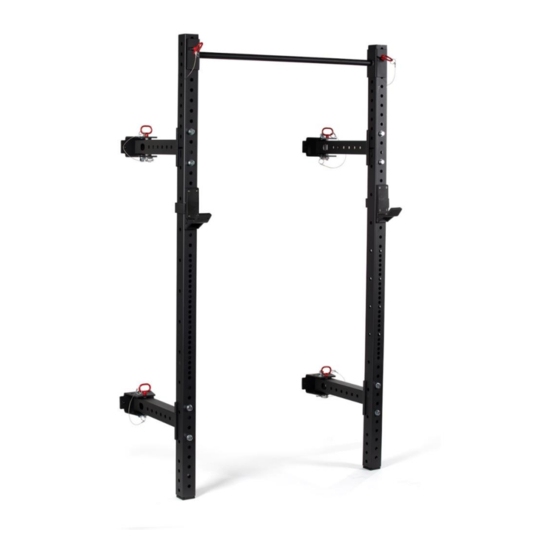

X-3 SERIES FOLDING POWER RACK

X3FLDUP82 - X3FLDSB21, X3FLDUP82 - X3FLDSB41,

X3FLDUP91 - X3FLDSB21, X3FLDUP91 - X3FLDSB41

401394, 401396, 401393, 401395

Operator's Manual

Read the Operator's Manual entirely. When you see this

symbol, the subsequent instructions and warnings are

serious follow without exception. Your life and the lives

of others depend on it!

Need help?

Do you have a question about the X-3 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan Fitness X-3 Series

Page 1 X-3 SERIES FOLDING POWER RACK X3FLDUP82 - X3FLDSB21, X3FLDUP82 - X3FLDSB41, X3FLDUP91 - X3FLDSB21, X3FLDUP91 - X3FLDSB41 401394, 401396, 401393, 401395 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives...
Page 2 X3FLDUP82 OR X3FLDUP91 PARTS DIAGRAM DESCRIPTION X3FLDUP82 or X3FLDUP91...
Page 3 X3FLDSB21 PARTS DIAGRAM DESCRIPTION DESCRIPTION (11) REAR CONNECTING FRAME LONG PLASTIC PLATE 148*68*5 (12) PULL UP BAR PLASTIC PLATE 68*58*5 (13) J-HOOK(L) FRONT PLASTIC PLATE 68*48*5 (14) J-HOOK(R) SHORT PLASTIC PLATE 58*48*5 (15) FLAT WASHER Φ17*Φ30*3 (16) CABLE Φ5.5*Φ1.6*330 SPRING WASHER Φ16 (17) PULL RING Φ1.5*31 NUT M16...
Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Connect the Rear Connecting Frame (1) and Upright Frame (21), using Flat Washer Φ17*Φ30*3(15), Spring Washer Φ16 (16), M16 Nut (17) and Hex Bolt M16*110 (18).
Page 5 ASSEMBLY INSTRUCTIONS STEP 2 1. Fixing the Retaining Bracket (4) on the Wall. 2. Fixing the Pull Up Bar (2) on the Upright Frame (21), using the Pin (5). 3. Install the Left and Right J-Hook (3 & 4) on the Upright Frame (21). 4.
Page 6 X3FLDSB41 PARTS DIAGRAM DESCRIPTION DESCRIPTION (12) REAR CONNECTING FRAME Φ16 BUSHING (13) REAR SHORT CONNECTING FRAME LONG PLASTIC PLATE 148*68*5 (14) PULL UP BAR PLASTIC PLATE 68*58*5 (15) J-HOOK(L) FRONT PLASTIC PLATE 68*48*5 (16) J-HOOK(R) SHORT PLASTIC PLATE 58*48*5 (17) FLAT WASHER Φ17*Φ30*3 (18) CABLE Φ5.5*Φ1.6*330...
Page 7 ASSEMBLY INSTRUCTIONS STEP 1 Install the Rear Connecting Frame (1) and Rear Short Connecting Frame (2) on the Upright Frame (23), using Flat Washer Φ17*Φ30*3(17), Spring Washer Φ16 (18), M16 Nut (19) and Hex Bolt M16*110 (20).
Page 8 ASSEMBLY INSTRUCTIONS STEP 2 1. Fixing the Long Retaining Bracket (11) and Retaining Bracket (10) on the Wall. 2. Fixing the Pull Up Bar (3) on the Upright Frame (23), using the Pin (6). 3. Install the Left and Right J-Hook (4 & 5) on the Upright Frame (23). 4.
Page 9 STRINGER DETAILED DIMENSIONS FOR X3FLDUP82-X3FLDSB21 Note: TITAN Fitness specifies all our products in metric (mm), and suggest measuring in metric for most accuracy. Inch dimensions provide as altemative option.
Page 10 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
