5. If a mating battery harness has been previously installed in the cabinet, verify the correct polarity
and voltage prior to connecting the battery harness to the Battery receptacle. Otherwise, battery
connections will be continued in the following sub-section.
6. Attach the temperature sensor connector into the mating receptacle on the front panel of the
power supply.
7. If remote monitoring of the power supply is desired, connect an Ethernet cable to the Ethernet
receptacle on the front panel of the power supply.
8. Place 12 of the 7/32" black rubber terminal covers over all exposed conductor screws on the In-
put and Output terminal blocks. The safety covers must remain in place and shall not be removed
while the unit is in operation.
Initial installation and wiring are now complete. Verify all connections on the front panel of the power
supply are securely in place.
4.05

Battery Placement and Wiring

Proper installation and wiring of the batteries are critical to the long-term backup capability of any power
supply system. Gelled electrolyte, valve regulated, or AGM batteries are recommended for use in DOT/ITS
power supply applications. All batteries should be tested and fully charged prior to installation. Intercon-
necting wiring must be no smaller than 8 mm² in area or 8 AWG. Longer run times and improved efficiency
may be realized using battery wiring of 13 mm² in area or 6 AWG.
In light of the specialized handling and connection requirements for batteries, only trained personnel
should install batteries in an enclosure. Personnel must always employ appropriate safety equipment
(goggles or face shields, insulated gloves, etc.) and only use fully insulated tools for tightening hardware on
the battery terminals. Additionally, proper lifting tools and techniques must always be used during battery
installation to avoid personal injury or equipment damage.
Multilink Inc. 580 Ternes Ln. | Elyria,OH 44035 | 440.366.6966 | www.gomultilink.com

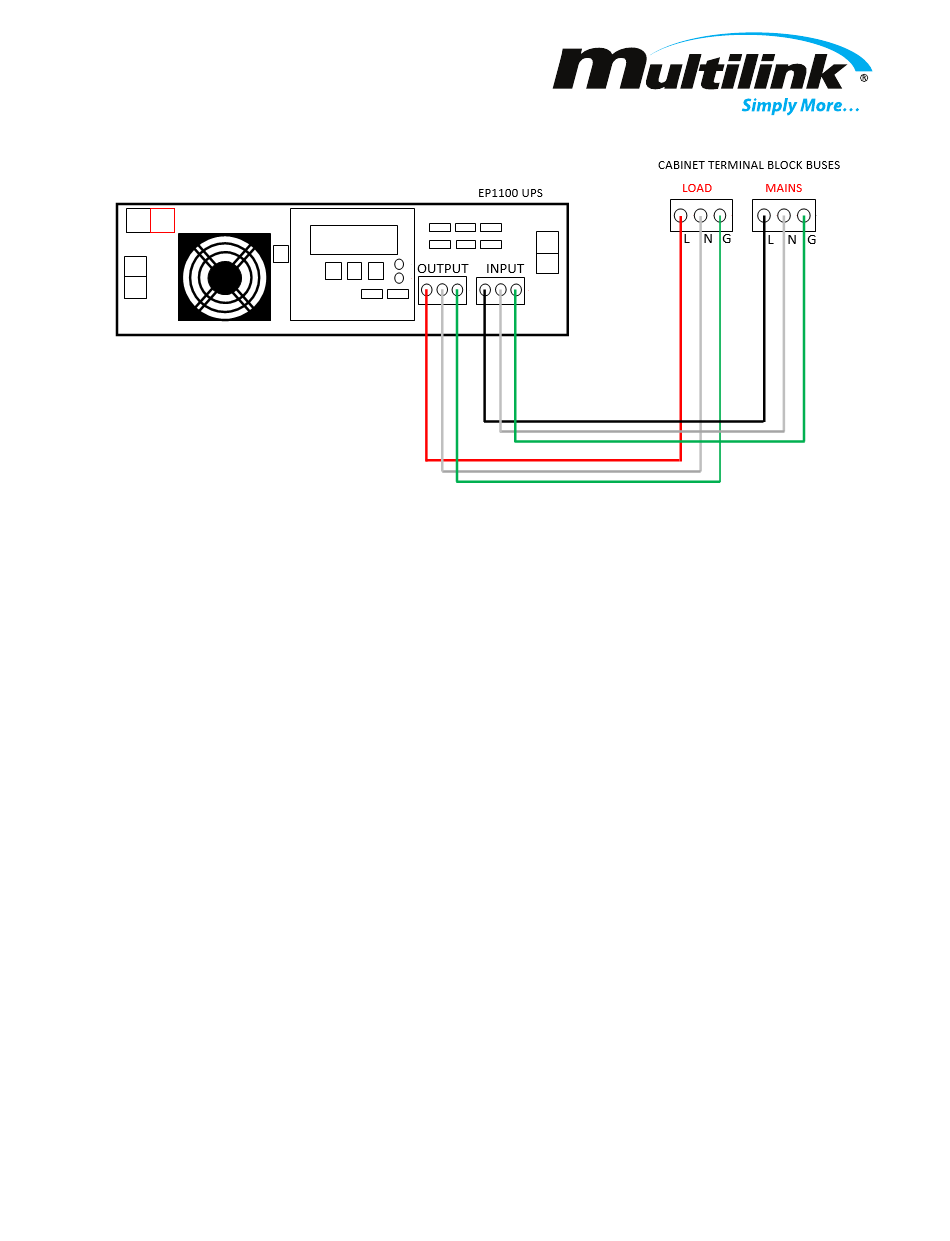

Fig. 4-2 EP1100 UPS ONLY wiring example
