Multilink EP 1100 Installation & Operation Manual page 16

Verify the terminal block buses in the cabinet for Utility, Output, Generator, and any additional buses
are not active and are clearly labeled prior to wiring the power supply to the terminal block buses.
Use fully insulated tools when installing the EP1100.
3. If the Safety Automatic Transfer Switch (SATS) is required, refer to the SATS installation guide and
attach the corresponding wires of the cabinet's terminal block buses and the power supply. If
only an EP1100 power supply is in use, please continue to step 4.
4. Attach the corresponding wires from the input and output terminal blocks to their respective
power buses in the cabinet. Take care to label each wire accordingly.
a. Black – AC Utility Line Hot Terminal Block Buses
b. Red – AC Output Hot Terminal Block Bus
c. White – AC Utility Line and Output Neutral Terminal Block Buses
d. Green – AC Utility Line and Output Ground Terminal Block Buses
Multilink Inc. 580 Ternes Ln. | Elyria,OH 44035 | 440.366.6966 | www.gomultilink.com
16
CAUTION

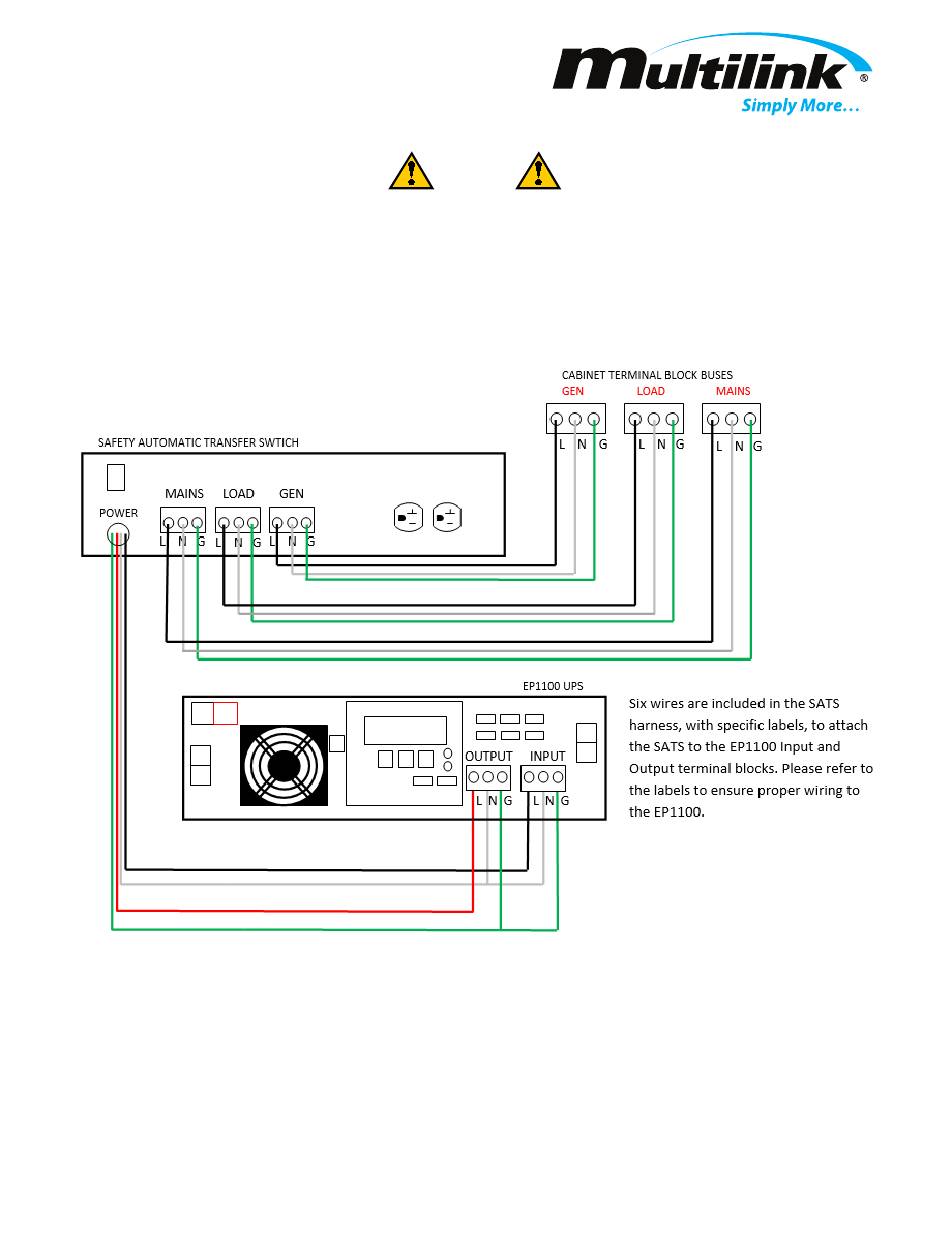

Fig. 4-1 SATS and EP1100 wiring example
