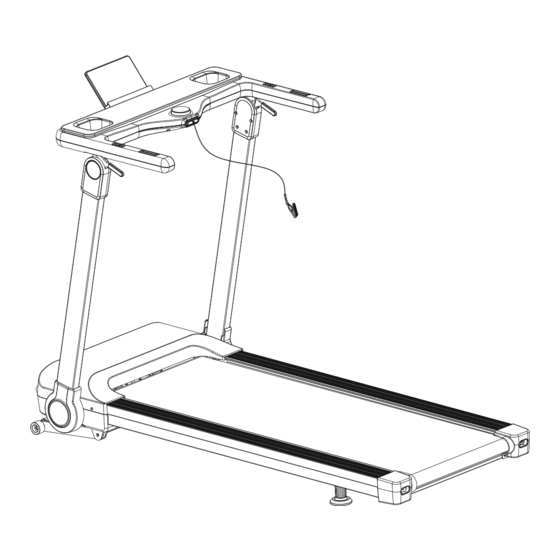

- Page 1 Assembly and Operating Instructions max. 120 kg ~ 30 Min. 57 kg L 158 | W 77 | H 117 FSDFTM30.02.02 Art.-No. DF-TM30-2 DARWIN TM30...
- Page 2 TM30...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly Folding Mechanism OPERATING INSTRUCTIONS Console Display Button Functions Fitness Programmes 3.3.1 Quickt Start 3.3.2 Preset Programme Mode 3.3.3 User Programme Mode 3.3.4 Body Fat Test Wireless Connection and Fitness Apps STORAGE AND TRANSPORT General Instructions... - Page 4 ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT TM30...
- Page 5 Dear customer, thank you for choosing Darwin fi tness equipment. With Darwin fi tness equipment we off er fi rst class home sports equipment at a great price point. Darwin exercise bikes and strength machines are easy to use, have a space-saving design and look really good. With our equipment we want to support you in reaching your athletic goals, no matter if you want to lose weight or train for the national triathlon.
- Page 6 (person with legal responsibility). Class H (home use): use at home. These stationary training devices are intended for the use in private homes where access to the training device is regulated by the owner (person with legal responsibility). TM30...
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
166 cm x 84.5 cm 24.5 cm Set-up dimensions (L x W x H): 157.6 cm x 77.3 cm x 116.5 cm Folding dimensions (L x W x H): 157.6 cm x 77.3 cm x 21.8 cm Maximum user weight: 120 kg Use class: TM30... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Electrical Safety
The software systems on gym equipment with TFT consoles are set up only for the pre- installed apps. Do not install any additional apps. NOTICE The pre-installed apps on TFT consoles are produced and provided by external manufacturers. Fitshop does not take any responsibility for the availability, functionality or contents of these apps. TM30... -
Page 11: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Make sure that there is a safety area behind the treadmill with a length of at least 2 m and a width at least equal to the width of the treadmill. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 12: Assembly
To prevent damage to the equipment and the fl oor, assemble the equipment on a mat or packaging board. NOTICE In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. Ideally, assemble the equipment at its later set-up place. TM30... -
Page 13: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 14: Assembly
PDF instructions stored in the webshop on your end device (e.g. smartphone, tablet or PC). There you have the option of zooming in closer. Please note that the Adobe Acrobat Reader programme must be installed on your end device in order to open the fi le. TM30... - Page 15 Step 2: Setting the Upright Tubes Lift the console unit (A05) along with left and right upright tubes (A03 & A04) upwards.
- Page 16 Step 3: Setting the Console Unit Fold the console unit (A05) forwards. TM30...
- Page 17 Step 4: Assembly of the Covers Place the two covers (C10) on the left and right upright tubes (A03 & A04).
- Page 18 Step 5: Assembly of the Tablet Holder Insert the tablet holder (B) into the socket provided on the console unit (A05). TM30...
- Page 19 Step 6: Attachment of the Safety Key Insert the safety key (C16) into the socket of the console unit (C33).
- Page 20 To step onto the treadmill, grip the handrails with both hands and step onto the treadmill one foot at a time. To get off , grip the handrails with both hands and step off the treadmill one foot at a time. TM30...
-
Page 21: Folding Mechanism
Folding Mechanism ⚠ WARNING Do not lift the treadmill by the running mat or the rear transporting wheels. These parts do not lock and are diffi cult to grab. Do not connect the equipment to the power supply when it is folded up. Try not to operate the equipment when it is folded up. -
Page 22: Operating Instructions
To enable the safety key to detach from the contact point of the cockpit in the event of a fall, the safety key clip must be fi rmly attached to your clothing! Make sure that the safety key is not accessible to children. TM30... -
Page 23: Console Display
Console Display Calories Indicates the burned calories. Pulse Indicates your current heart rate. Time Indicates the training time. Speed Indicates the current speed. Distance Indicates the distance. Incline Indicates the current incline. Button Functions The rotary knob is used for several commands and inputs: Press the rotary knob in the menu to select the corresponding programme. -
Page 24: Fitness Programmes
Use the rotary knob to start, pause and/or end the programme. Incline and speed can be adjusted during your training using the incline +/- buttons and the rotary knob. Upon completion of the programme, the treadmill will start to decelerate automatically until it comes to a halt. TM30... -
Page 25: User Programme Mode
3.3.3 User Programme Mode There are 3 available user programmes for you to adjust to your personal preferences. Use the rotary knob to choose the user programme mode from the main menu and press MODE to confi rm. Use the rotary knob to choose from one of the 3 user programmes and press MODE to confi rm. Use the rotary knob to set a desired training time and press MODE to confi rm. -
Page 26: Wireless Connection And Fitness Apps
You will fi nd the fi tness apps in the app stores of Google or Apple. There you will fi nd the apps “Kinomap” or “Zwift”. Please note that these apps are produced by an external manufacturer. Fitshop does not take any responsibility regarding the availability, functionality or contents of these programmes. Example: Kinomap TM30... -
Page 27: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 28: Troubleshooting, Care And Maintenance
Use a suitable chest strap (see Wrong position of chest No pulse display RECOMMENDED ACCESSORIES). strap Reposition chest strap and/or Chest strap defective or moisten electrodes battery empty Changing batteries Pulse display defective Check if pulse display by hand pulse possible TM30... -
Page 29: Care And Maintenance
Care and Maintenance The most important maintenance measure is the care of the running mat. This includes adjustment, re tensioning and lubrication of the running mat. Damage resulting from insuffi cient or neglected care is not covered by the warranty. You should therefore carry out maintenance checks at regular intervals. -
Page 30: Re-Tensioning The Running Mat
Continue turning the belt by hand so that the entire surface between the endless belt and the running plate is lubricated. Wipe off the excess silicone oil or silicone spray. NOTICE This maintenance must also be carried out after prolonged non-use of the equipment. TM30... -
Page 31: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Display console Tension of the running mat... -
Page 32: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap fl oor mat chest strap contact gel silicone spray handrails TM30... - Page 33 NOTICE The serial number of your equipment is unique. It's located on a white sticker. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Darwin / treadmill Model Name: Darwin Treadmill TM30 Article Number: DF-TM30...
- Page 34 Right Pulse Icon Clip Lifting Frame Sleeve Spring Sleeve Ground Copper Sheet Spring Clip Allen Wrench Column bolt Column bolt spring Steel wire bearing Display Panel Console Top Cover Console Bottom Cover Raster Outside Decorative Cover of Left Column TM30...
- Page 35 Outside Decorative Cover of Right Column L Decorative Cover of Inner Column Motor Top Cover Motor Bottom Cover Decorative Cover Left Rear End Cap Right Rear End Cap Handlebar Rubber Sleeve Running Belt Side rail Safety Key Cushion Transportation Wheel Cushion Middle Cushion IPAD Top Cover IPAD Bottom Cover...
- Page 36 Screw ST3.5*10 Screw ST3.5*8 Screw ST2.9*8 Screw ST2.9*8 Screw ST2.9*6 Screw ST2.0*6 Screw ST4.2*19 Screw ST4.2*12 Screw ST2.5*5 Flat Washer Φ10*Φ20*1.5 Flat Washer Φ8 Flat Washer Φ6 Flat Washer φ10*φ26*2 Flat Washer φ8*φ22*2 Lock Washer Φ10 Lock Washer Φ8 TM30...
- Page 37 Lock Washer Φ6 Lock Washer Φ5 Spring Washer Φ8 Bolt M5*12 Screw ST4.2*16 Bolt M6*60 Bolt M4*16 Bolt M5*10 Bolt M6*20 Console Control Board Console Top wire Console Bottom wire Smart Adjustment Knob Knob Connection Wire Safety Key Connection Wire Pulse Top Wire Pulse Bottom Wire Incline Top Wire...
- Page 38 Ground Wire Ground Wire Motor Speaker Screw ST2.9*6 USB Module USB Wire Filter ST4.2*12 Inductance AC Single Wire Ground Wire Screw ST4.2*12 B-board Audio socket wire Screw ST2.5*6 B-module B-wire HRC connecting wire Wireless receiver TM30...
- Page 39 Exploded Drawing...
- Page 40 TM30...
- Page 41 WARRANTY Products from Darwin® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fi tness equipment is developed for long-term, high-quality training.
- Page 42 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. TM30...
- Page 43 CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER SUPPORT �� �� �� +49 4621 4210-900 80 90 16 50 00800 2020 2772 +494621 4210 944 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk info@fi tshop.co.uk �� technik@fi tshop.de �� ��...
- Page 44 Visit us also on our social media platforms or our blog! TM30...
- Page 45 Notes...
- Page 46 Notes TM30...
- Page 48 DARWIN TM30...
