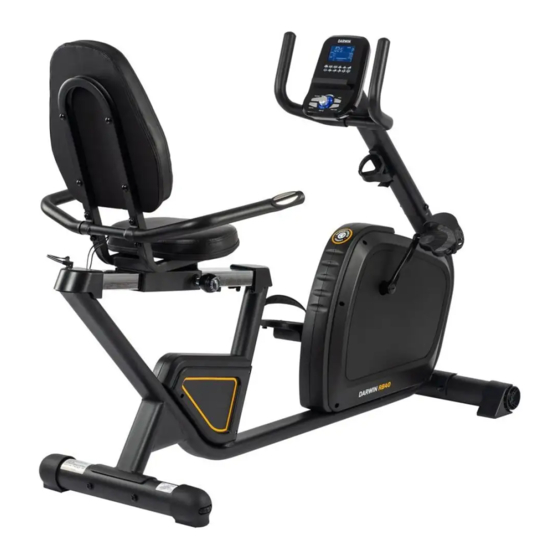

- Page 1 Assembly and Operating Instructions max. 130 kg ~ 30 - 60 Min. 49 kg L 138 | W 64 | H 89 FSDFRB40.01.01 Art. No. DF-RB40 DARWIN RB40...
- Page 2 RB40...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Functions Turning On and Setting the Equipment Programmes 3.4.1 MANUAL - Manual Programme 3.4.2 PROGRAM - Pre-Set Programmes 3.4.3 USER PROGRAM - User Defi ned Programme 3.4.4 H.R.C. - Page 4 ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT RB40...
- Page 5 European VAT Number: DE813211547 Disclaimer © Darwin Fitness is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
GENERAL INFORMATION Technical Data LED display speed in km/h cadence (rotations per minute) training time in min training distance in km calorie consumption in kcal heart rate (when using the hand pulse sensors or a chest strap) Watt / resistance level Resistance system: electronic magnetic brake system Resistance levels:... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Electrical Safety
⚠ CAUTION Be aware that if adjustment devices are left protruding, they may impede the user’s movement. ATTENTION Do not insert any objects of any kind into the openings of the device. To protect the equipment from use by unauthorised third parties, always remove the power cable (if existing) when not in use and store it in a safe place that is inaccessible to unauthorised persons (e.g. -
Page 11: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 12: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 13: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 14: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so. - Page 15 Step 2: Assembling the Seat and the Slide Rail Mount the seat (18) to the seat post (7) using four fl at washers (66) and four bolts (15). Tighten the bolts with the tool. Mount the seat post (7) to the sliding beam (60) by pulling out the rotary knob on the seat post and allowing it to engage in one of the holes in the sliding beam (60).
- Page 16 Step 3: Mounting the Seat and Covers Mount the sliding beam (60) to the main frame (1) using two fl at washers (66) and two bolts (55) (Fig. A) and two square neck bolts (56), two fl at washers (66), two spring washers (11), two cup nuts (12) (Fig.
- Page 17 Step 4: Mounting the Console Mast and the Backrest Connect the cable (41) of the handlebar post tube (10) to the cable (88) of the main frame (1). Connect the cable (46) of the handlebar post tube (10) and the cable (47) of the main frame (1). ATTENTION Pay attention to not pinch the cables during the next step.
- Page 18 Step 5: Mounting the Pedals and Hand Pulse Sensors ⚠ CAUTION Make sure to screw in the pedals completely. Mount the left and right pedal (20L & 20R) on the crank arms (39L & 39R). Mount the bottle holder (3) to the handlebar post tube (10) with two bolts (4). Mount the handlebar set (5) on the backrest supporting tube (86) with four fl at washers (66) and four spring washers (11) and four bolts (13).
- Page 19 Step 6: Mount the Console and connect the Unit to the Power Supply Connect the cables (41 & 46) of the handlebar post tube (10) to the cables of the console (8). Place the console (8) on the handlebar post tube (10) and mount it with four bolts (87). Tighten the bolts with the tool.
- Page 20 Step 7: Alignment of the Feet If the fl oor is uneven, you can stabilize the equipment by turning the two setting screws under the main frame. Lift the equipment on the desired side and rotate the setting screws under the main frame. Rotate the screws clockwise in order to remove them and to raise the equipment.
-
Page 21: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Always start your training with low intensity and increase evenly and gently. End your training with a cool-down phase. -
Page 22: Button Functions
Button Functions START Start and stop the training STOP RECOVERY Check state of recovery of heart rate PLUS Select training mode or increase functional value MINUS Select training mode or lower functional value RESET Press the button in the stop mode to return to the main menu MODE Confi rm setting Turning On and Setting the Equipment... -
Page 23: Programmes
Programmes The console off ers a variety of programmes. These include the following: Manual (manual training): Program (pre-set training programmes): User Program (user-defi ned training programme): H.R.C. (heart rate controlled training programmes): Watt (Watt-controlled training programme): Recovery (fi tness test) Body Fat (Body fat test) -
Page 24: Manual - Manual Programme
3.4.1 MANUAL - Manual Programme Select the target programmes (MANUAL) with the encoder and press MODE for confi rmation. Enter load level with the encoder and confi rm with MODE. Enter the time, distance, calories and/or pulse value/s with the encoder and confi rm with MODE. Press START to begin the training. -
Page 25: Heart Rate Controlled Programmes
3.4.4 H.R.C. - Heart Rate Controlled Programmes ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can aff ect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. -
Page 26: Recovery - Recovery Heart Rate Status
3.4.6 RECOVERY - Recovery Heart Rate Status After training, press RECOVERY to calculate your recovery heart rate status. Hold the hand pulse sensors. The console calculates your recovery heart rate status within 60 seconds. The result is displayed as a note between F1 and F6, where F1 is the best and F6 the worst. Press RECOVERY again to return to the main menu. -
Page 27: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 28: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 29: Error Codes And Troubleshooting
Error Codes and Troubleshooting The electronics of the equipment continuously carries out tests. In case of deviations, an error code appears on the display and normal operation is stopped for your safety. Please contact the contract partner for technical support. Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. -
Page 30: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For exercise bikes this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat or silicone spray to keep moving parts in good shape. - Page 31 Maximum weight/max. Benutzergewicht: Class/Klasse: Date/Datum: Sport-Tiedje GmbH, Flensburger Str. 55, 24837 Schleswig MADE IN Serial nº.: Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Darwin Fitness / Recumbent Bike Model Name: RB40 Article Number: DF-RB40...
- Page 32 Parts List Name Specifi cation Qty. Main frame Front stabilizer D76x1.5Tx480L Bottle holder 120*87*3T Bolt M5*0.8*15L Handlebar set Rear stabilizer D76x1.5Tx480L Seat post Computer SM-1730-31 Left rolling foot cap D76*120L Right rolling foot cap D76*120L Handlebar post tube Spring washer D15.4xD8.2x2T Cup nut M8x1.25x15L...
- Page 33 Power cord 400L Sensor cable 400L Waved washer D22*D17*0.3T C-ring S-17(1T) Belt 410 J5 (1041 J5) Belt wheel D260*19 Round magnet Left crank 6 1/2"x9/16"-20UNF Right crank 6 1/2"x9/16"-20UNF Ball knob D50xM16x32xD8 Upper computer cable 700L Motor Adjustable foot cap D76*86 Buff er D20*10L*M8*1.25...
- Page 34 Front rear cover 100*93*66 Anti-loose nut M6*1*6T Nylon washer D6*D19*1.5T Flat washer D13*D6.5*1.0T Flat washer D16xD8.5x1.2T Bolt M6x1.0x15L Anti-loose nut M6x1.0x6T Bearing #6003ZZ Foam D23*4T*415L Foam D23*4T*500L,with hole Screw ST4x1.41x10.L Square cap 25*25*13L Handle pulse PE18 Rear protective cover 100*93*66 Flat washer D23*D17.2*1.5T Bolt...
- Page 35 Exploded Drawing...
- Page 36 WARRANTY Products from Darwin Fitness® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
- Page 37 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
- Page 38 CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER SUPPORT �� �� �� +49 4621 4210-900 80 90 16 50 00800 2020 2772 +494621 4210 944 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk info@fi tshop.co.uk �� technik@fi tshop.de �� ��...
- Page 39 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Fitshop is Europe’s largest specialist store for www.fi tshop.co.uk home fi tness equipment with currently over 70 www.fi tshop.de/blog stores and one of the world’s most renowned online mail order companies for fi tness equipment.
- Page 40 Notes RB40...
- Page 41 Notes...
- Page 42 Notes RB40...
- Page 44 DARWIN RB40...
