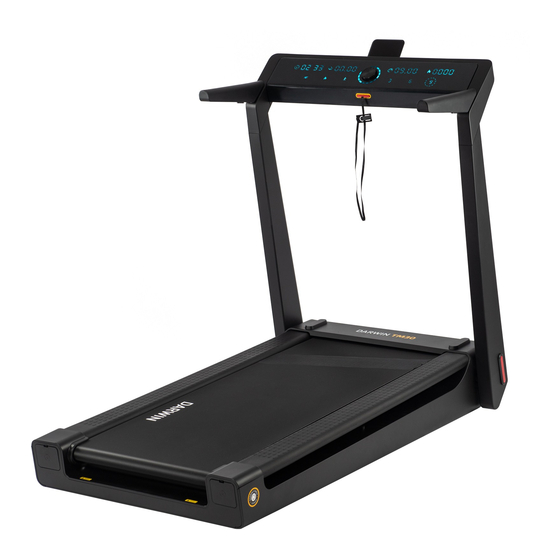

- Page 1 Assembly and Operating Instructions DFTM30.01.02 DF-TM30 DARWIN TM30...
- Page 2 TM 30...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Functions Programmes 3.3.1 Quick Start Programme 3.3.2 HIIT Programme (High-Intensity Interval Training) 3.3.3 Fat Burn Programme 3.3.4 Walk Programme STORAGE AND TRANSPORT General Instructions Folding Mechanism... - Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT TM 30...
- Page 5 Dear customer, Thank you for choosing Darwin fitness equipment. With Darwin fitness equipment we offer first- class home sports equipment at a great price point. Darwin exercise bikes and weight machines are easy to use, have a space-saving design and look really good. With our equipment we would like to support you in reaching your athletic goals, no matter if you want to lose weight or train for the national triathlon.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data LED display of: Training time in min. Training distance in km Speed in km/h Calorie consumption in kcal Motor type: DC-Motor (1,5 HP) Speed: 0,8 km/h–15 km/h (adjustable in 0.1-km/h increments) Programmes in total: Quick Start programme: Intervall programme (HIIT): Fatburn programme: Walk programme:... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... - Page 13 Encoder Foldable handrail Lockup button for folding mechanism Running mat Socket for smartphone holder Transportation Wheel Transportation Wheel Power socket Power switch...
-
Page 14: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Setting up the treadmill Remove the packaging and place the treadmill... - Page 15 Step 3: Connecting the equipment to the mains supply ࣑ ATTENTION The equipment must not be connected to a multiple socket, otherwise it cannot be guaranteed that the equipment will be supplied with sufficient power. Technical errors can result. Connect the power plug to the unit and connect the power plug to a wall outlet that complies with the electrical safety instructions in the chapter on electrical safety.
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. SAFETY KEY WARNING ⚠ For your safety, the device is equipped with an EMERGENCY STOP function. The equipment can only be operated if the safety key is correctly attached to the contact point of the cockpit. -
Page 17: Button Functions
Button Functions Programme key for the HIIT programme (High-Intensity Interval Training) Programme key for the fat burn programme Programme key for the walk programme Encoder: Rotate to adjust the speed during workout (in 0.1 km/h increments) Press to start or stop the training Hot keys to adjust the speed to 3, 6 or 9 km/h Programmes There are a total of four programms available:... -
Page 18: Hiit Programme (High-Intensity Interval Training)
3.3.2 HIIT Programme (High-Intensity Interval Training) The HIIT programme is an interval programme and ideal for advanced users. To start the programme, press the programme button. The values for distance and calories are counted up. The value for time is counted down. NOTICE The programme has a training time of 30:00 minutes. -
Page 19: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 20: Folding Up The Treadmill
4.2.1 Folding Up the Treadmill ⚠ WARNING Do not connect the equipment to the power supply when it is folded up. Try not to operate the equipment when it is folded up. The running surface must have come to a complete stop before folding. ⚠... -
Page 21: Transportation Wheels
Transportation Wheels ࣑ ATTENTION If you want to transport your equipment over particularly sensitive and soft floor coverings, such as parquet, planks or laminate, lay out the transport route with cardboard or similar to avoid possible floor damage. The treadmill has various transportation wheels that can be used either when folded or unfolded. Stand behind the equipment and lift it until the weight is transferred to the transportation wheels. -
Page 22: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 23: Error Codes And Troubleshooting
Error Codes and Troubleshooting The electronics of the equipment continuously carries out tests. In case of deviations, an error code appears on the display and normal operation is stopped for your safety. E01: The drive does not receive the signal of the electronic meter (communication fault) E02: Stall protection E03: Speed sensing failure E05: Overcurrent protection... -
Page 24: Care And Maintenance
Care and Maintenance The most important maintenance measure is the care of the running mat. This includes adjustment, re tensioning and lubrication of the running mat. Damage resulting from insufficient or neglected care is not covered by the warranty. You should therefore carry out maintenance checks at regular intervals. -
Page 25: Re-Tensioning The Running Mat
5.4.2 Re-tensioning the Running Mat If the running mat slips over the rollers during operation (if this is the case, there is a noticeable jerk during running), the running mat must be re tightened. In most cases, the slipping is caused by stretching of the mat through use. This is perfectly normal. NOTICE Re-tensioning is carried out using the same adjusting screws that are used for adjustment. -
Page 26: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Display console Tension of the running mat Lubrication of the running mat... -
Page 27: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 28: Ordering Spare Parts
It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Darwin / treadmill Model Name: TM30 Article Number: DF-TM30 TM 30... -
Page 29: Parts List
Parts List Name Specification Qty. Main frame assembly Weld assembly Left column assembly Weld assembly Right column assembly Weld assembly Electronic watch holder assembly Weld assembly Handrail assembly Weld assembly Handrail adjusting pin φ10*22.5 Bayonet lock φ3*25 Pull-up wire bayonet lock φ14*20 Waveform cushion φ18*φ12*0.3... - Page 30 Ring wire plug φ12*φ24*9 Side handrail upper cover Handrail push-by-plate Side handrail lower cover Motor upper cover Motor front cover Trundle φ49*φ8*21 Large roller φ103*φ8*50 Left roller base Right roller base V-belt 7PJ-406/160J Front cover holder Running board spacer Foot pad Left cover Left side strip 1200*102*38...
- Page 31 Control circuit board DC motor 1.25HP， Overload protection switch Power socket Standard power cord Length:1500 Running board 1145*660*18mm Electronic meter lower segment line Length:350mm Safety switch connection line Length:50mm; AC single branch line/blue Length:350mm;single core AC single branch line/brown Length:350mm;single core AC single branch line/brown Length:150mm;single core Ground wire...
- Page 32 Cross slot countersunk head screw ST2.9*12 Cross recessed pan head screw ST2.9*8 Cross recessed pan head screw ST2.0*6 Cross slot head tapping screw ST4.2*20 Electric reactor Filter The cover of lower control board Left EVA cushion of rear cover Rright EVA cushion of rear cover Clip Square buckle Grand circle...
-
Page 33: Exploded Drawing
Exploded Drawing... - Page 34 TM 30...
-
Page 35: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fitness equipment is developed for long-term, high-quality training. - Page 36 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 37: Contact
