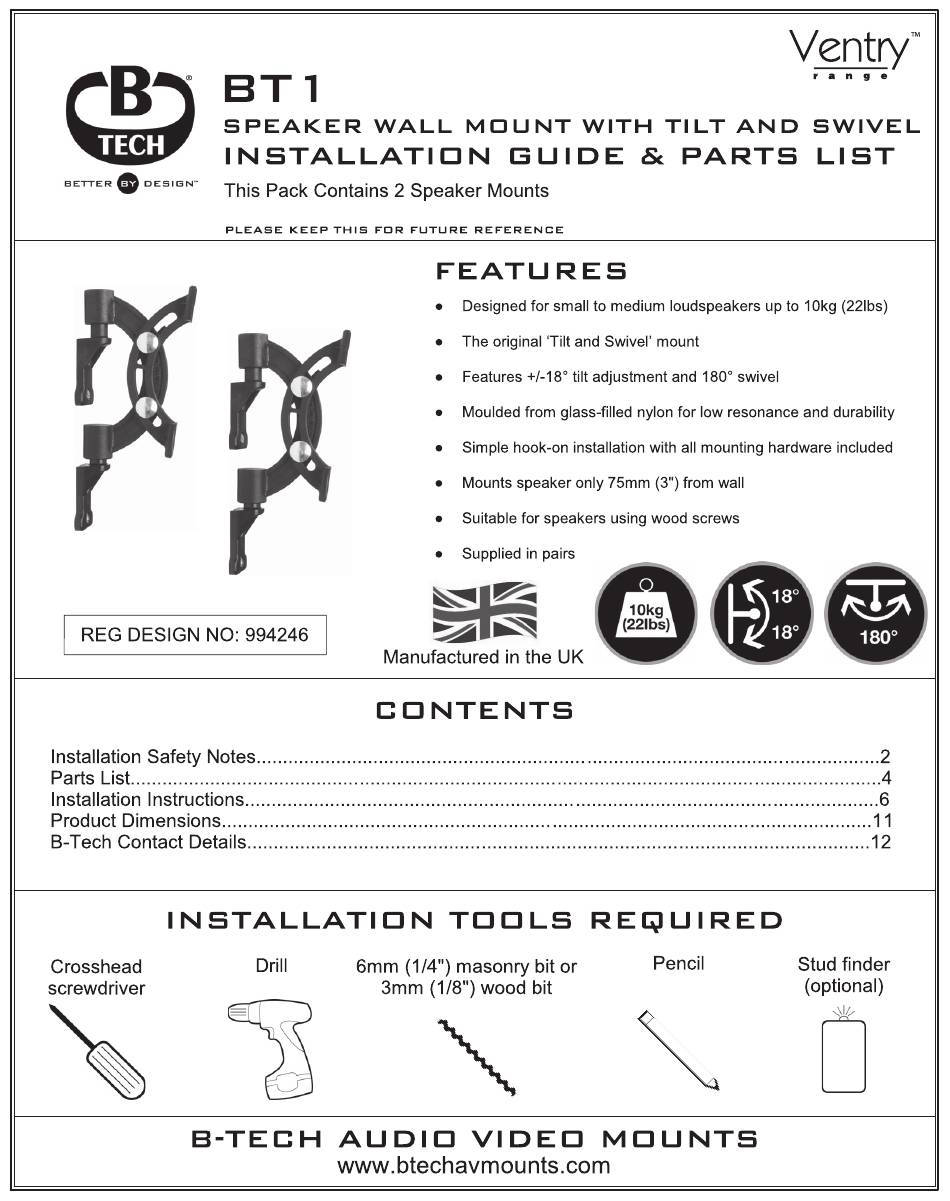

Summary of Contents for B-Tech Ventry BT1
-
Page 2: Installation Safety Instructions
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. - Page 4 PARTS LIST 2 speaker mounts included Suitable for loads up to 10kg (22lbs) per speaker mount...
- Page 5 PART NAME WALL HINGE SOLID ARM SLOTTED ARM M6 x 20mm SCREW M6 WING NUT M6 NUT INTERFACE KIT M4 x 19mm WOOD SCREW FIXING KIT M4 x 38mm WOOD SCREW No. 6 WALL PLUG WALL FIXING KIT SPEAKER INTERFACE KIT (FOR FIXING MOUNT TO WALL) (FOR ATTACHING MOUNT TO BACK OFSPEAKER)
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Fix wall hinges to the wall using one of the following methods. DISTANCES i. Brick / concrete walls. BETWEEN FIXING HOLES 6mm (1/4") masonry bit ii. Wood / stud walls. STUD FINDER (Optional) 3mm (1/8") wood bit... - Page 7 Hook the solid arm onto the wall hinges.
- Page 8 Fix the slotted arm to the back of the speaker. SPEAKER...
- Page 9 Fix speaker to wall mount. i. Slide Part 6 into Part 5. ii. Line up slots on slotted arm with solid arm holes. Fix in place using Parts 4 and Part 5.
- Page 10 To adjust tilt, loosen wing nuts (parts 5), adjust tilt then retighten. 180 ° +/-18° SPEAKER...
-
Page 11: Interface Bracket
PRODUCT DIMENSIONS 75mm 47mm 3" 1.9" INTERFACE BRACKET WALL HINGES 18mm 0.7" 0.2" 31mm 1.2" 31mm 0.2" 1.2" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
