REG. DESIGN NO: 3021713
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Optional Accessories........................................................................................................................10
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
13mm (1/2")
Crosshead
screwdriver
spanner or socket
B-TECH AUDIO VIDEO MOUNTS
BT8421

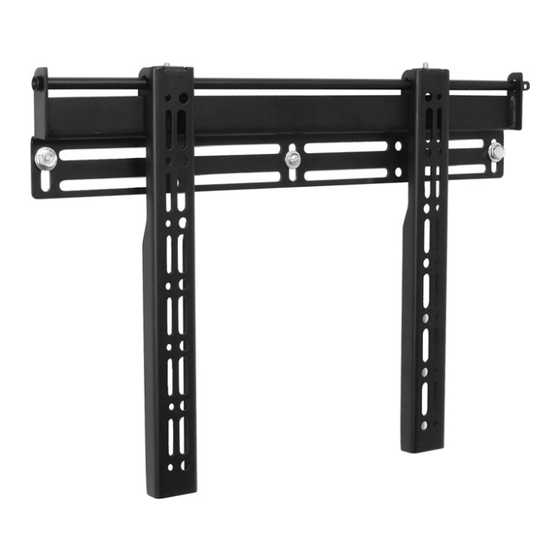

UNIVERSAL FLAT PANEL WALL MOUNT
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
TOOLS REQUIRED
Drill
www.btechavmounts.com
FEATURES
●
Designed for medium flat screens up to 37" (94cm) / 35kg (77lbs)
●
Fits screens with VESA mounting patterns:
75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm,
300 x 200mm, 300 x 300mm and 400 x 200mm
●
Incorporates post installation screen levelling at wall plate
●
Low profile design mounts screen only 30mm (1.2") from wall
●
Suitable for concrete / brick or up to 16" stud walls
●
Simple 'hook on' installation with all mounting hardware included
10mm (7/16")
masonry bit or
6mm (1/4") wood bit
Pencil
Level
(optional)
Stud finder
(optional)
Advertisement
Related Manuals for B-Tech mountlogic rage BT8421
Summary of Contents for B-Tech mountlogic rage BT8421
-
Page 1: Table Of Contents
Parts List.............................4 Installation Instructions........................6 Optional Accessories........................10 Product Dimensions..........................11 B-Tech Contact Details........................12 TOOLS REQUIRED 10mm (7/16") 13mm (1/2") Crosshead Drill Stud finder Pencil Level masonry bit or screwdriver spanner or socket (optional) (optional) 6mm (1/4") wood bit B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. - Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
-
Page 4: Parts List
BT8421 PARTS LIST Suitable for loads up to 35kg (77lbs) Wall Plate Interface Assembly... - Page 5 PART NAME WALL PLATE INTERFACE ARM A INTERFACE ARM B LOCKING BAR M6 x 10mm GRUB SCREW HANDWHEEL (TO LEVEL SCREEN) PROTECTIVE PAD (FOR PART 6) 3mm HEX KEY (FOR PART 5) INTERFACE KIT M4 x 12mm SCREW M4 x 25mm SCREW M5 x 16mm SCREW M5 x 25mm SCREW M6 x 16mm SCREW...
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Attach wall plate to either a concrete or stud wall. i. Concrete/brick wall. 10mm (7/16") masonry bit ii. Stud wall. 6mm (1/4") wood bit... - Page 7 Attach interface arms to flat screen using interface kit. TOP OF SCREEN SCREW WASHER FLAT SCREEN...
- Page 8 Attach levelling wheels and protective pads to arms. FLAT SCREEN Hook flat screen onto wall plate and postion (this may require two people). WALL FLAT Lateral Adjustment SCREEN FLAT SCREEN...
- Page 9 Insert locking bar. WALL FLAT SCREEN Optional Secure with padlock (not supplied) Secure the screen in position. WALL FLAT SCREEN...
-
Page 10: Optional Accessories
Adjust levelling wheels. WALL FLAT SCREEN OPTIONAL ACCESSORIES B-Tech AV Component Shelves & Cable Management. BT7087 BT7070 BT7077 BT7070 BT7078... -
Page 11: Product Dimensions
1.2" 465mm 18.3" WALL PLATE 470mm 18,5" 353mm 13.9" 235mm 9.3" 118mm 4.6" 32mm 1.3" 500mm 19.7" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. -
Page 12: B-Tech Contact Details
©2009 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design & Mountlogic are registered trademarks of Bennett Technologies Limited. All other brands and product names are trademarks of their respective owners.
