COMPATIBLE
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Optional Short Arm.............................................................................................................................6
Installation Instructions.......................................................................................................................7
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
INSTALLATION TOOLS REQUIRED
13mm (1/2") spanner
or socket

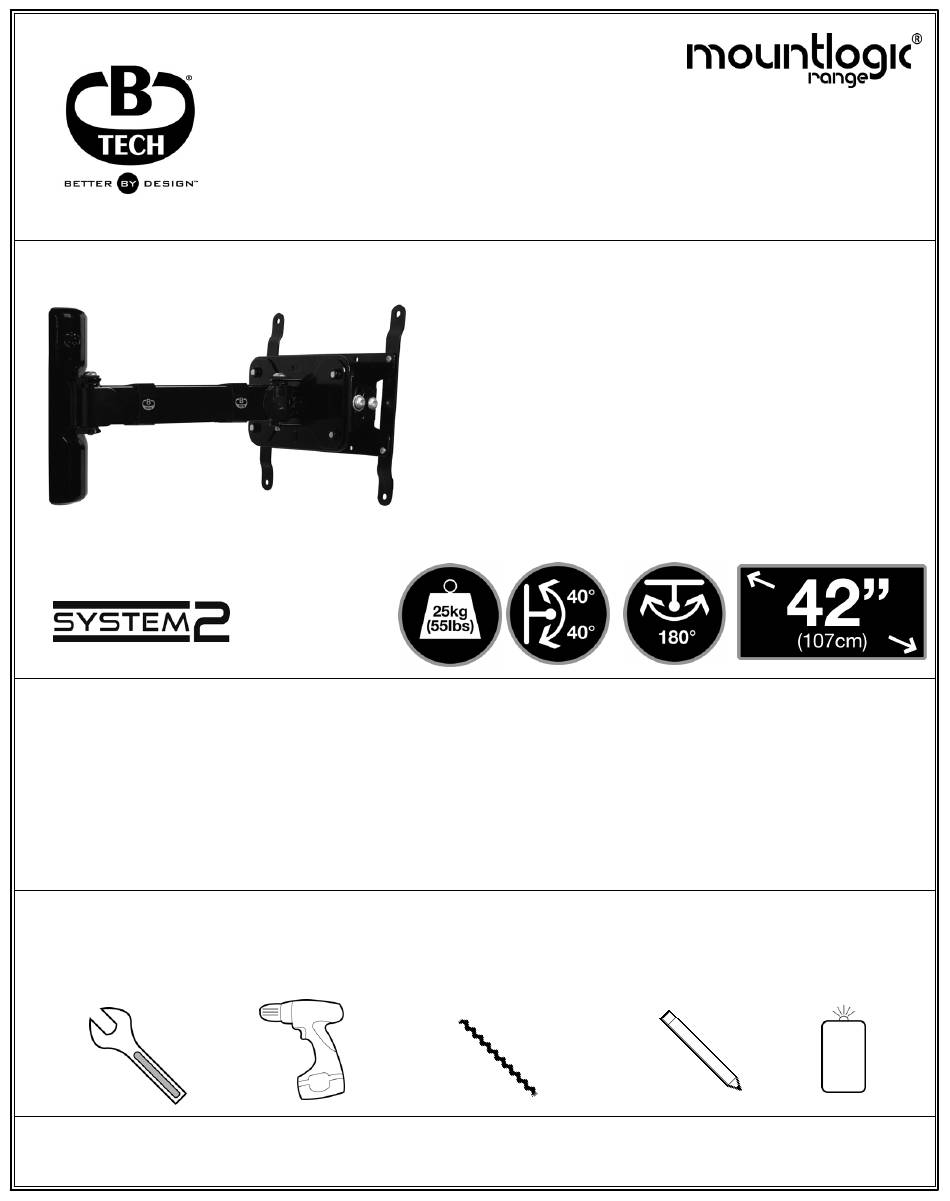

B-TECH AUDIO VIDEO MOUNTS
BT7514

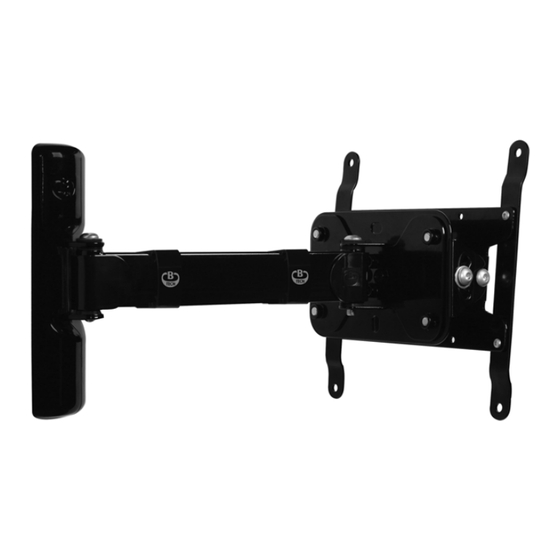

FLAT SCREEN WALL MOUNT
WITH SINGLE ARM EXTENSION , TILT & SWIVEL
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
Drill
10mm (7/16") masonry bit
or 6mm (1/4") wood bit
www.btechavmounts.com
FEATURES
●
Designed for medium flat screens up to 42" (107cm) / 25kg (55lbs)
●
Fits screens with VESA mounting patterns:
75 x 75mm, 100 x 100mm, 200 x 100mm and 200 x 200mm
●
Incorporates post installation screen levelling at wall plate
and screen mount
●
Easy tilt adjustment +/-40° tilt
●
Features two swivel points: 180° at wall and 240° at interface
●
Alternative short-arm included
●
Security locking screws and Allen key provided for a secure installation
●
Simple 'hook-on' installation with all mounting hardware included
Stud finder
Pencil
(optional)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for B-Tech Mountlogic BT7514
Summary of Contents for B-Tech Mountlogic BT7514
-
Page 1: Table Of Contents
Installation Safety Notes........................2 Parts List.............................4 Optional Short Arm..........................6 Installation Instructions........................7 Product Dimensions..........................11 B-Tech Contact Details........................12 INSTALLATION TOOLS REQUIRED 13mm (1/2") spanner Stud finder Drill 10mm (7/16") masonry bit Pencil or socket (optional) or 6mm (1/4") wood bit B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. - Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
-
Page 4: Parts List
BT7514 PARTS LIST WALL PLATE, ARM & TILT PLATE ASSEMBLY Suitable for loads up to 25kg (55lbs) - Page 5 PART NAME WALL PLATE ASSEMBLY LONG EXTENSION ARM CONNECTOR PLATE TILT PLATE INTERFACE PLATE ADAPTOR ARM LEFT COVER RIGHT COVER ARM COVER M8 X 12mm PIN HEX SECURITY SCREW M8 METAL WASHER M8 PLASTIC WASHER M8 X 12mm PIN HEX SECURITY SCREW M8 X 60mm PIN HEX SECURITY SCREW M4 X 8mm PIN HEX SECURITY SCREW CLIPLOGIC™...
-
Page 6: Optional Short Arm
OPTIONAL SHORT ARM Replace part 2 with part 17. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Fix wall plate to the wall using one of the following methods. i. Concrete / brick walls. SHORT ARM A2 A1 10mm (7/16") masonry bit ii. Wood / stud walls. A2 A1 ATTACH COVERS 6mm (1/4") wood bit... - Page 8 Attach the interface to the back of the screen. FLAT SCREEN ii. For 200 x 200mm, attach adaptor arms to interface ATTACH ADAPTORS plate, then attach interface to the back of the screen. 18,19 or 20 A,B,C,D or E FLAT SCREEN...
- Page 9 Hook flat screen on wall plate. 5mm (0.2") (APPROX) FLAT SCREEN WALL FLAT SCREEN Secure in position using parts 10 and 11. WALL FLAT SCREEN...
- Page 10 Adjust tilt and fix in position using parts 10 and 13. +/- 40 ° FLAT SCREEN ™ MAXIMUM CABLE Optional - Cliplogic cable management clip THICKNESS CABLE CABLE 15mm FLAT SCREEN FLAT SCREEN CAUTION: Ensure there is adequate cable slack for movement of the screen, and that cables will not be pinched when the mount is closed.
-
Page 11: Product Dimensions
7.9" (3.4") 100mm 3.9" R78mm (3.1") 75mm 3" 8.5mm 0.3" 8.5mm 0.3" 56mm 220mm 2.2" 8.7" 12° THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. -
Page 12: B-Tech Contact Details
©2010 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design, System 2 and Mountlogic are registered trademarks of Bennett Technologies Limited. All other brands and product names are trademarks of their respective owners.
