REG. DESIGN NO: 3016251
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................15
B-Tech Contact Details.....................................................................................................................16
INSTALLATION TOOLS REQUIRED
13mm (1/2") spanner
or socket

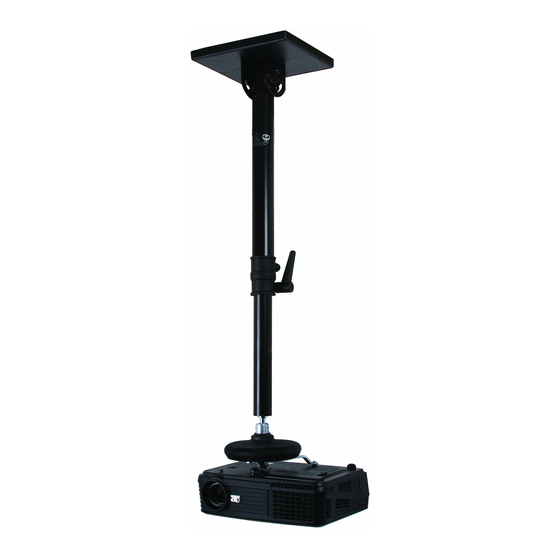

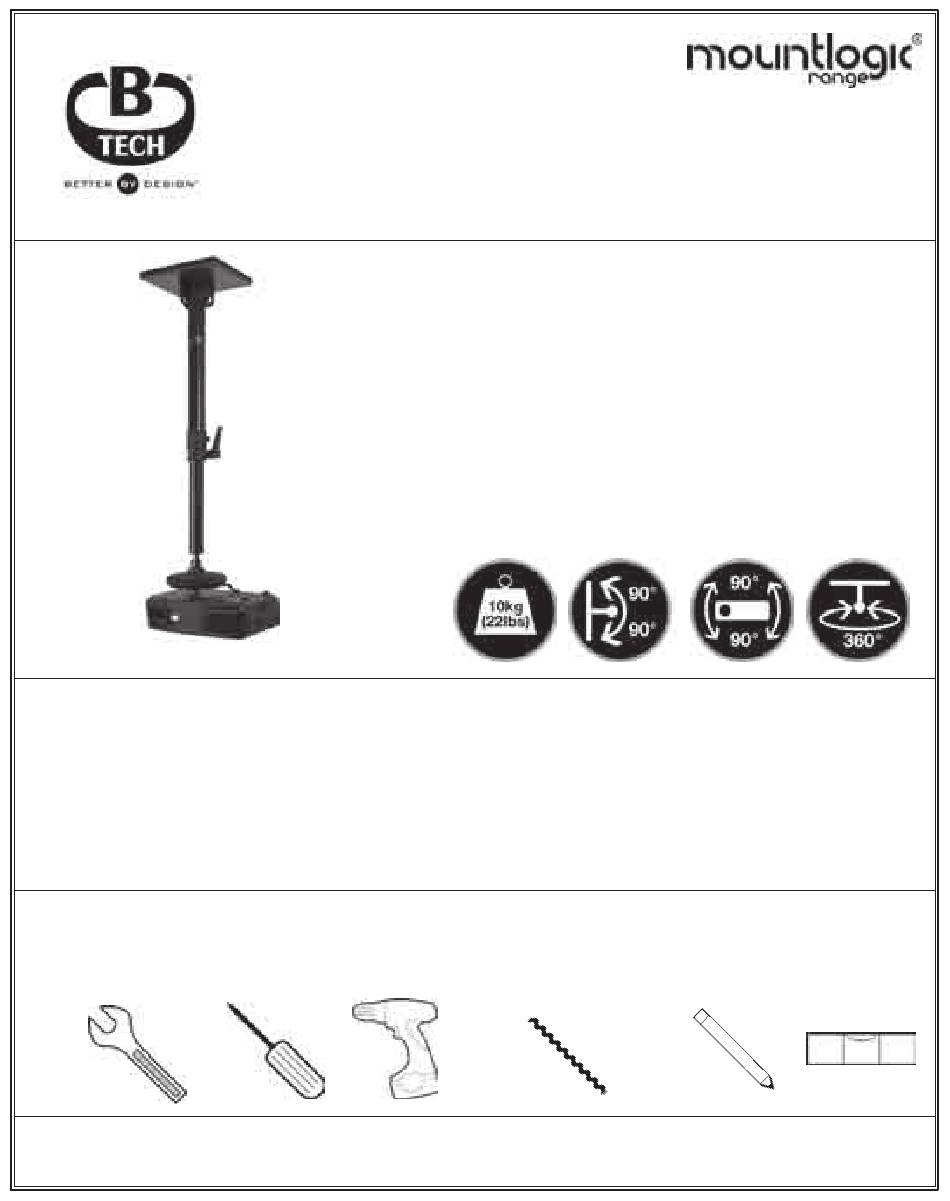

BT882
PROJECTOR CEILING MOUNT
WITH ADJUSTABLE DROP
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
Crosshead
Drill
screwdriver
FEATURES
● Suitable for projectors up to 10kg (22lbs)
● Hand lever for easy adjustment of ceiling drop:
Min 500mm (19.7") – Max 750mm (29.5")
● +/-90° tilt adjustment, +/-90° roll adjustment & 360° swivel
● Unique 'carousel' mounting plate for universal compatibility
● Suitable for angled / cathedral ceilings
● Integrated cable management
● Maximum distance between any two fixing points on
projector: 340mm (13.5")
● Suitable for projectors with M2.5, M3, M4, M5 and M6 fixings
● Simple installation with all mounting hardware and fixings included
12mm (1/2") masonry bit
or 8mm (11/32") wood bit
Pencil
Level
(optional)
Advertisement
Related Manuals for B-Tech BT882
Summary of Contents for B-Tech BT882
- Page 1 ● Simple installation with all mounting hardware and fixings included REG. DESIGN NO: 3016251 CONTENTS Installation Safety Notes........................2 Parts List.............................4 Installation Instructions........................6 Product Dimensions..........................15 B-Tech Contact Details........................16 INSTALLATION TOOLS REQUIRED Crosshead Pencil Level 13mm (1/2") spanner 12mm (1/2") masonry bit...
- Page 2 Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions.
- Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
- Page 4 BT882 PARTS LIST Tube and Ceiling Plate Assembly Interface Assembly Suitable for loads up to 10kg (22lbs)
- Page 5 PART NAME CEILING BRACKET UPPER EXTENSION POLE LOWER EXTENSION POLE ADAPTOR CEILING BRACKET COVER PLATE M8 METAL WASHER M6 X 6mm GRUB SCREW M6 X 10mm GRUB SCREW M8 SPRING WASHER M8 X 20mm HEX SCREW ADJUSTMENT LEVER SECURITY CABLE CAROUSEL THUMBWHEEL LONG LEG...
- Page 6 INSTALLATION INSTRUCTIONS Attach upper extension pole to ceiling plate.
- Page 7 Fix ceiling plate to the ceiling. ONLY USE PART A3 WHEN FIXING TO CONCRETE CEILINGS...
- Page 8 Attach interface assembly to projector. i. Attach legs to projector.
- Page 9 ii. Attach part 4 to carousel and place on legs. iii. Attach the carousel to the legs. Using quick release hand wheels or using secure dome nuts and spacers.
- Page 10 Attach projector to lower extension pole.
- Page 11 Attach the security cable. i. Un-screw the interface screw to attach security cable. ii. Loop the security cable over the leg.
- Page 12 iii. Re-attach the leg to the projector.
- Page 13 Adjusting the projector. i. To adjust drop, loosen hand lever, adjust drop, then re-tighten. UP / DOWN ii. To tilt/roll and swivel, loosen parts 7, adjust and re-tighten. 90° 360°...
- Page 14 Slide cover plates onto interface assembly. Cable managment. CABLE PATH...
- Page 15 BT882 PRODUCT DIMENSIONS INTERFACE PLATE CEILING PLATE 10mm 0.4" 188mm 7.4" 35mm 1.4" 150mm 5.9" 340mm 13.4" 200mm 7.9" 205mm 8.1" 20mm 42mm 0.8" 1.7" 35mm 1.4" 20mm 0.8"...
