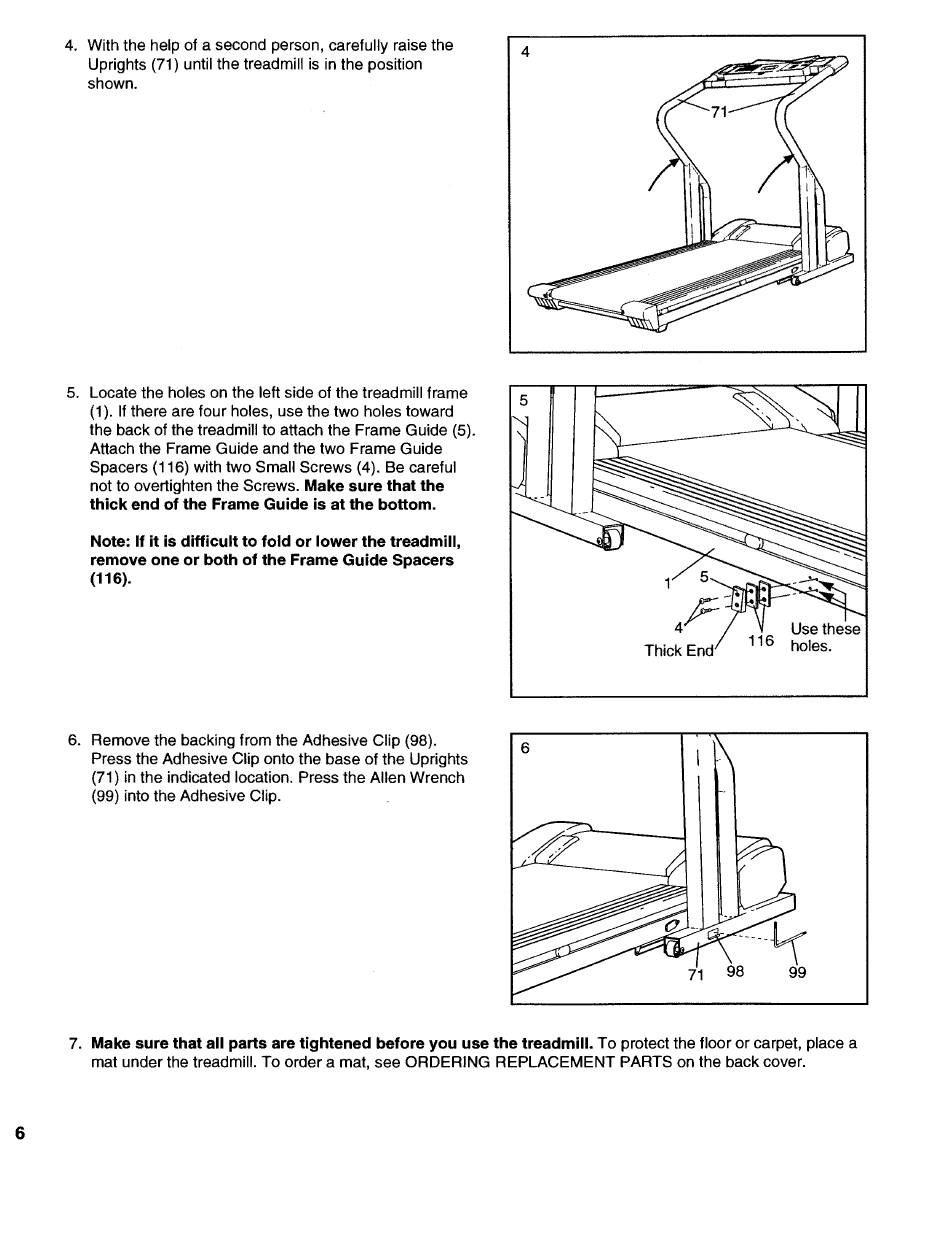

4. Withthehelpofa second person, c arefully raisethe
Uprights (71)untilthetreadmill is intheposition
shown.
,
Locate the holes on the left side of the treadmill frame
(1). If there are four holes, use the two holes toward
the back of the treadmill to attach the Frame Guide (5).
Attach the Frame Guide and the two Frame Guide
Spacers (116) with two Small Screws (4). Be careful
not to overtighten the Screws. Make sure that the
thick end of the Frame Guide is at the bottom.
Note: If it is difficult to fold or lower the treadmill,
remove one or both of the Frame Guide Spacers
(116).
116
Use these
holes.
°
Remove the backing from the Adhesive Clip (98).
Press the Adhesive Clip onto the base of the Uprights
(71) in the indicated location. Press the Allen Wrench
(99) into the Adhesive Clip.
6
7. Make sure that all parts are tightened before you use the treadmill. To protect the floor or carpet, place a
mat under the treadmill. To order a mat, see ORDERING REPLACEMENT PARTS on the back cover.
