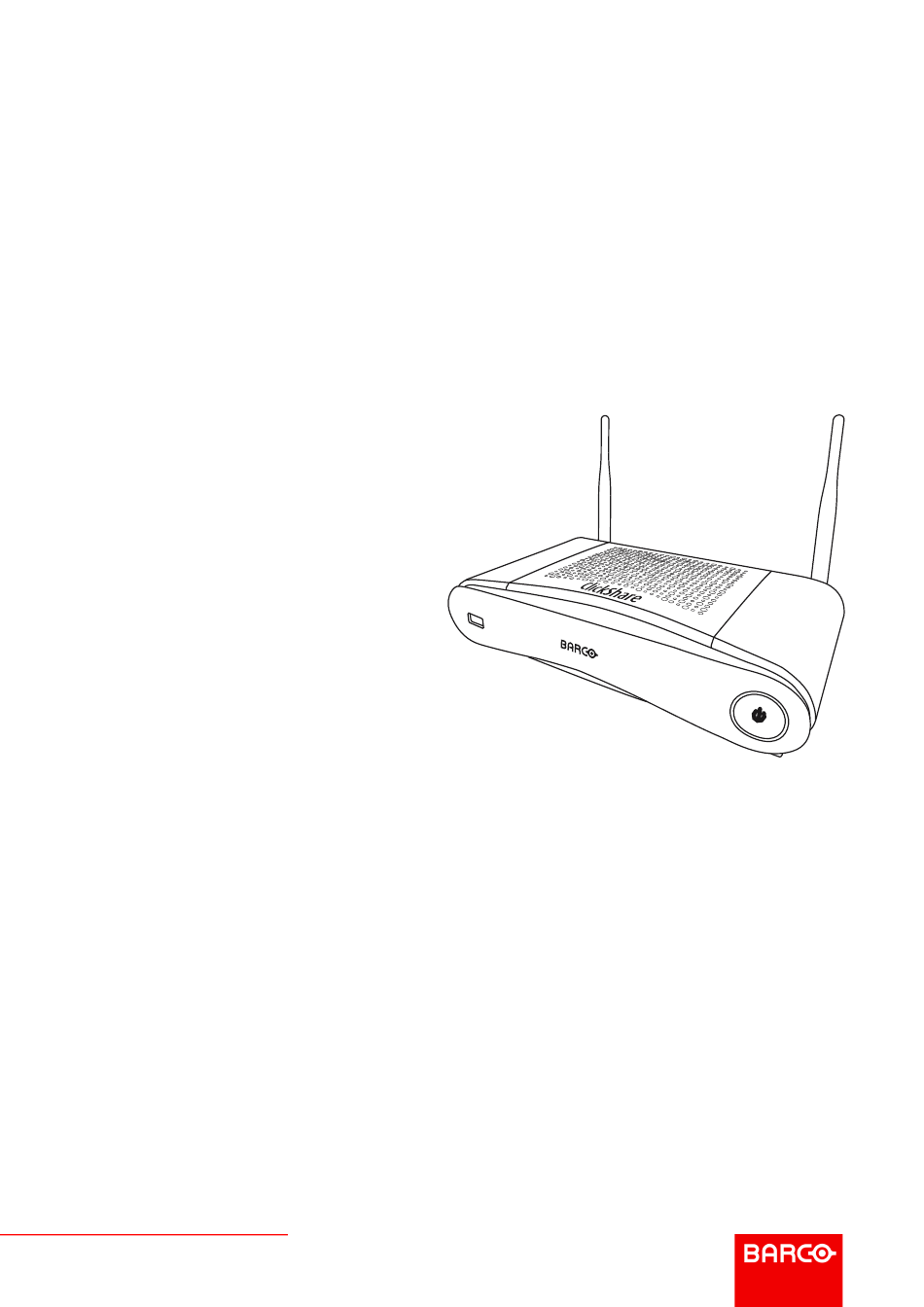

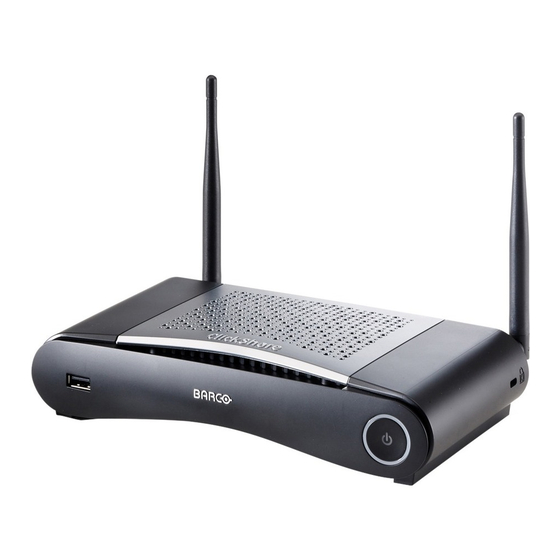

  • Page 1 ClickShare CSE-200 User guide ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
  • Page 4 ClickShare applications (each a “Barco ClickShare Product”). • Term The Software can be used under the terms of this EULA from the date of first use of the Barco ClickShare Product, for as long as you operate such Barco ClickShare Product. •...
  • Page 5 Agreement. “Documentation” means all technical, reference and installation manuals, user guides, published performance specifications and other written documentation provided by Barco generally to its licensees with respect to the Software, along with any modifications and updates thereto; “DRM” means Barco’s digital rights management platform used to provide access to and access conditions of the Software.
  • Page 6 You may own the carrier on which the Software is provided, but the Software is owned and copyrighted by Barco or by third party suppliers. Your license confers no title or ownership and is not a sale of any rights in the Software or its Documentation.
  • Page 7 Software. You agree to install any maintenance releases to address bugs or security issues in the Software if the same are being provided to you. Barco will keep you informed as of when earlier versions of the Software are no longer serviced.
  • Page 8 (especially for components that you provide or control). Barco disclaims any liability for any data not provided by Barco, or any use of the Software outside the intended use as per this License Agreement or an applicable data processing annex.
  • Page 9 11.6 Assignment. You are not allowed to assign this Agreement in part or in full to any third party without Barco’s consent. Barco shall be entitled to assign all or any of Barco's obligations hereunder to a third party and/or any of Barco's Affiliates.
  • Page 10 Open Source Software provisions This product contains software components released under an Open Source license. A copy of the source code is available on request by contacting your Barco customer support representative. EACH SEPARATE OPEN SOURCE SOFTWARE COMPONENT AND ANY RELATED DOCUMENTATION ARE PROVIDED "AS IS"WITHOUT EXPRESS OR IMPLIED WARRANTY INCLUDING, BUT NOT LIMITED...
  • Page 11 PACKAGE VERSION SOURCE SITE lvm2 2.02.168 http://rpm5.org/files/popt popt 1.16 http://free-electrons.com/pub/mirror devmem2 dhcp http://ftp.isc.org/isc/dhcp/4.3.5 4.3.5 dnsmasq http://thekelleys.org.uk/dnsmasq 2.78 dropbear http://matt.ucc.asn.au/dropbear/releases 2017.75 https://cdn.kernel.org/pub/linux/kernel/people/tytso/e2fsprogs/ e2fsprogs 1.43.3 v1.43.3 https://cdn.kernel.org/pub/software/network/ethtool ethtool http://dev.gentoo.org/~blueness/eudev eudev 3.2.1 https://cdn.kernel.org/pub/linux/utils/kernel/kmod kmod http://downloads.sourceforge.net/project/faac/faad2-src/faad2-2.8.0 faad2 2.8.1 ffmpeg http://ffmpeg.org/releases 2.8.6 fontconfig http://fontconfig.org/release 2.12.1 freetype http://download.savannah.gnu.org/releases/freetype 2.7.1...
  • Page 12 PACKAGE VERSION SOURCE SITE libpthsem http://www.auto.tuwien.ac.at/~mkoegler/pth 2.0.8 gst1-plugins-bad https://gstreamer.freedesktop.org/src/gst-plugins-bad 1.10.4 gst1-plugins-base https://gstreamer.freedesktop.org/src/gst-plugins-base 1.10.4 gstreamer1 https://gstreamer.freedesktop.org/src/gstreamer 1.10.4 gst1-plugins-good https://gstreamer.freedesktop.org/src/gst-plugins-good 1.10.4 http://freedesktop.org/software/pulseaudio/releases pulseaudio json-c-0.12- json-c https://github.com/json-c/json-c/archive/json-c-0.12-20140410 20140410 http://ftpmirror.gnu.org/libtool libtool 2.4.6 hostapd http://w1.fi/releases git://git.kernel.org/pub/scm/utils/i2c-tools/i2c-tools.git i2c-tools v3.1.2 https://github.com/gandro/input-event-daemon/archive/v0.1.3 input-event-daemon v0.1.3 iperf http://downloads.sourceforge.net/project/iperf2 2.0.9 iptables http://ftp.netfilter.org/pub/iptables 1.6.1 https://cdn.kernel.org/pub/software/network/iw...
  • Page 13 PACKAGE VERSION SOURCE SITE libpthread-stubs http://xcb.freedesktop.org/dist libqrencode http://fukuchi.org/works/qrencode 3.4.2 https://github.com/dottedmag/libsha1/archive/0.3 libsha1 https://github.com/libusb/libusb/releases/download/v1.0.20 libusb 1.0.20 lighttpd http://download.lighttpd.net/lighttpd/releases-1.4.x 1.4.45 http://snapshot.debian.org/archive/debian/20170208T211941Z/ pool/main/l/lm-sensors lm-sensors 3.4.0 logrotate https://github.com/logrotate/logrotate/archive/3.11.0 3.11.0 http://pyropus.ca/software/memtester/old-versions memtester 4.3.0 http://mmonit.com/monit/dist monit 5.20.0 nodejs http://nodejs.org/dist/v6.11.5 6.11.5 4.2.8p10 https://www.eecis.udel.edu/~ntp/ntp_spool/ntp4/ntp-4.2 http://www.php.net/distributions 7.1.7 sqlite http://www.sqlite.org/2017 3160200 protobuf https://github.com/google/protobuf/archive/v2.6.1 v2.6.1...
  • Page 14 PACKAGE VERSION SOURCE SITE ftp://ftp.infradead.org/pub/mtd-utils 1.5.2 procps-ng http://downloads.sourceforge.net/project/procps-ng/Production 3.3.12 http://downloads.sourceforge.net/project/strace/strace/4.15 strace 4.15 hidapi https://github.com/signal11/hidapi 0.5.2 https://mirrors.edge.kernel.org/pub/linux/kernel/v3.x/ linux 3.1.0 http://sourceforge.jp/projects/efont/downloads/10087 sazanami-fonts 20040629 http://kldp.net/frs/download.php/1425 unfonts dejavu-fonts http://downloads.sourceforge.net/project/dejavu/dejavu/2.34 2.34 arphic-uming-fonts http://archive.ubuntu.com/ubuntu/pool/main/t/ttf-arphic-uming 20080216 EN55032-CISPR32 Class B ITE (Information Technology Equipment) This is a class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 15 The radiated output power of the Barco Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Barco Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized.
  • Page 16 Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l'appareil de sans fil Barco est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l'appareil de sans fil Barco de façon à minimiser les contacts humains lors du fonctionnement normal.

  • Page 17: Table Of Contents

    Basic Use ......................................30 User Interface .....................................32 Capture more ......................................33 Shared desktop: primary - extended............................34 Audio configuration ..................................36 Pairing ........................................37 Touchback......................................39 4 Troubleshooting......................................41 Basic Troubleshooting..................................42 5 Environmental information ..................................45 Disposal information..................................46 Rohs compliance....................................46 Production address..................................48 Importers contact information ..............................48 R5900025 /08 ClickShare CSE-200...
  • Page 18 R5900025 /08 ClickShare CSE-200...

  • Page 19: Introduction

    Introduction Overview • Versions of the product • About this guide • Symbols and fonts R5900025 /08 ClickShare CSE-200...

  • Page 20: Versions Of The Product

    The User Guide describes how to use your CSE-200. It also contains a basic troubleshooting part where you can search for a solution when a problem occurs. 1.3 Symbols and fonts Symbol overview The following icons are used in the manual : Caution Warning Info, term definition. General info about the term R5900025 /08 ClickShare CSE-200...
  • Page 21 Menu items are indicated in italic. • Step related notes, tips, warnings or cautions are printed in italic. • Procedure related notes, tips, warnings or cautions are printed in bold between 2 lines preceded by the corresponding icon. R5900025 /08 ClickShare CSE-200...
  • Page 22 Introduction R5900025 /08 ClickShare CSE-200...

  • Page 23: Introduction To Cse-200

    Introduction to CSE- Overview • About the CSE-200 • About the Base Unit • About the Button • Mobile Device Support R5900025 /08 ClickShare CSE-200...

  • Page 24: About The Cse-200

    Printed safety manual R9861500D01 1x R9861500D01 R9861500D01C 1x R9861500D01C Contact your local sales representative for the correct regional variant to be used in your country. xx=EU, CN, NA, Included AC clips can be different according to the region R5900025 /08 ClickShare CSE-200...

  • Page 25: About The Base Unit

    Button is done. You can now unplug the Button from the Base Unit. • during the first phase of the Base Unit boot process. blinking white • system is starting up (during the second phase) • Button pairing is in progress R5900025 /08 ClickShare CSE-200...

  • Page 26: About The Button

    (for pairing the Button to the Base Unit or updating its software). Button R9861500D1 has a USB Type-A connector, Button R9861500D1C has a USB Type-C connector. Depending on the type of USB port on your laptop or on the Base Unit a convertor must be use. R5900025 /08 ClickShare CSE-200...

  • Page 27: Mobile Device Support

    Before you can use your mobile device with ClickShare, you have to connect the mobile device Wi-Fi with the ClickShare Base Unit Wi-Fi. Follow the instructions as given in your mobile device user guide. Logo Used on ClickShare App Android R5900025 /08 ClickShare CSE-200...
  • Page 28 Introduction to CSE-200 R5900025 /08 ClickShare CSE-200...

  • Page 29: Getting Started

    Getting started Overview • Activating the base unit • Basic Use • User Interface • Capture more • Shared desktop: primary - extended • Audio configuration • Pairing • Touchback R5900025 /08 ClickShare CSE-200...

  • Page 30: Activating The Base Unit

    ClickShare wallpaper is shown on the display. The content of the wallpaper depends on the setup. Starting to use ClickShare is now very simple. To start using ClickShare Take a Button and Insert the Button into a USB port of your laptop. When necessary, use a USB convertor. R5900025 /08 ClickShare CSE-200...
  • Page 31 On your laptop a new drive appears. Two situations are possible now: • A launcher is preinstalled on your laptop (downloaded from the Base Unit or Barco website, or deployed company-wide by your IT department). ClickShare is immediately available. You can continue with . •...

  • Page 32: User Interface

    The content of the context menu is related to the operating system. Right-click the ClickShare icon in the system tray. The context menu appears. Image 3-6: Context menu From the list, click the action you want to perform. R5900025 /08 ClickShare CSE-200...

  • Page 33: Capture More

    In this mode, video throughput may decrease a bit and more details will be captured. Default setting: Checked, capture more is enabled. How to change Right click on the ClickShare icon in the system tray (1). Image 3-7: Change capture mode R5900025 /08 ClickShare CSE-200...

  • Page 34: Shared Desktop: Primary - Extended

    Image 3-8 Primary screen displayed on the PC, extended screen displayed on the meeting room display. Image 3-9 PC with one extended screen connected. That extended screen will be captured and displayed on the meeting room display. R5900025 /08 ClickShare CSE-200...
  • Page 35 More that one extended desktop can be shown, e.g. extended desktop (center) and extended desktop (right). Select Shared Desktop (2). Select the desired setting (3). Primary : the primary PC screen is displayed on the meeting room display. Extended always the secondary screen is displayed on the meeting room display. R5900025 /08 ClickShare CSE-200...

  • Page 36: Audio Configuration

    Select Speakers ClickShare (3) and click Set default (4). Click Apply or OK to activate the new setting. Set ClickShare as default on MAC Click on the Apple logo on the menu bar (1) and select System Preferences..(2). R5900025 /08 ClickShare CSE-200...

  • Page 37: Pairing

    If desired, this feature can be disabled in the Web Interface. When downgrading or updating to an older version of the Base Unit software the Buttons need to paired manually to update their software and that only in case the Button update over Wi-Fi is disabled. R5900025 /08 ClickShare CSE-200...
  • Page 38 You can unplug the Button from the Base Unit. • When the LEDs become static red, the Button is paired to the Base Unit and the software update has finished. You can unplug the Button from the Base Unit. R5900025 /08 ClickShare CSE-200...

  • Page 39: Touchback

    Base Unit without plugging the Buttons to the Base Unit. The Buttons are plugged in to your laptop. For more information about the Button Manager, consult the Button Manager’s user guide which can be downloaded from Barco’s website. 3.8 Touchback About touchback The Touchback feature enables more interactive meetings.
  • Page 40 Getting started R5900025 /08 ClickShare CSE-200...

  • Page 41: Troubleshooting

    Troubleshooting R5900025 /08 ClickShare CSE-200...

  • Page 42: Basic Troubleshooting

    Briefly push the standby button on the Base Unit or plug in a Button and run the ClickShare client software. The Base Unit is powered off. Check if power adapter is connected to the Base unit and to the wall outlet. R5900025 /08 ClickShare CSE-200...
  • Page 43 Capture mode Barco knowledge base and YouTube videos Go to the product page on Barco’s website and select in the right column Support. You will get access to Barco’s Knowledge base and Latest tutorial videos. For more YouTube videos, consult https://www.youtube.com/user/barcoTV...
  • Page 44 Troubleshooting R5900025 /08 ClickShare CSE-200...

  • Page 45: Environmental Information

    Environmental information R5900025 /08 ClickShare CSE-200...

  • Page 46: Disposal Information

    Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 47 Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.

  • Page 48: Production Address

    The month and year of production is indicated on the product ID label on the product itself. 5.4 Importers contact information Contact To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. R5900025 /08...
  • Page 49 Environmental information R5900025 /08 ClickShare CSE-200...
  • Page 50 R5900025 /08 | 2018-12-06 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com...
