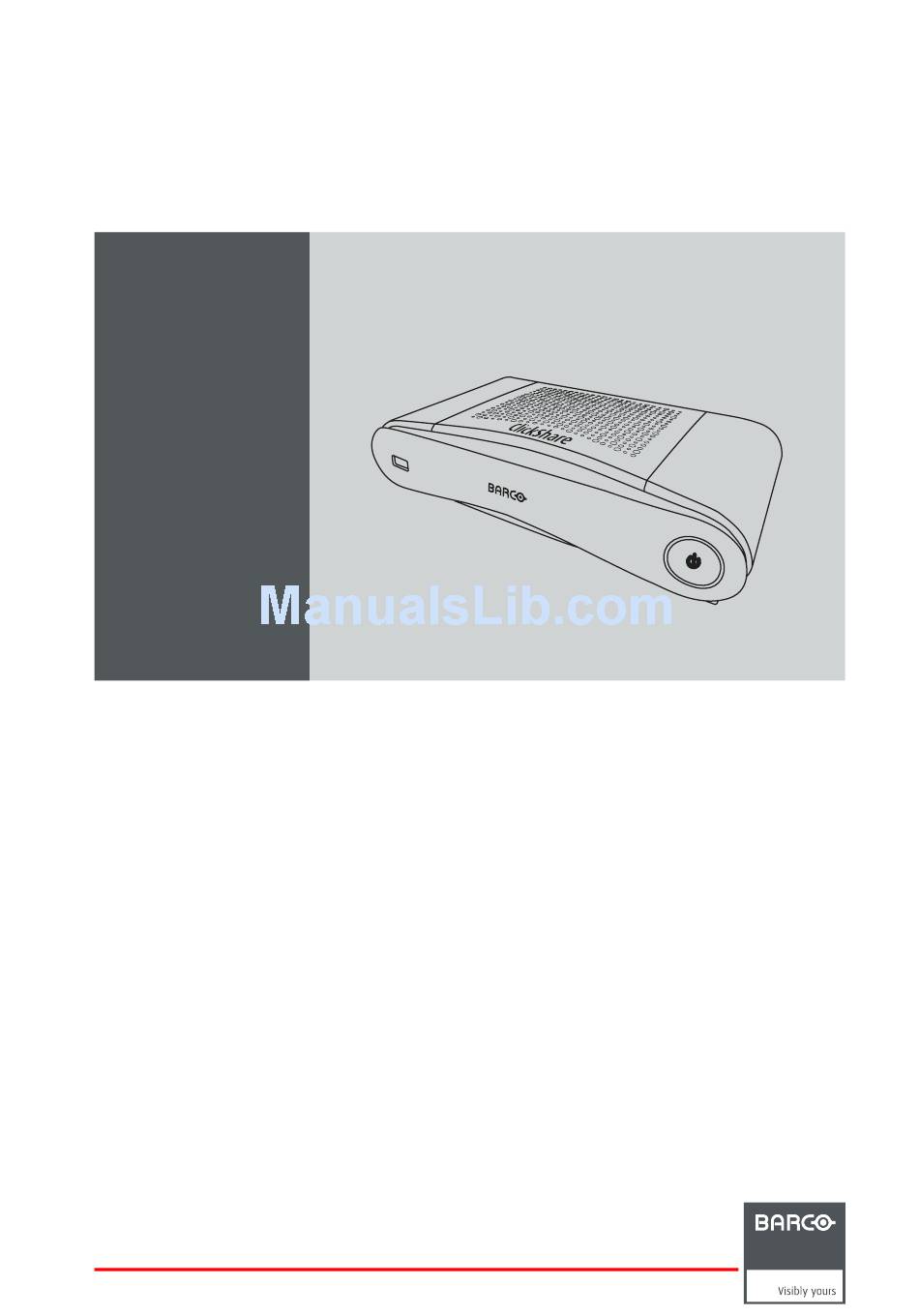

  • Page 1 ClickShare CS-100 User guide R5900024/05 19/03/2018...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com Registered address: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com...
  • Page 3 ClickShare base unit and button or download of the authorized ClickShare applications (each a “Barco ClickShare Product”). • Term The Software can be used under the terms of this EULA from the date of first use of the Barco ClickShare Product, for as long as you operate such Barco ClickShare Product. •...
  • Page 4 The Software contains software components released under an Open Source license. A list of the third party components used is available in the Software’s README files, through the “My Barco” section of the Barco website or through other (online) means. The applicable license terms, copyright notices and, as relevant, source code access con- ditions apply as set out in the Barco EULA attached hereto.
  • Page 5 Barco and its suppliers reserve all rights not expressly granted to you. You may own the carrier on which the Software is provided, but the Software is owned and copyrighted by Barco or by third party suppliers. Your license confers no title or ownership and is not a sale of any rights in the Software or its Documentation.
  • Page 6 DRM or otherwise in writing, (i) which condition of the License Agreement (including payment terms) is violated; (ii) allow a period of 8 calendar days to cure such breach, if it can be cured at all; and (iii) inform which part of the functionality Barco intends to reduce (all Software or certain additionally licensed features only;...
  • Page 7 Software or other trade secrets (the access to which is strictly limited as expressly set out herein), (ii) any information designated as confidential by Barco or which has the necessary quality of confidence about it and (iii) any license key provided by Barco to you hereunder.
  • Page 8 Software after termination of this License Agreement. 11.6 Assignment. You are not allowed to assign this Agreement in part or in full to any third party without Barco’s consent. Barco shall be entitled to assign all or any of Barco’s obligations hereunder to a third party and/or any of Barco’s Affiliates.
  • Page 9 htop http://hisham.hm/htop/releases/2.0.2 i2c-tools git://git.kernel.org/pub/scm/utils/i2c-tools/i2c-tools.git imxbootlet http://download.ossystems.com.br/bsp/freescale/source imx-codec http://www.freescale.com/lgfiles/NMG/MAD/YOCTO imx-gpu-viv http://www.freescale.com/lgfiles/NMG/MAD/YOCTO imx-lib http://www.freescale.com/lgfiles/NMG/MAD/YOCTO imx-parser http://www.freescale.com/lgfiles/NMG/MAD/YOCTO imx-vpu http://www.freescale.com/lgfiles/NMG/MAD/YOCTO imx-vpuwrap http://www.freescale.com/lgfiles/NMG/MAD/YOCTO input-event-daemon https://github.com/gandro/input-event-daemon/archive/v0.1.3 iperf http://downloads.sourceforge.net/project/iperf2 iptables http://ftp.netfilter.org/pub/iptables https://cdn.kernel.org/pub/software/network/iw jpeg-turbo http://downloads.sourceforge.net/project/libjpeg-turbo/1.5.1 json-c https://github.com/json-c/json-c/archive/json-c-0.12-20140410 kmod https://cdn.kernel.org/pub/linux/utils/kernel/kmod lame http://downloads.sourceforge.net/project/lame/lame/3.100 libarchive http://www.libarchive.org/downloads libassuan ftp://ftp.gnupg.org/gcrypt/libassuan libbsd http://libbsd.freedesktop.org/releases libcap https://www.kernel.org/pub/linux/libs/security/linux-privs/libcap2 libconfig http://www.hyperrealm.com/libconfig...
  • Page 10 libimxvpuapi https://github.com/Freescale/libimxvpuapi/archive/0.10.3 libinput http://www.freedesktop.org/software/libinput libjpeg http://www.ijg.org/files libksba ftp://ftp.gnupg.org/gcrypt/libksba liblogging http://download.rsyslog.com/liblogging libmad http://downloads.sourceforge.net/project/mad/libmad/0.15.1b libmpeg2 http://libmpeg2.sourceforge.net/files libnl https://github.com/thom311/libnl/releases/download/libnl3_2_27 libogg http://downloads.xiph.org/releases/ogg libpciaccess http://xorg.freedesktop.org/releases/individual/lib libpng http://downloads.sourceforge.net/project/libpng/libpng16/1.6.28 libpthread-stubs http://xcb.freedesktop.org/dist libpthsem http://www.auto.tuwien.ac.at/~mkoegler/pth libqrencode http://fukuchi.org/works/qrencode libresample ftp://ftp.ubuntu.com/ubuntu/pool/universe/libr/libresample libsamplerate http://www.mega-nerd.com/SRC libselinux https://raw.githubusercontent.com/wiki/SELinuxProject/selinux/files/releases/20161014 libsepol https://raw.githubusercontent.com/wiki/SELinuxProject/selinux/files/releases/20161014 libsha1 https://github.com/dottedmag/libsha1/archive/0.3 libsndfile http://www.mega-nerd.com/libsndfile/files libtool http://ftpmirror.gnu.org/libtool libusb...
  • Page 11 ftp://ftp.infradead.org/pub/mtd-utils mtdev http://bitmath.org/code/mtdev ncurses http://ftpmirror.gnu.org/ncurses netcat http://downloads.sourceforge.net/project/netcat/netcat/0.7.1 nodejs https://nodejs.org/dist/ https://www.eecis.udel.edu/~ntp/ntp_spool/ntp4/ntp-4.2 openssl http://www.openssl.org/source openssl http://www.openssl.org/source opkg http://git.yoctoproject.org/git/opkg opus http://downloads.xiph.org/releases/opus opus-tools http://downloads.xiph.org/releases/opus pciutils https://cdn.kernel.org/pub/software/utils/pciutils pcre https://ftp.pcre.org/pub/pcre http://www.php.net/distributions pixman http://xorg.freedesktop.org/releases/individual/lib popt http://rpm5.org/files/popt procps-ng http://downloads.sourceforge.net/project/procps-ng/Production protobuf https://github.com/google/protobuf/archive/v2.6.1 pulseaudio http://freedesktop.org/software/pulseaudio/releases python3 http://python.org/ftp/python/3.5.2 https://pypi.python.org/pack- python-pyyaml ages/4a/85/db5a2df477072b2902b0eb892feb37d88ac635d36245a72a6a69b23b383a https://pypi.python.org/pack- python-serial ages/ce/9c/694ce79a9d4a164e109aeba1a40fba23336f3b7554978553e22a5d41d54d...
  • Page 12 tpm-tools http://downloads.sourceforge.net/project/trousers/tpm-tools/1.3.8 trousers http://downloads.sourceforge.net/project/trousers/trousers/0.3.13 tslib https://github.com/kergoth/tslib/releases/download/1.5 tzdata http://www.iana.org/time-zones/repository/releases unfonts http://kldp.net/frs/download.php/1425 unzip ftp://ftp.info-zip.org/pub/infozip/src util-linux https://cdn.kernel.org/pub/linux/utils/util-linux/v2.29 wireless_tools http://www.hpl.hp.com/personal/Jean_Tourrilhes/Linux wireless-regdb http://kernel.org/pub/software/network/wireless-regdb wpa_supplicant http://w1.fi/releases xapp_beforelight http://xorg.freedesktop.org/releases/individual/app xapp_xauth http://xorg.freedesktop.org/releases/individual/app xapp_xclock http://xorg.freedesktop.org/releases/individual/app xapp_xinit http://xorg.freedesktop.org/releases/individual/app xapp_xinput http://xorg.freedesktop.org/releases/individual/app xapp_xinput-calibrator http://github.com/downloads/tias/xinput_calibrator xapp_xkbcomp http://xorg.freedesktop.org/releases/individual/app xapp_xrandr http://xorg.freedesktop.org/releases/individual/app xcb-proto http://xcb.freedesktop.org/dist xcb-util http://xcb.freedesktop.org/dist xcb-util-image http://xcb.freedesktop.org/dist xcb-util-keysyms...
  • Page 13 xlib_libXdmcp http://xorg.freedesktop.org/releases/individual/lib xlib_libXext http://xorg.freedesktop.org/releases/individual/lib xlib_libXfixes http://xorg.freedesktop.org/releases/individual/lib xlib_libXfont2 http://xorg.freedesktop.org/releases/individual/lib xlib_libXft http://xorg.freedesktop.org/releases/individual/lib xlib_libXi http://xorg.freedesktop.org/releases/individual/lib xlib_libXinerama http://xorg.freedesktop.org/releases/individual/lib xlib_libxkbfile http://xorg.freedesktop.org/releases/individual/lib xlib_libXmu http://xorg.freedesktop.org/releases/individual/lib xlib_libXpm http://xorg.freedesktop.org/releases/individual/lib xlib_libXrandr http://xorg.freedesktop.org/releases/individual/lib xlib_libXrender http://xorg.freedesktop.org/releases/individual/lib xlib_libXres http://xorg.freedesktop.org/releases/individual/lib xlib_libXScrnSaver http://xorg.freedesktop.org/releases/individual/lib xlib_libxshmfence http://xorg.freedesktop.org/releases/individual/lib xlib_libXt http://xorg.freedesktop.org/releases/individual/lib xlib_libXv http://xorg.freedesktop.org/releases/individual/lib xlib_libXxf86vm http://xorg.freedesktop.org/releases/individual/lib xlib_xtrans http://xorg.freedesktop.org/releases/individual/lib xproto_bigreqsproto http://xorg.freedesktop.org/releases/individual/proto xproto_compositeproto http://xorg.freedesktop.org/releases/individual/proto xproto_damageproto...
  • Page 14 xproto_xineramaproto http://xorg.freedesktop.org/releases/individual/proto xproto_xproto http://xorg.freedesktop.org/releases/individual/proto xserver_xorg-server https://xorg.freedesktop.org/archive/individual/xserver xterm http://invisible-mirror.net/archives/xterm xutil_util-macros http://xorg.freedesktop.org/releases/individual/util zbar https://github.com/ZBar/Zbar/archive/854a5d97059e395807091ac4d80c53f7968abb8f ftp://ftp.info-zip.org/pub/infozip/src zlib http://www.zlib.net EN55032-CISPR32 Class B ITE (Information Technology Equipment) This is a class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 15 Informations concernant l’exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil Barco est inférieure à la limite d’exposition aux fréquences radio d’Industry Canada (IC). Utilisez l’appareil de sans fil Barco de façon à minimiser les contacts humains lors du fonctionnement normal.
  • Page 16 Le présent émetteur radio 9393B-R9861510 a été approuvé par Industrie Canada pour fonctionner avec les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur. Type: PIFA Gain maximum: 5.85 dBi Impédance: 50 Ohm...

  • Page 17: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Introduction ......................3 Versions of the product .
  • Page 18 Table of contents R5900024 CLICKSHARE CS-100 19/03/2018...

  • Page 19: Introduction

    A printed copy of the Safety Guide and an electronic version on USB stick of the user and installation guide is included in the CS-100 box at purchase. Always check for the latest version of the manual on www.barco.com/clickshare Click on Visit the ClickShare product page and go to tab Downloads..

  • Page 20: Symbols And Fonts

    1. Introduction The User Guide describes how to use your CS-100. It also contains a basic troubleshooting part where you can search for a solution when a problem occurs. Symbols and fonts Symbol overview The following icons are used in the manual : Caution Warning Info, term definition.

  • Page 21: Introduction To Cs-100

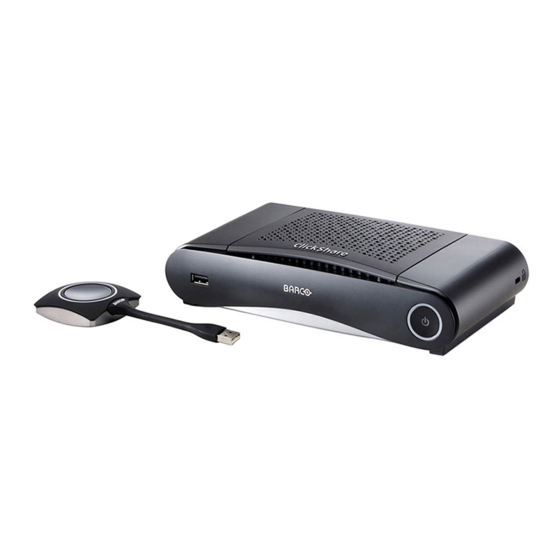

    2. Introduction to CS-100 2. INTRODUCTION TO CS-100 Overview • About the CS-100 • About the Base Unit • About the Button • Mobile Device Support About the CS-100 CS-100 sets CS-100 makes connecting to the meeting room’s video system a matter of clicking a Button. This CS-100 only helps the presenter get the presentation on-screen in a second, but it also allows the other people in the meeting to participate more actively.

  • Page 22: About The Base Unit

    2. Introduction to CS-100 About the Base Unit Base Unit functionality The Base Unit receives the wireless input from the Buttons and controls the content of the meeting room display and the sound of the meeting room’s audio system. The Base Unit can be inside a cabinet in the meeting room, or put on the meeting room table or mounted on a wall. Check the Installation Guide for instructions on how to install the Base Unit.

  • Page 23: About The Button

    2. Introduction to CS-100 Bluetooth Bluetooth functionality is currently not available and Bluetooth signal is disabled. About the Button Button functionality A Button contains three main functional components. Image 2-3 The Button USB connector Button LED ring Table 2-5 Handle the Button cable with care. Rough handling might cause defects. USB connector Using the USB connector the Button can be plugged into a laptop (for sharing your screen) or in the Base Unit (for pairing the Button to the Unit or updating its software).

  • Page 24: Mobile Device Support

    2. Introduction to CS-100 Mobile Device Support Overview The below list of Apps are supported by ClickShare and can be installed on your mobile device from Google Play or Apple App Store. Before you can use your mobile device with ClickShare, you have to connect the mobile device Wi-Fi with the ClickShare Base Unit Wi-Fi.

  • Page 25: Getting Started

    3. Getting started 3. GETTING STARTED Overview • Activating the base unit • Basic Use • User Interface • Capture more • Shared desktop: primary - extended • Audio configuration • Pairing Activating the base unit About power mode The Base Unit is powered via an external power adapter. Once connected, the Base Unit is automatically switched in standby mode. For more information about power connection, see CS-100’s installation manual.
  • Page 26 On your laptop a new drive appears. Two situations are possible now: A launcher is preinstalled on your laptop (downloaded from the Base Unit or Barco website, or deployed company-wide by your IT department). ClickShare is immediately available. You can continue with step 4.

  • Page 27: User Interface

    3. Getting started The ClickShare client software starts and its icon appears in the system tray. On a Windows computer: On a Macintosh: When the system is ready for use, a message appears close to the systray icon. Image 3-5 The LEDs of the Button are static white.

  • Page 28: Capture More

    3. Getting started 2. From the list, click the action you want to perform. Click Result Start sharing to show your screen on the display. The LEDs of your Button become red. Show me fullscreen to bring the content of your screen on The screens of other users that were the display full screen.

  • Page 29: Shared Desktop: Primary - Extended

    3. Getting started Starting the client automatically in Capture More The Capture more mode can be started by default so that the Aero Glass settings are not disabled. To do so, an environment variable should be introduced in your windows. Ask you administrator or consult your windows documentation to find out how to create. The following variable should be introduced : Variable Value...
  • Page 30 3. Getting started Image 3-10 PC with two extended screens connected. The first extended screen, screen 2 will always be captured and displayed on the meeting room display. To know if your system supports the extended desk top feature, press Window key + P. It should bring up the following pop-up on screen: Image 3-11 How to select...

  • Page 31: Audio Configuration

    3. Getting started Known issue • Virtual Extended Desktop requires the ClickShare Extension Pack to be installed on Windows 8 and Windows 10 systems. Audio configuration Audio configuration The connected user must control his own audio signal using the audio configuration of his computer. If he does not want to broadcast his audio signal, he has to mute audio on his computer.

  • Page 32: Pairing

    3. Getting started Image 3-14 Speakers ClickShare, default 2. Click on the Speaker icon (3). The Sound window opens. 3. Select the Output tab (4) and activate ClickShare (5). Short way to select ClickShare as audio device: Click with the mouse on the Speaker symbol in the menu bar while holding ALT.
  • Page 33 3. Getting started A Button can only be paired to one Base Unit at a time. The Button will always make connection to the Base Unit it was last paired to. To pair a Button to the Base unit 1. Insert the Button in the USB port at the front of the Base Unit you are using. Image 3-15 Pair button Both the LEDs of the Button and the LEDs of the Base Unit are blinking white.
  • Page 34 3. Getting started R5900024 CLICKSHARE CS-100 19/03/2018...

  • Page 35: Troubleshooting

    4. Troubleshooting 4. TROUBLESHOOTING Basic Troubleshooting Problem solving In this chapter some problems that might occur while using CS-100 are listed. For each problem possible causes are given and a solution is proposed. If you cannot solve the problem yourself, please contact your local IT administrator. Problem Cause Solution...
  • Page 36 4. Troubleshooting Problem Cause Solution After inserting the Button into your laptop, No automatic refresh of drives. Refresh the view on your laptop. you cannot find the ClickShare drive. Bad connection at USB port on laptop. • Reconnect to the USB port. •...

  • Page 37: Environmental Information

    (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 38 Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...

  • Page 39: Production Address

    The month and year of production is indicated on the product ID label on the product itself. Importers contact information Contact To find your local importer, contact Barco directly or one of Barco’s regional offices via the contact information given on Barco’s web site, www.barco.com. R5900024 CLICKSHARE CS-100 19/03/2018...
