Barco Event Master E2 Quick Start Manual

MULTIVIEWER (MVR)
M1
MENU
M1: Select MVR Sources - From
the dropdown menus select the
Inputs, Backgrounds, and
Destinations you want to view
and drop them into Multiviewer
Outputs. Overlapping is not
allowed. An MVR source may be
used twice. A maximum total of
63 windows can be used for
Inputs and 63 windows can be
used for Outputs.
M2: Adjust Window - Adjust the
size, position and the color
parameters associated with each
window. Repeat for all Inputs and
save.
S1
SETTINGS MENU
S1: Options - On the Options tab
click on the boxes to select system
wide user preferences such as
Layer positioning.
S2: Tools - Allows users to
perform Backup and Restore
operations or download the latest
software from the Barco website
S3: Dashboard - Provides status
information regarding the cards
and other system diagnostic
information.
Linking
An Event Master unit can link with other
Event Master units. Depending on the
linking configuration, linked units share
inputs, and they expand the number of layers and outputs. For more information on linking, see Section 6.17 "Configuration Menu > Linking in the Event
Master Devices User's Guide, or see the instructional videos on the Barco Folsom IP YouTube site.
For links to other quick-start guides and the Event Master Devices User's Guide, see the Technical Downloads tab for each product on the Barco
Presentation switchers page at: https://www.barco.com/en/Products/Image-processing/Presentation-switchers
For links to instructional videos, see the Barco Folsom IP YouTube site at:
Link Connections
1. Check the cable orientation for keying. The cable fits in only one orientation.
2. Fully insert the cable into the connector on the Link Card.
3. If the cable resists full insertion, do not force it; pull the cable out, check its
orientation, and reinsert it.
4. Make sure that the latch is properly engaged.
5. Always use the release when removing the cable.
Improper insertion or removal of Link cables can damage the
connectors and is not covered under the product warranty.
Example: Linking a pair of E2s
Be sure that you properly align the Link cable connectors prior to insertion.
Connectors should insert easily with almost no resistance, until the lock is
about to engage. Be sure that the lock engages fully to ensure proper
contact. Make sure that you use the locking mechanism and then push
each cable until it locks in place.
1. Connect the Link cables provided with each E2 between the Link
connectors as follows:
• VP ID 0, Link Card slot 1, Link 1 >> VP ID 1, Link Card slot 1, Link 2
• VP ID 0, Link Card slot 1, Link 2 >> VP ID 1, Link Card slot 1, Link 1
• VP ID 0, Link Card slot 2, Link 1 >> VP ID 1, Link Card slot 2, Link 2
• VP ID 0, Link Card slot 2, Link 2 >> VP ID 1, Link Card slot 2, Link 1
M2
S2 S3
Dashboard
a quick glance of your E2
Inputs Outputs Other
Card Status
Slot ID Expansion Actions
Ready √ Run Diagnostics
0 Expansion
Ready √ Run Diagnostics
1 Expansion
Ready
√ Run Diagnostics
2 Input
Ready √ Run Diagnostics
3 Input
Ready √ Run Diagnostics
4 Input
Ready
5 Input √ Run Diagnostics
Ready √ Run Diagnostics
6
Input
Ready √ Run Diagnostics
7 Input
Ready √ Run Diagnostics
8 Input
Ready √ Run Diagnostics
9 Input
Ready √ Run Diagnostics
10 Input
https://www.youtube.com/user/BarcoFolsomIP.
2. Make sure that the E2s have different IP addresses.
The default IP address for each unit is the same; one of them must be
changed.
3. Connect all devices to network Ethernet.
4. Start the Event Master Toolset
version 4.0 or higher.
5. Make sure that both E2s are
discovered on the network and that
they have different Unit IDs.
If the system does not discover your
device, you may manually add it. See
"How to manually add a device into
the selected system" in the user's
guide.
6. Drop one of the E2s in the EM GUI.
7. Drop the second E2 in the EM GUI.
The EM GUI presents the options of adding the second unit as a new system,
as a master, or a as a slave.
P/N 26-1205004-00 Rev 01

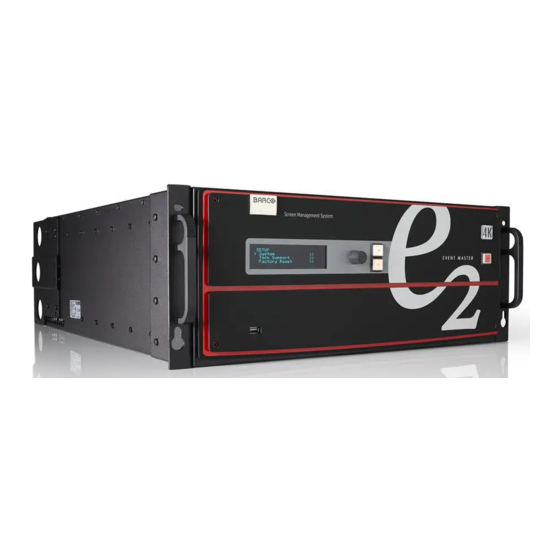

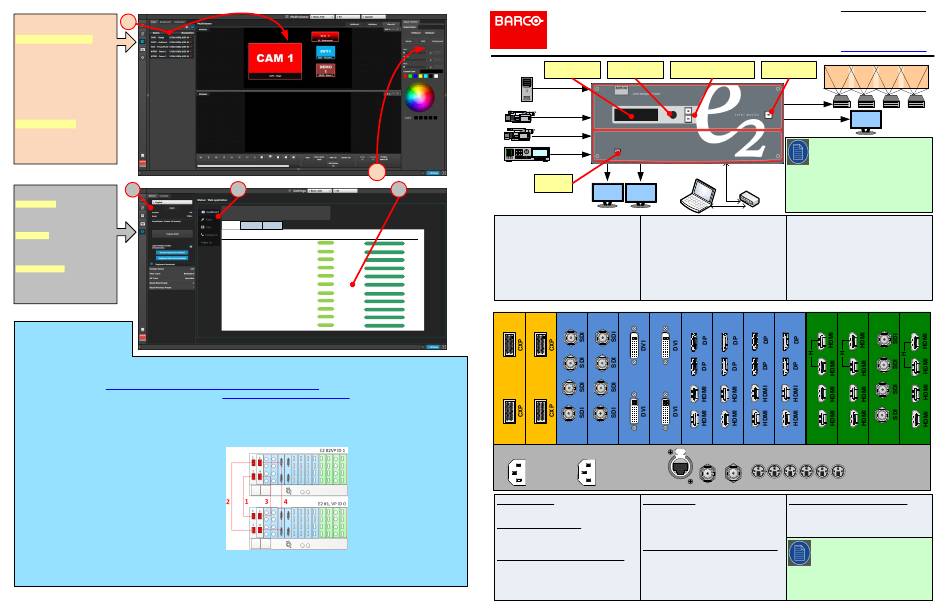

Event Master E2 – Screen Management System
Quick Start Guide
Display ADJUST Knob SEL and ESC Buttons
PC with Event Master
Control Software
USB Port
MVR MVR
System Setup 3. Connect AC power to the unit. If power
redundancy is desired, connect power to both
1. Ensure that the unit is physically secured in a
power plugs.
rack or is placed on a flat surface with stable
4. Connect to a computer that has the Event
support. If the unit is installed in a rack, it is
Master control software installed, via an
mandatory that the rear brackets are also
Ethernet cable. A switch is optional if additional
installed.
devices will be connected.
2. Connect all sources, displays, and peripherals
to the E2 according to your event's 5. Power up the E2, the PC, all monitors and
peripherals.
requirements.
6. Verify that no error messages appear on the E2
front panel.
Expansion Cards Input Cards
5
1 2 3 4 6
Dual Redundant Power Supplies
Ethernet
Expansion Cards DVI Input Cards
- 2 High speed CXP connectors - 2 DVI-I connectors (no analog signals)
- Single / Dual Link formats
- DVI 1.0 specification
SDI Input & Output Cards
- HDCP 1.4 & EDID 1.3
- 4 SDI BNC connectors
- SD/HD/3G formats (6G ready)
Quad Channel DisplayPort Output Cards
- 4 full-size DP locking connectors
DisplayPort/HDMI Combo Input Cards
- Up to 4 independent signals
- 2 DP and 2 HDMI locking connectors
- DisplayPort 1.2 specification
- Displayport 1.1a specification
- HDCP will be supported in a future software
- HDMI 1.4a specification
release.
- HDCP 1.4 & EDID 1.3
Barco Technical Support:
USA: +1 (866) 374-7878
EMEA : 0800 90 0410
CHINA : 40088 22726
APAC: +603-78803362
www.barco.com/en/Support
Power Switch
Refer to the Event Master devices User's
guide (R5905948) for detailed system
specifications, descriptions and operation
instructions.
Any item contained in this document may
change without notice.
Ethernet switch
For the latest version of the Event Master
devices User's guide (R5905948) and the E2 –
Screen Management System Quick Start
Guide (26-1205004-00), visit www.barco.com.
7. After the E2 boots up, run the Event Master
control software and follow the sequence of
instructions listed in this Quick Start Guide to
complete the system setup and configuration.
Should the system not fully boot correctly, press
and hold the SEL and ESC buttons while
applying power to the unit. Release these
buttons when a menu appears asking to Factory
Reset the unit. Perform the Factory Reset and
the unit will boot normally.
Output Cards
7 8 9 10 11 12
S3D S3D
Genlock
In Out
2 3 4 2
In 1 1
Loop
HDMI Output cards (including MVR)
- 4 HDMI connectors (top 2 connectors capable of
high-speed HDMI signals up to 300 MHz)
- HDMI 1.4a specification
- HDCP 1.4 and EDID 1.3
Notes:
- Input and Output cards each support
one 4K/UHD signal.
- This sample system shows the optional DP 1.2
Output card. The system does not ship with this
card; your configuration may be different.
Cards are not hot-swappable.
-
MVR
13 14
