OPERATION & SERVICE MANUAL
Models: 01-1280-0000, 01A1280-0000,
01-1280-9000, 01A1280-9000

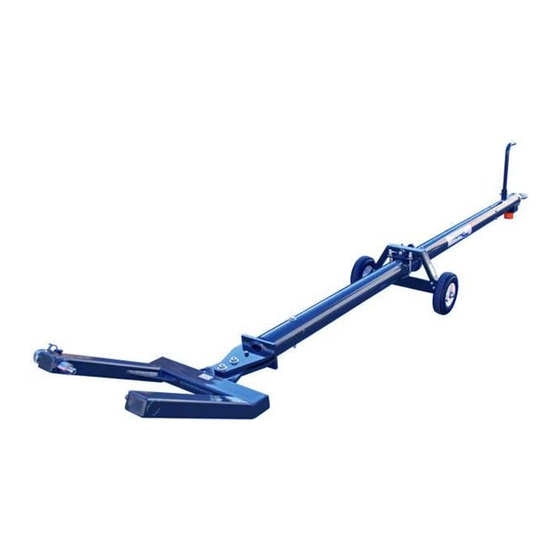

CASA CN295 Custom Towbar
01/2023 − Rev. 01
For Spare Parts, Operations & Service Manuals or Service Needs
Scan the QR code or visit Tronair.com/aftermarket
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.tronair.com
Swanton, OH 43558
Email: sales@tronair.com
Advertisement
Table of Contents
Related Manuals for Tronair 01-1280-0000
Summary of Contents for Tronair 01-1280-0000
- Page 1 01-1280-9000, 01A1280-9000 CASA CN295 Custom Towbar 01/2023 − Rev. 01 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 01/2023 Original release...
-
Page 3: Table Of Contents
Models: 01-1280-0000, 01A1280-0000, 01-1280-9000, 01A1280-9000 CASA CN295 Custom Towbar TABLE OF CONTENTS PAGE PRODUCT INFORMATION............................... 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SPECIFICATIONS .............................. 1 FEATURES ................................. 1 SAFETY INFORMATION ..............................2 GENERAL ................................2 USAGE AND SAFETY INFORMATION ...................... -
Page 4: Product Information
Tronair towbars/heads must only be used with matching Tronair heads/towbars, and Tronair shear pins. This product cannot be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Safety Information
CASA CN295 Custom Towbar SAFETY INFORMATION GENERAL These Tronair Towbars are used for moving the CASA C295 Aircraft only. USAGE AND SAFETY INFORMATION To insure safe operations please read the following statements and understand their meaning. Also refer to your equipment manufacturer’s manual for other important safety information. -
Page 6: Operation
Models: 01-1280-0000, 01A1280-0000, 01-1280-9000, 01A1280-9000 CASA CN295 Custom Towbar OPERATION PRELIMINARY CHECKLIST 4.1.1 Towbar ⎯ Check eyebolt for bending, excessive wear and deformity. ⎯ Check shock assembly mounting bolts. Ensure they are not loose or missing. 4.1.2 Towing Head ⎯ Check welds between side rails and head rail for cracks. -
Page 7: Couplers
To ensure proper towing and pushing, check to make sure the pintle pin diameter is not too long for the eyebolt's inside diameter. An approximate one-half inch (1/2") gap between the pin diameter and the eyebolt should be seen. If any of these conditions are not met, please contact Tronair for information to obtain a new coupler. FIGURE 5 FIGURE 6 4.2.4... -
Page 8: Provision Of Spares
If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents. - Page 9 Bolt, Hex Head, Grade 8, 5/16-18 x ¾" long G-1251-1060R Lockwasher, 5/16 Regular Due to the high compression used in assembly, this assembly should be returned to Tronair for repair. Discuss with your Salesperson. 02/2007 | Rev. 08 Page | 6...
- Page 10 Models: 01-1280-0000, 01A1280-0000, 01-1280-9000, 01A1280-9000 CASA CN295 Custom Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-3697-01 Weldment, Landing Gear (01-1280-0000/01A1280-0000) Z-3697-02 Weldment, Landing Gear (01-1280-9000/01A1280-9000) G-1009-33...
- Page 11 Socket Head Shoulder Screw, 5/8" diameter G-1202-1090 Stopnut, ½-3 Elastic G-1250-1100N Flatwasher, 5/8 Narrow Z-5669-01 Machining, Shear Plate (01-1280-0000/01A1280-0000) - Not Sold Separately Z-5669-02 Machining, Shear Plate (01-1280-9000/01A1280-9000) - Not Sold Separately Z-4072-02 Weldment, Head H-1724-03 Bushing, Head Press Fit...
- Page 13 APPENDIX I Declaration of Conformity...
- Page 15 Enter serial number(s) Declaration: Tronair has assessed the equipment described above against the Essential Health and Safety Requirements of one or more Directives. Based on this assessment, the equipment described above is deemed to comply with the directive(s) listed below.
