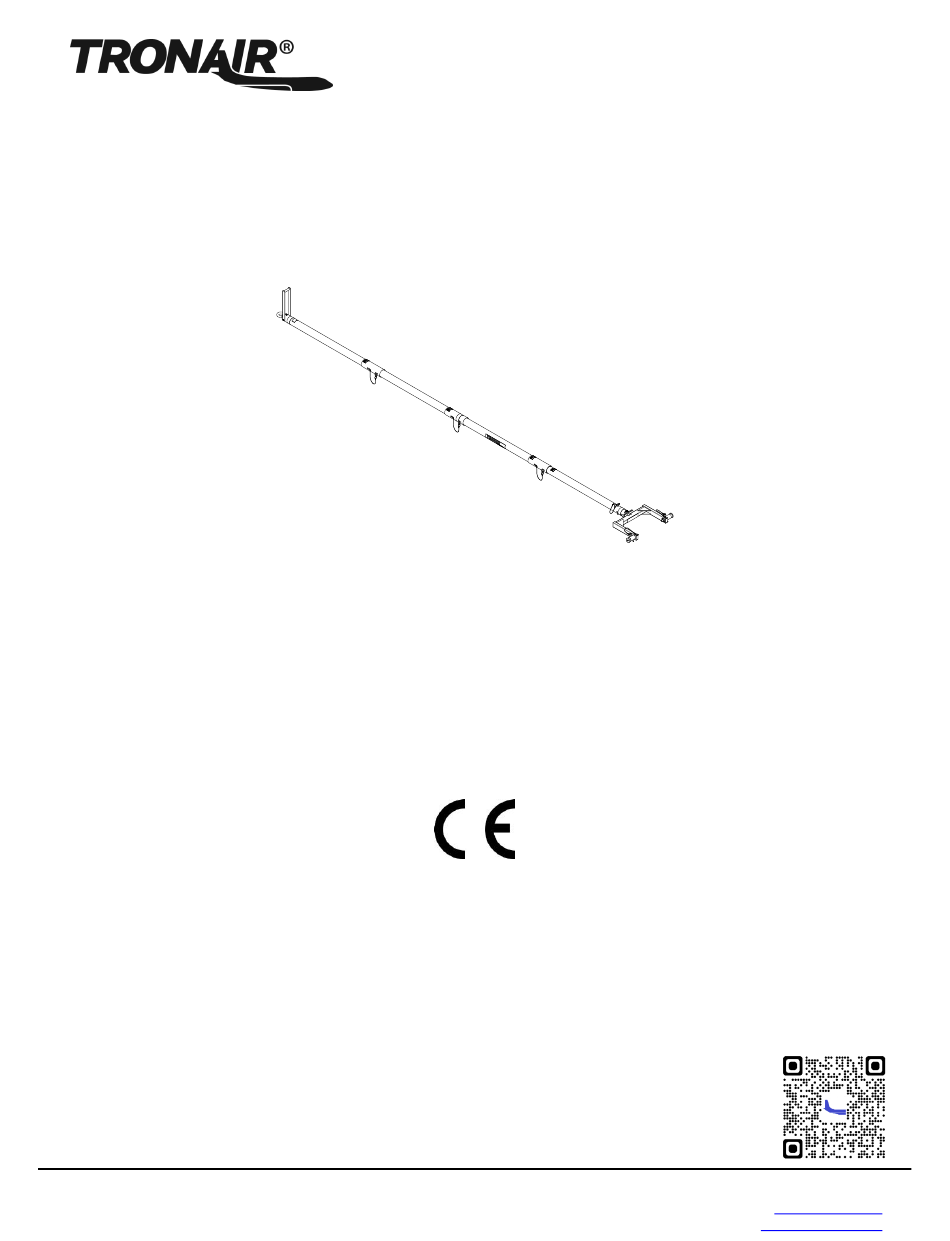

OPERATION & SERVICE MANUAL
Model: 01-1221-0006
Sikorsky
Seahawk/Jayhawk
Portable Towbar
04/2023 – Rev. 01
For Spare Parts, Operations & Service Manuals or Service Needs
Scan the QR code or visit Tronair.com/aftermarket
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web:
www.tronair.com
Swanton, OH 43558
Email:
sales@tronair.com
Advertisement
Related Manuals for Tronair 01-1221-0006
Summary of Contents for Tronair 01-1221-0006
- Page 1 Model: 01-1221-0006 Sikorsky Seahawk/Jayhawk Portable Towbar 04/2023 – Rev. 01 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 04/2023 Major revision...
- Page 3 Model: 01-1221-0006 Sikorsky Seahawk/Jayhawk Portable Towbar TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................1 USAGE AND SAFETY INFORMATION ......................1 TRAINING ..................................1 TRAINING REQUIREMENTS ..........................
- Page 4 Tronair towbars/heads must only be used with matching Tronair heads/towbars, and Tronair shear pins. This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
- Page 5 Contact Tronair for replacement. • Inspect towing head attachment ball loc pin. Verify that the factory supplied ball loc pin is used; contact Tronair for replacement if required. Do not substitute without Tronair approval.
- Page 6 To ensure proper towing and pushing, check to make sure the pintle pin diameter is not too long for the eyebolt’s inside diameter. An approximate one-half inch (½") gap between the pin diameter and the eyebolt should be seen. If any of these conditions are not met, please contact Tronair for information to obtain a new coupler. FIGURE 4 4.2.4...
- Page 7 If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents.
- Page 8 Model: 01-1221-0006 Sikorsky Seahawk/Jayhawk Portable Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-2785-01 Weldment, Head H-1026*07.0 Assembly, Lanyard Pin, Ball-Lok , 3/8” x 3” LG G-1310-0630 Rivet, Pop, 1/8”...
- Page 9 Model: 01-1221-0006 Sikorsky Seahawk/Jayhawk Portable Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description K-2306 Kit, Replacement Bearing Assembly; consists of: G-1391-14 Ring, Internal Retaining H-1245 Bearing, Roller...
- Page 10 Model: 01-1221-0006 Sikorsky Seahawk/Jayhawk Portable Towbar Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description G-1251-1060R Lockwasher, 5/16 Regular Z-2784 Weldment, Eyebolt Z-2909-01 Weldment, Handle Bolt, Hex Head, Grade 8, 5/16-18 x 1 ¼ “ LG...
- Page 11 When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description K-2300 Kit, Replacement Towbar Section; consists of: Z-2788-01 Weldment, Tube (without Tronair label) K-2301 Kit, Replacement Towbar (Section 3); consists of: Z-2788-01 Weldment, Tube (with Tronair label) K-2302 Kit, Replacement Towbar Section; consists of:...
- Page 13 APPENDIX I Declaration of Conformity...
-
Page 15: Declaration Of Conformity
DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Portable Towbar 01-1221-0006 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc.
