OPERATION & SERVICE MANUAL
Models:
01-1272-0000
01A1272-0000

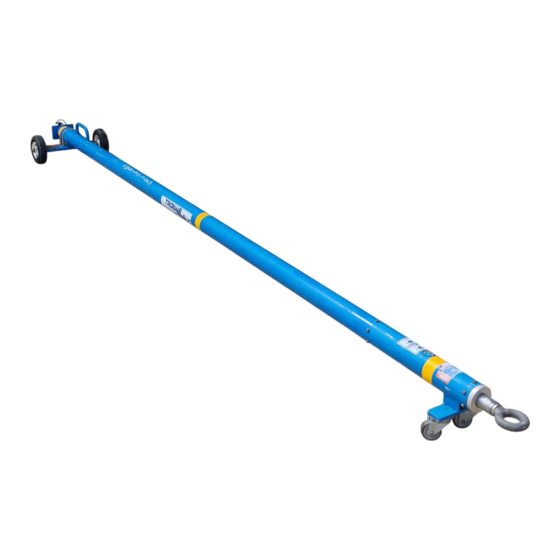

Custom Towbar
Gulfstream G200 (Galaxy)
03/2010 Rev. 02
Phone: (419) 866-6301 | 800-426-6301
Web: www.tronair.com
Email: sales@tronair.com
Advertisement
Table of Contents
Related Manuals for Tronair 01-1272-0000
Summary of Contents for Tronair 01-1272-0000

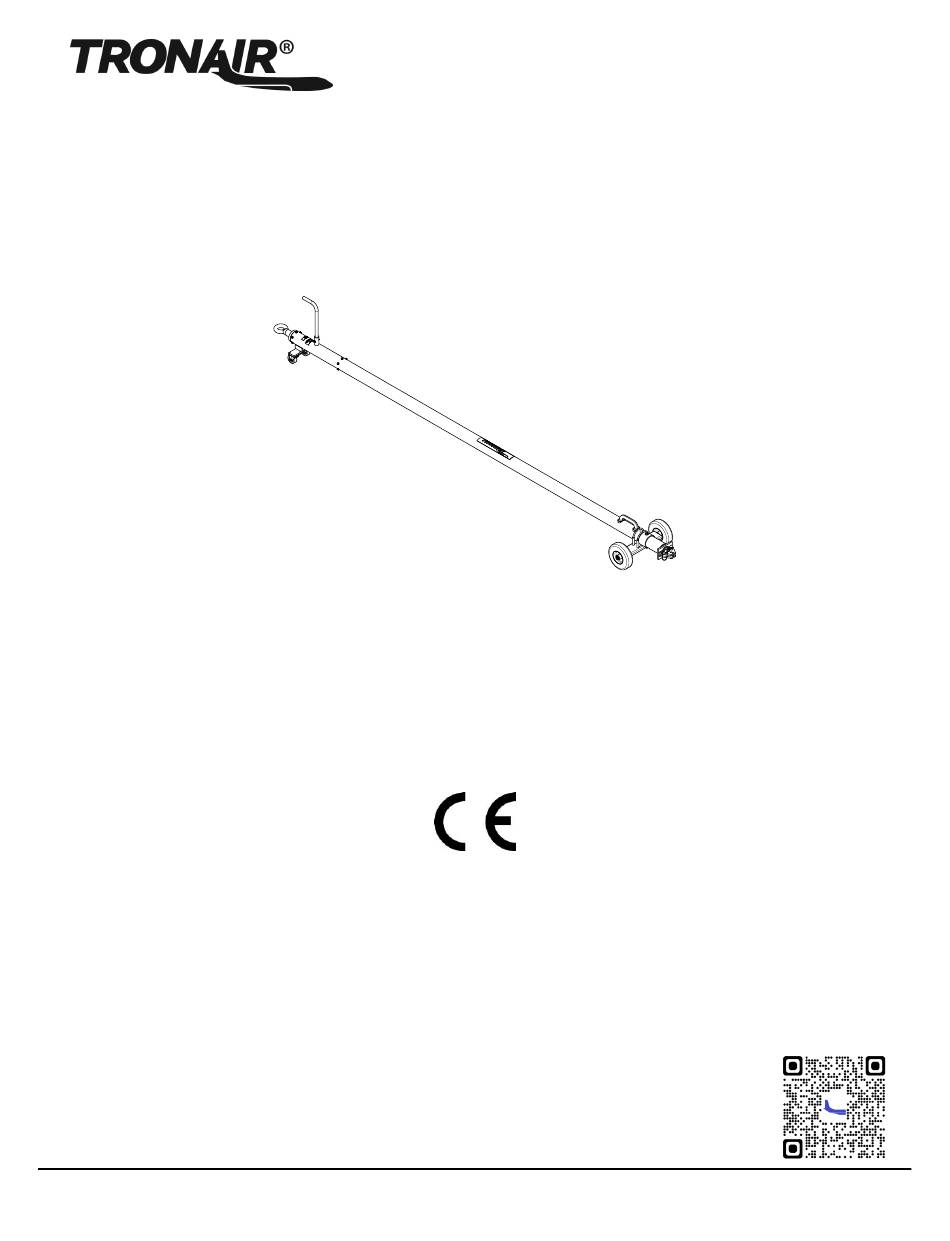

- Page 1 Custom Towbar Gulfstream G200 (Galaxy) 03/2010 Rev. 02 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 03/2010 Original release 03/2010 Modified Parts List...
-
Page 3: Table Of Contents
Models: 01-1272-0000 and 01A1272-0000 Custom Towbar - Gulfstream G200 (Galaxy) TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................1 GENERAL ................................1 TRAINING ..................................2 TRAINING REQUIREMENTS .......................... -
Page 4: Product Information
Tronair towbars/heads must only be used with matching Tronair heads/towbars, and Tronair shear pins. This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Training
Check the shock assembly for preload on the spring by pulling on the towing eye. If the shock can be moved by hand it indicates that the spring is worn out and Tronair should be contacted for repairs. ... -
Page 6: Usage Procedure
Models: 01-1272-0000 and 01A1272-0000 Custom Towbar - Gulfstream G200 (Galaxy) USAGE PROCEDURE 4.3.1 Aircraft Attachment CAUTION! It is recommended that your towbar be attached to the aircraft first, and then connected to the tug to avoid possible aircraft damage. 4.3.2... -
Page 7: Couplers
To ensure proper towing and pushing, check to make sure the pintle pin diameter is not too long for the eyebolt's inside diameter. An approximate one-half inch (½") gap between the pin diameter and the eyebolt should be seen. If any of these conditions are not met, please contact Tronair for information to obtain a new coupler. 3.3.4... -
Page 8: Provision Of Spares
If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents. - Page 9 Models: 01-1272-0000 and 01A1272-0000 Custom Towbar - Gulfstream G200 (Galaxy) Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-3999 Assembly, Shock (01-1272-0000) Z-4137 Assembly, Shock (01A1272-0000) Bolt, Hex Head, Grade 8, 5/16 – 18 ¾ long...
- Page 10 Models: 01-1272-0000 and 01A1272-0000 Custom Towbar - Gulfstream G200 (Galaxy) Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-5574 Machining, Head G-1310-0920 Pin, Ball Lok-T H-1026*07.0 Assembly, Lanyard...
- Page 11 APPENDIX I Declaration of Conformity...
- Page 13 Enter serial number(s) Declaration: Tronair has assessed the equipment described above against the Essential Health and Safety Requirements of one or more Directives. Based on this assessment, the equipment described above is deemed to comply with the directive(s) listed below.
