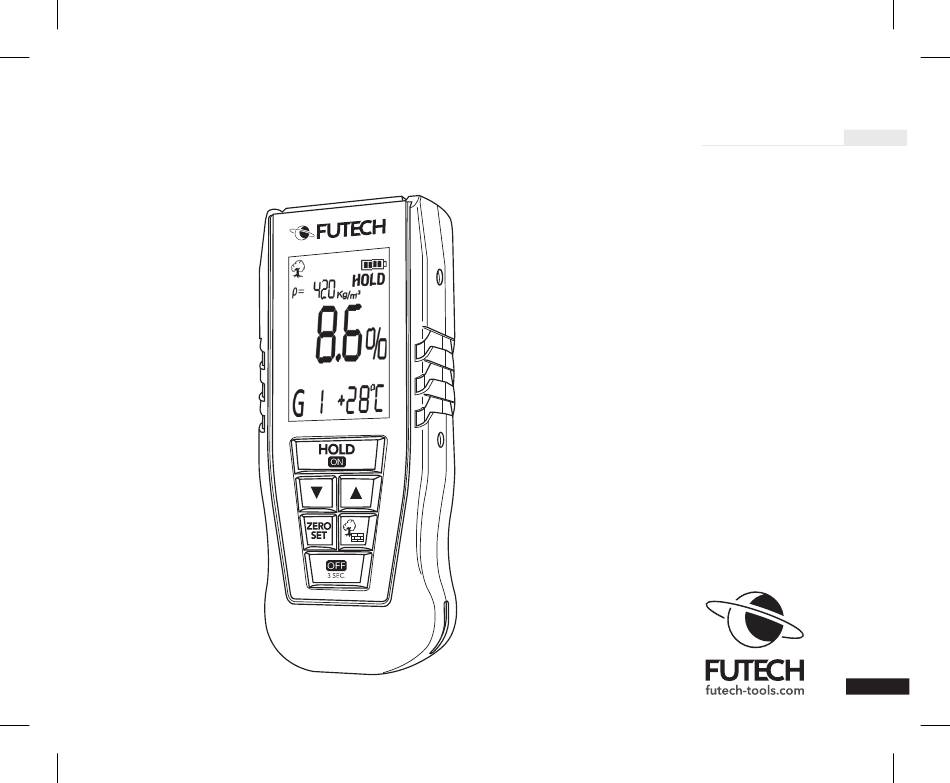

- Page 1 USER EN ENGLISH MANUAL 190.10 – HYDRO Manual in your language? Check the back cover...

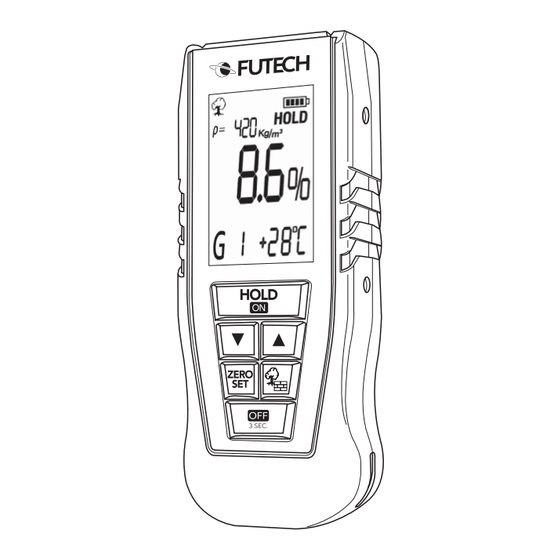

- Page 2 OVERVIEW 01. Selected material 02. Battery status 03. Measurement recording (Hold) 04. Measuring result 05. Temperature 06. The number of chosen material group 07. Chosen density 01. Power ON / measurement hold button 02. Choosing material group button 03. Choosing material button 04.
-
Page 3: Application Field
INTRODUCTION · Operating temperature: +5 … +40°C, with several humidity till 90% at the temperature On the front panel, there is a digital display (see 25°C and air-pressure 86 … 106 Pa. picture) and a keyboard consisting of six buttons (see picture). -
Page 4: Measuring Mode
At this point, ensure the surface with a force of about 1 kg. sensor of the device is at least To hold the result on the screen, for example, 30 cm away from all objects, when measuring a surface where you cannot then press the button see the device, press the... -
Page 5: Maintenance
SENSOR TEMPERATURE UNITS after-sales service centers. The device is a highly technical product and should not be If you hold the q button, the temperature unit repaired by users; therefore, we do not provide changes from Celsius to Fahrenheit. A second complete technical documentation to users long press will change it back to Celsius. -
Page 6: Specifications
SPECIFICATIONS WORKING RANGE TECHNICAL SPECIFICATIONS Heavy concrete Wood 20mm SCANNING DEPTH (2400kg/m from 0,1 to 10% Concrete 10mm Light concrete Wood 420-700kg/m³ DENSITY RANGE (2200kg/m³) from 0,1 to 20% CONSTRUCTION Concrete 1800-2400 kg/m³ MATERIAL Screed TIMBER GROUP (1700-2000kg/m³) from 0,1 to 35% CONCRETE GROUP Gypsum (1400kg/m... - Page 7 TIMBER TABLE GROUP DENSITY KG/M³ SPECIES < 420 Spurce, poplar, aspen 421-460 Pine, basswood, oregon 461-500 Alder, cedar, meranti 501-540 Larch, cherry, mahogany 541-580 Ramin, walnut, elm 581-620 Ash, maple, birch, teak 621-660 Beech, pear, yew 661-700 Oak, hickory CONCRETE TABLE GROUP DENSITY KG/M³...
- Page 8 USER MANUAL other languages: DANSK ITALIANO DEUTSCH NEDERLANDS ESPAÑOL NORSK EESTI KEEL PORTUGUÊS SUOMEN KIELI SLOVENŠČINA FRANÇAIS SVENSKA ÍSLENSKA Facebook @futechtools LinkedIn futechtools World Wide Web futech-tools.com YouTube @futechtools...
