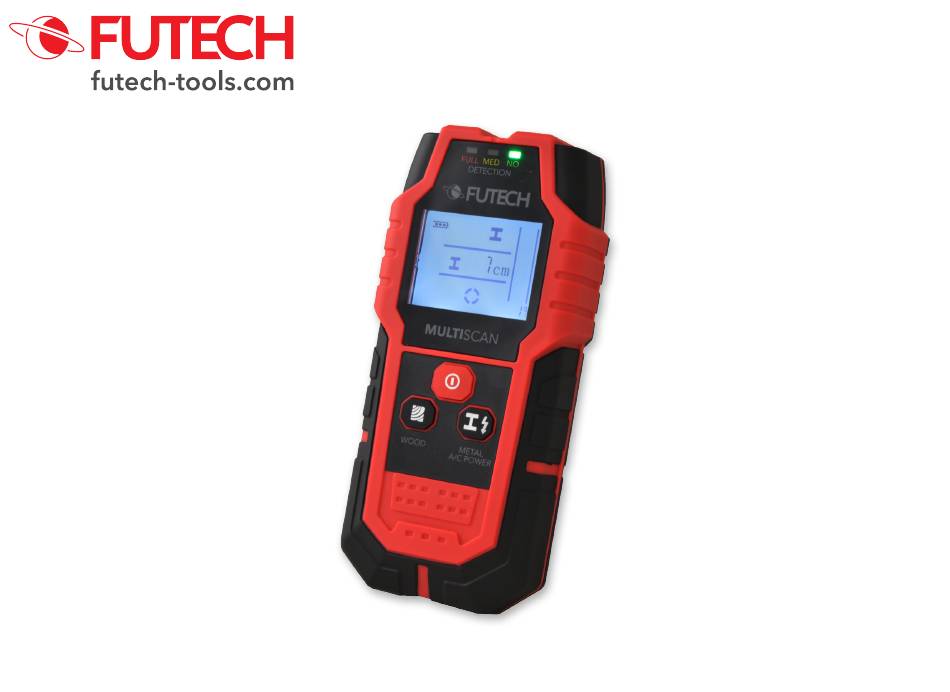

MULTISCAN
MANUAL
196.20

Advertisement

loading
Need help?

Need help?

Do you have a question about the MULTISCAN 196.20 and is the answer not in the manual?

Questions and answers

Related Manuals for Futech MULTISCAN 196.20

Summary of Contents for Futech MULTISCAN 196.20

  • Page 1 MULTISCAN MANUAL 196.20...
  • Page 2 Congratulations! On choosing this FUTECH instrument. FUTECH provides measuring instruments of precision and quality. Contributions from professional end users enable us to offer innovative, easy-to-use equipment. MULTISCAN IMPORTANT! Read the instructions for use carefully before using the instrument. Keep them in a safe place for consultation when necessary.
  • Page 3 MULTISCAN MANUAL Parts of the housing Red indicator light Yellow indicator light Green indicator light Display On/Off button Wood detection button Metal/live wire detection button Felt pad 1 Sensor area 10. Product label area 11. Felt pad 2 12. Latch of battery lid Display indicator for ferro-/non-ferro metals indicator current detection mode...
  • Page 4 First use / Switching on and off Remove any protective films where applied. Open the battery compartment and in- sert the 9V batterie, please taking care to observe the indicated polarity. Press the switch on button to switch on the measuring tool. After a short test, the detector is ready to use.
  • Page 5 MULTISCAN MANUAL Detecting objects - Metal objects Press the metalbutton to enter de metal-detection mode. The ...-symbol appears in the display and the green LED is lit. Place the measuring tool onto the surface to be scanned and move it sidewards. If the measuring tool comes close to a metal object, the amplitude of the measuring Rebar Ø...
  • Page 6 ∙ Caution: When the detector was above the wood inclusions when he begins to detect objects and you move the measuring tool to scan objects, it’s possible the buzzer sounds “didididi” and the indicator flashes yellow or red. If this conditions happens, you have to repeat the detectoin.
  • Page 7 MULTISCAN MANUAL Guidance for operation mode Measuring values can be impaired through certain ambient conditions. These in- cludes: ∙ the proximity of other equipment that produce strong (electro-)magnetic fields ∙ moisture ∙ metallic building materials ∙ foil-laminated insulation materials ∙ conductive wallpapers. Therefor, please also observe other invormation sources (e.g.

  • Page 8: Limits Of Use

    ∙ Use of products with obviously recog- in hazardous areas, or in close proximity ∙ To inform FUTECH immediately if the nizable damages or defects. to electrical installations or similar sit- product and the application becomes ∙...
  • Page 9 MULTISCAN MANUAL HAZARDS OF USE by lightning. international rules and regulations are WARNINGS ∙ Do not use the product in a thunder- observed. Before transportation or ∙ The person responsible for the product storm. shipping contact your local passenger must ensure that it is used in accord- ∙...

  • Page 10: Laser Classification

    ∙ The product must not be disposed with household waste. Dispose of the Futech reserves the right to change, product appropriately in accordance WASTE DISPOSAL amend or modify this manual at any time with the national regulations in force in Must be in line with the requirements of without notice.

  • Page 11: Technical Specifications

    MULTISCAN MANUAL TECHNICAL SPECIFICATIONS detection depth for ferrous metals 80mm detection depth fot non-ferrous metals 60mm detection depth for live conductors 50mm detection depth fot wood 20mm graphic indication of detection depth  cm-indication of detection depth only for metals, not for wood batteries 1x 9v ac power connector...
  • Page 12 JOIN US Facebook @futechtools LinkedIn futech-tools...
