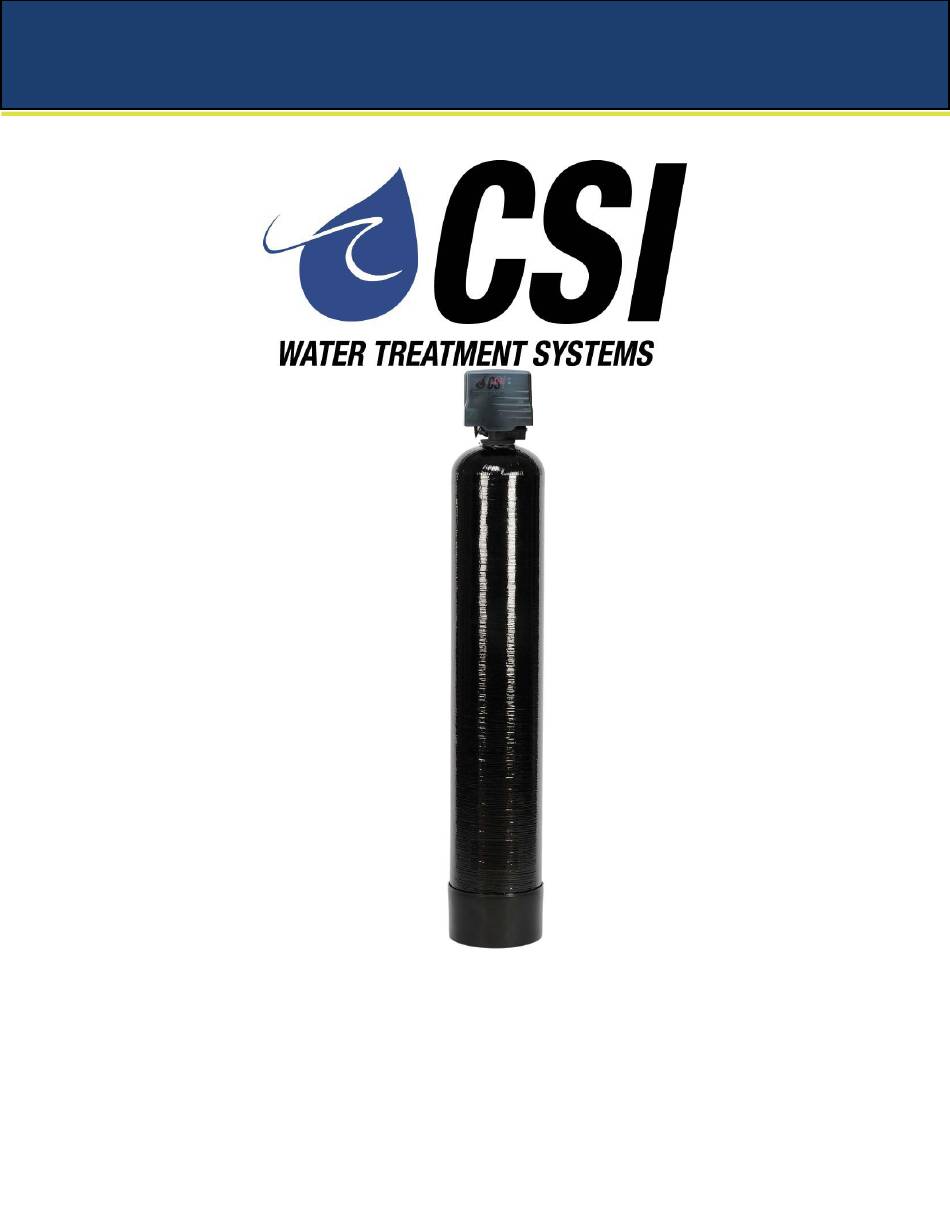

- Page 1 Signature 3 Filter Manual Installation / Operation Manual...
-
Page 2: Register Your Product
General Specifications................Page 3 Filter Media....................Page 4 Installation Requirements..............Page 5 Programming the Control Valve........... Page 9 Utilizing Bluetooth................Page 11 Master Programming................ Page 14 Control Valve Powerhead Assy. Sig 3......... Page 15 Valve Body Assembly Sig. 3............Page 16 Bypass Assembly Sig. - Page 3 Filter Specifications General Specifications WF10-S3 WF15-S3 WF20-S3 WF25-S3 WF30-S3 Less Filter Media Filter Media Type Filter Media Capacity (cu ft) Mineral Tank Size 9 x 48 10 x 54 12 x 52 13 x 54 13 x 65 Service Flow Rate - (gpm) Continuous Service Flow Rate -...
- Page 4 Filter Media Ship Wt. Media Description Handles... Used in... (lbs) Granular / White-Black / Blend of Filter Ag Plus Sediment SmartBlend ™ and Katalox Light / Max life expectancy about 8-10 Iron (clear & red) Nitro SB75 years but is dependent upon water chemistry and Manganese (clear &...
- Page 5 Installation Installation Requirements • A level floor position ahead of piping into water heater. • Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to back-up of hot water. • DO NOT install the unit in an area of direct sunlight or where freezing temperatures may occur! (See Installation Diagrams for proper placement and plumbing connections.)
- Page 6 Installation Note: • If household plumbing is galvanized and you intend to make the installation with copper (or vice versa), obtain di-electric unions to prevent dissimilar metal corrosion. • All plumbing lines not requiring “soft” water should be connected “upstream” of the softener, if installed. (See Typi cal Installation Diagrams.) Caution: •...
-
Page 7: Installation Procedure
Installation Installation Procedure - Water Supply Connection and Bypass Valve - To allow for filter servicing, swimming pool filling or lawn sprinkling, a manual Bypass Valve has been installed at the factory. The Bypass allows raw water to be manually routed around the filter. 1. -
Page 8: Electronic Connections
(Cycle #1) S - Powered for Entire Regeneration Cycle - Pressurizing The System - Signature 3 Bypass Positions 2. Slowly rotate handle of the bypass valve to the SERVICE position. 3. Open the nearest faucet to evacuate air from plumbing lines. -
Page 9: Final Checkout
Programming the Control Valve - Final Checkout - 1. Be certain that the bypass valve is in Service position and main valve is completely on. 2. Check electrical supply to be certain the cord is connected to an uninterrupted 115 volt outlet. 3. -
Page 10: Normal Operation
Programming the Control Valve Normal Operation 1. Home Display a. Alternates between the display of Time of Day and Number of Days until the Next Backwash. (Metered Softeners will alternate between time of days and gallons remaining until next regeneration) - Days Remaining until the Next Backwash will count down from the entered value until it reaches 1 day remaining. - Page 11 Utilizing Bluetooth Control For simplified set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart phone or tablet. 1. Download and install the Legacy View app from the Google Play Store, Apple App Store 2.
-
Page 12: Advanced Settings
Set Up Utilizing Bluetooth App Change Time of Day (Press “SET” to set time automatically based on device). For Filters: Set Backwash Frequency This sets the amount of day between backwash cycles Set Regeneration Time Example: For 2a.m., just type 2, choose a.m., and press ‘OK’ Note: If you have a filter and a softener the valves should be set to regenerate at different times. - Page 13 Set Up Utilizing Bluetooth App Status and History From the Status and History, all items in ORANGE can be reset. Pressing this icon will show a list of the data that is in the graph. Touch any graph to enlarge and see details.
-
Page 14: Master Programming Mode
Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT neces sary to enter Master Programming Mode. 1. - Page 15 - SIGNATURE 3 Control Valve Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS DESCRIPTION PART NO. Power Head Assy. 21002X100 Filter Circuit Boad Assy. 21002X101 Encoder 20001X124 Front Plate 20001X004 Encoder Wheel 20001X007 Main Gear 21001X120 Power Supply 20001X125 Back Plate...
- Page 16 - Signature 3 Valve Body Assembly DESCRIPTION PART NO. Piston Assembly 20001X231 10-24 X 3/4” Screw SST 20001X001 Seal and Spacer Kit Incl 20561X253 (5) #3 & (4) #4 End Spacer 20001X234 Flow Control Button 5.0 20251X272 Flow Control Button 7.0 20251X273 DLFC Assy.
- Page 17 - Signature 3 Bypass Assembly DESCRIPTION PART NO. D15 Bypass (included with all units) 20017X283 1” NPT Elbow Set (included with all units) 20017X284 1” Female Straight Slip Set (optional) 20017X288 1” NPT Straight Set (optional) 20017X289 3/4” NPT Straight Set...
- Page 18 Service Instructions / Instructional Videos Available at www.csiwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to conditioner. -If the conditioner installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the conditioner inlet and outlet.
-
Page 19: Troubleshooting Guide
Troubleshooting Guide To Replace Meter 1. Follow steps A1 - A3 2. Unplug meter cable from front of circuit board. 3. Unscrew meter assembly nut from valve body. 4. Remove meter from valve body and clean or replace as necessary. 5. - Page 20 Error Codes Control Valve Error Code Diagnosis Under normal operating conditions, when your control valve is in the “in service” position, the display should alter- nate between the current time of day and the number of days remaining (for filters and time clock softeners) or gal- lons remaining (for metered softeners) until the next regeneration.
- Page 21 Other Softener / Filter Control Valves 5 Years liable for more than, and purchaser-user’s remedies shall not exceed, the price paid for the product. In no case shall CSI or seller be liable for Brine Tank 5 Years any special, incidental, contingent or consequential damages. Special,...
- Page 24 CSI WATER TREATMENT SYSTEMS 710 Orange St, Ashland, OH 44805 l PH 419-281-6829 l FAX 419-281-2375 0922TV www.csiwater.com...
