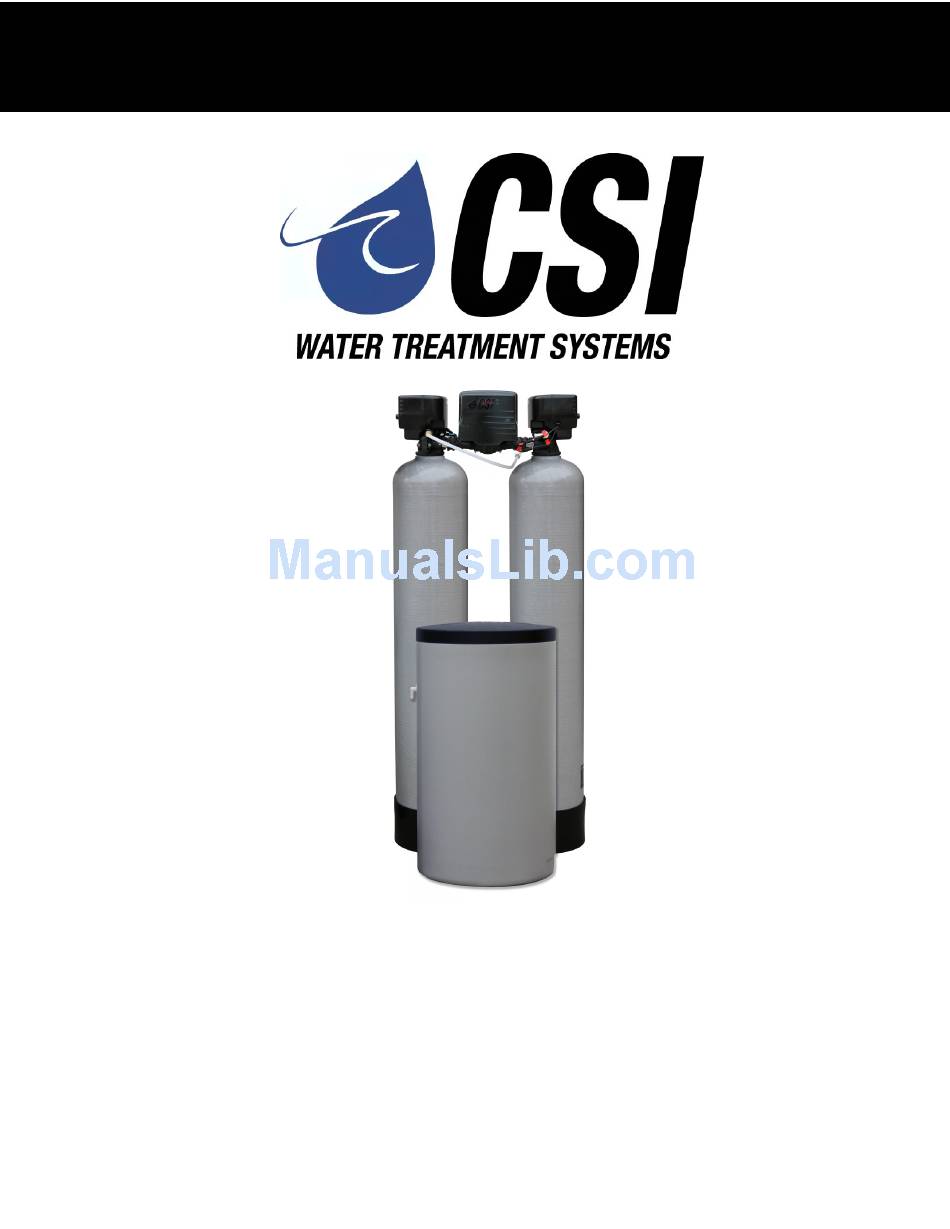

- Page 1 SIGNATURE SERIES Signature Series Duplex Softener Manual Installation / Operation Manual...
- Page 2 SIGNATURE SERIES Softener Specifications..........Page 3 Softener Installation..........Page 5 Service Information........... Page 8 Troubleshooting............Page 13 Warranty..............Page 15 Register Your Product Online at www.csiwater.com...
- Page 3 SIGNATURE SERIES Softener Specifications SD48 SD64 SD96 SD128 General Specifications SD48V SD64V SD96V SD128V 24,000 / 12.0 32,000 / 15.0 48,000 / 24.0 64,000 / 30.0 Grains Capacity - Regeneration / 20,000 / 7.5 27,000 / 9.0 40,000 / 15.0 54,000 / 18.0 Lbs Salt Used (Per Tank)** 15,000 / 4.5...
- Page 4 SIGNATURE SERIES Softener Specifications PLEASE NOTE THESE SPECIFICATIONS BEFORE PROCEEDING OPERATING PRESSURE RANGE : 20 - 125 PSI OPERATING TEMPERATURE RANGE : 33º F - 120º F INLET / OUTLET PIPE SIZE : 3/4: FNPT PLEASE COMPLY WITH ALL APPLICABLE PLUMBING CODES PROTECT THE SOFTENER AND PIPING FROM FREEZING TEMPERATURES Please read the entire Owner’s Manual and Instructions before installation.
- Page 5 SIGNATURE SERIES Installation Installation Requirements • A level floor position ahead of piping into water heater. • Unit must be installed at least 10 feet ahead of the inlet to a water heater to prevent damage due to back-up of hot water.
- Page 6 SIGNATURE SERIES Installation 6. Rotate inlet and outlet knobs on bypass valve to the bypass position (position of bypass lever is perpendicular to the inlet / outlet piping. 7. Turn the main supply line on to restore water service to the home. 8.
- Page 7 SIGNATURE SERIES Installation -Control Valve Operation/Pressurizing the System- 1. With the unit in bypass (bypass lever is perpendicular to lines), press and hold the set/change button to zero out the meter, and then press and hold set/change again manually index the control valve to BACKWASH (cycle 1). 2.
- Page 8 SIGNATURE SERIES Service Information Unit 1 Master Shuttle Unit 2 Power Cord Insert Transformer FRONT VIEW BACK VIEW Inlet & Outlet Brine Line Connection...
- Page 9 SIGNATURE SERIES Service Information -Home Display- MENU / ENTER UnT1 Button SET / CHANGE Button • Alternates between indicating which unit is in service (currently being used to soften the water) and how many gallons are remaining before that unit needs regenerated. If Softener Slave Unit #1 is in service the display will show [Unt1]. If Softener Slave Unit #2 is in service the display will show [Unt2].
- Page 10 SIGNATURE SERIES Service Information -Starting an Immediate Regeneration Cycle - • To Start Immediate Extra Cycle, press and hold the SET / CHANGE Button to zero out the meter, then repeat. • After 3 Seconds the Regeneration Cycle will Begin •...
-
Page 11: Error Codes
SIGNATURE SERIES Service Information -Regeneration Cycle Indications - • The Softener Regeneration Cycle steps can be viewed both on the display and also on the valve position indicator wheel on the softener slave valve. ○ Step 1: Backwash ○ Step 2: Brine Draw / Rinse ○... - Page 12 SIGNATURE SERIES Service Information ● To edit this setting Press the SET / CHANGE button. ● The lowest digit will begin flashing while the other digits are solid. ● Press SET / CHANGE to change the digit to the desired value. ●...
-
Page 13: Poor Water Quality
SIGNATURE SERIES Troubleshooting SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittentent or dead power source 1. Softener Fails to Disconnected meter cable Reconnect cable Regenerate Improper control valve Reset program settings programming Automatically Defective power supply Replace power supply Meter is dirty or defective Clean or replace meter assembly... - Page 14 SIGNATURE SERIES Troubleshooting SYMPTOM PROBABLE CAUSE CORRECTION Plugged drain line or drain line control Check flow to drain. Clean drainline 6. Excessive Water in flow control button Brine Tank and / or Dirty or damaged brine valve Clean or replace brine valve. Salty Water to Service Plugged injector or screen Clean injector screen.
- Page 15 Brine Tank Components 1 Year the price paid for the product. In no case shall CSI or seller be liable for REVERE Wireless Low Salt Alarm 90 Days any special, incidental, contingent or consequential damages. Special, incidental, contingent and consequential damages for which CSI is not * This warranty does not include media and/or cartridge filter elements.
- Page 16 SIGNATURE SERIES CSI WATER TREATMENT SYSTEMS 710 Orange St, Ashland, OH 44805 l PH 419-281-6829 l FAX 419-281-2375 www.csiwater.com...
