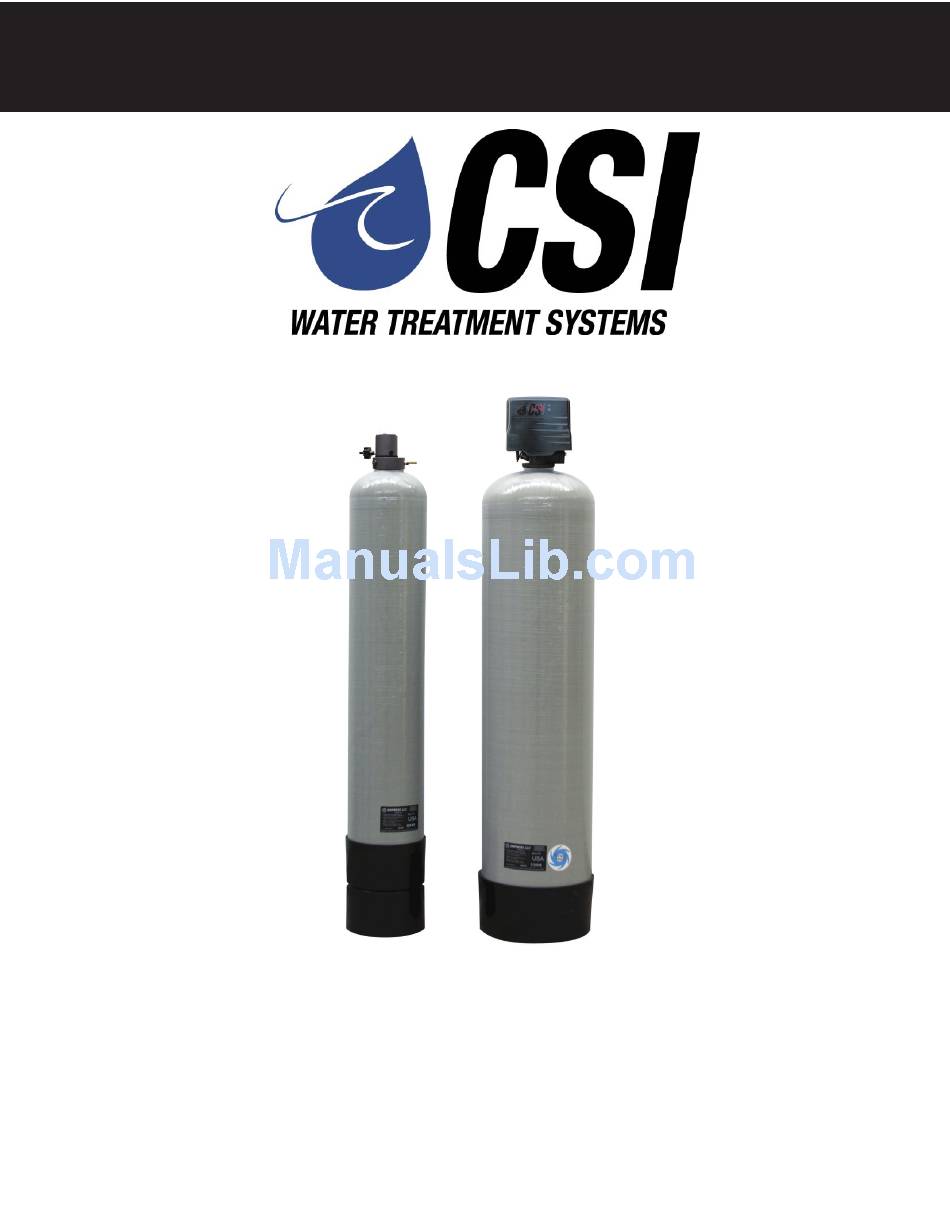

- Page 1 SIGNATURE 2 SERIES Signature 2 Series Reactr Installation / Operation Manual...
-
Page 2: Table Of Contents
SIGNATURE 2 SERIES Reactr™ Specifications.......................Page 3 Installation...........................Page 4 Control Start-Up Procedures.......................Page 7 Utilizing Bluetooth........................Page 9 Master Programming........................Page 10 Powerhead Assembly........................Page 11 Valve Body Assembly........................Page 12 Manifold Breakdown........................Page 13 Bypass Assembly.........................Page 14 Additional Information........................Page 15 Troubleshooting...........................Page 16 Error Codes..........................Page 16... -
Page 3: Reactr™ Specifications

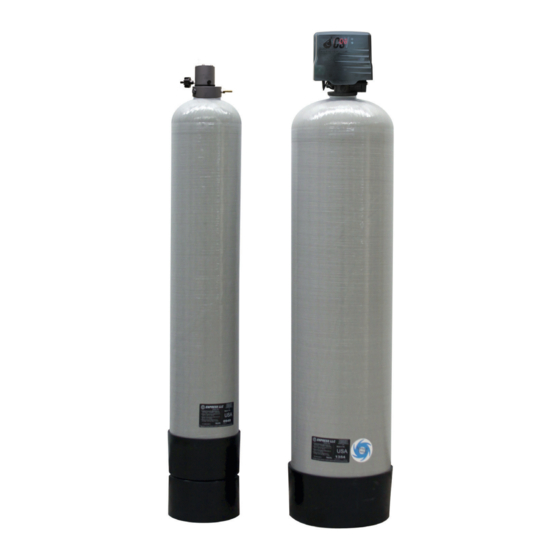

SIGNATURE 2 SERIES Reactr Specifications The Reactr ™ requires no chemicals for its operation. It consists of two components: (1) Reactr ™ Tank and (2) Filter Tank. The Reactr Tank serves to oxidize and percitate iron and sulfur so that they can later be removed by the filter. The water flows down through the mineral bed of the filter and out of the service lines. -
Page 4: Installation
SIGNATURE 2 SERIES Installation Installation Requirements • A level floor position ahead of piping into water heater. • Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to back-up of hot water. •... - Page 5 SIGNATURE 2 SERIES Installation Note: • If household plumbing is galvanized and you intend to make the installation with copper (or vice versa), obtain di-electric unions to prevent dissimilar metal corrosion. Caution: • If sweat soldering copper pipe (remember to always use lead free solder and flux), cover yoke and bypass valve with wet rags to prevent heat damage to connections and control valve.
- Page 6 SIGNATURE 2 SERIES Installation 3. Turn OFF main water supply and OPEN nearest faucet to relieve pressure. 4. Cut main line and install appropriate elbows and extensions. Inlet and outlet connections on the control valve are 3/4" FNPT. (1" FNPT for RF30 and RF40.) Caution: Raised arrows located on the sides of control valve body and bypass valve indicate proper direction of water flow.
-
Page 7: Control Start-Up Procedures
SIGNATURE 2 SERIES Control Start-Up Procedures - Final Checkout - 1. Be certain that the bypass valve is in Service position and main valve is completely on. 2. Check electrical supply to be certain the cord is connected to an uninterrupted 115 volt outlet. 3. -
Page 8: Normal Operation
SIGNATURE 2 SERIES Control Start-Up Procedures Normal Operation Home Display a. Alternates between the display of Time of Day and Number of Days until the Next Backwash. (Metered Softeners will alternate between time of days and gallons remaining until next regeneration) - Days Remaining until the Next Backwash will count down from the entered value until it reaches 1 day remaining. -
Page 9: Utilizing Bluetooth
SIGNATURE 2 SERIES Utilizing Bluetooth Control To take advantage of the Bluetooth interface this feature must be set up on a compatible Bluetooth enabled smart phones or tablets. Note: Valves with a revision number greater or equal to “C2.00” are only compatible with Bluetooth 4.0+ (a.k.a. Bluetooth LE) Smartphones and tablets. -
Page 10: Master Programming Mode
SIGNATURE 2 SERIES Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT Note: necessary to enter Master Programming Mode. -
Page 11: Powerhead Assembly
SIGNATURE 2 SERIES Control Valve Powerhead Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS * "F" Port is for softener flow meter connection (flow meter not shown) Description Part Number Reactr™ Power Head Assy. 21005X100 Reactr™ Circuit Boad Assy. 21005X102 Encoder 20001X124 Front Plate 20001X004... -
Page 12: Valve Body Assembly
SIGNATURE 2 SERIES Valve Body Assembly Description Part # Qty. R e f Piston Assembly 20001X231 10-24 X 13/16” Screw 20001X226 Seal and Spacer Kit Incl (5) #3 20561X253 & (4) #4 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 6.0 GPM 20251X274 Flow Control Button 7.0 GPM... -
Page 13: Manifold Breakdown
SIGNATURE 2 SERIES Manifold Breakdown Description Part Number Complete Manifold Assy w/ Float 65555X330 Screw: 1/4” X 3-1/2” SS Phillips 65555X221 Body with Nozzle & Throat 65555X205 Hose Barb: 1/4 x 1/4” NPT 6900B110 QTY. REF. PART # DESCRIPTION Air Inlet Check Valve Assembly 65555X250 SCREW;... -
Page 14: Bypass Assembly
SIGNATURE 2 SERIES Bypass Assembly Ref # Description Part # Plastic Bypass Valve Assembly 20561X292 Bypass Valve 3/4” Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283... -
Page 15: Additional Information
SIGNATURE 2 SERIES Service Instructions / Instructional Videos Available at www.csiwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to Reactr. -If the filter installation has a “three valve” bypass system, first open the valve in bypass line, then close the valves at the filter inlet and outlet. -
Page 16: Troubleshooting
SIGNATURE 2 SERIES Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittentent or dead power source 1. Reactr Fails to Improper control valve Reset program settings Regenerate programming Automatically Defective power supply Replace power supply Defective Drive motor Replace motor 2. - Page 17 SIGNATURE 2 SERIES NOTES:____________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ Service Instructions / Instructional Videos Available at www.csiwater.com...
- Page 18 Brine Tank Compoents 1 Year the price paid for the product. In no case shall CSI or seller be liable for REVERE Wireless Low Salt Alarm 90 Days any special, incidental, contingent or consequential damages. Special, incidental, contingent and consequential damages for which CSI is not * This warranty does not include media and/or cartridge filter elements.
- Page 19 SIGNATURE 2 SERIES...
- Page 20 SIGNATURE 2 SERIES CSI WATER TREATMENT SYSTEMS 710 Orange St, Ashland, OH 44805 l PH 419-281-6829 l FAX 419-281-2375 www.csiwater.com...
