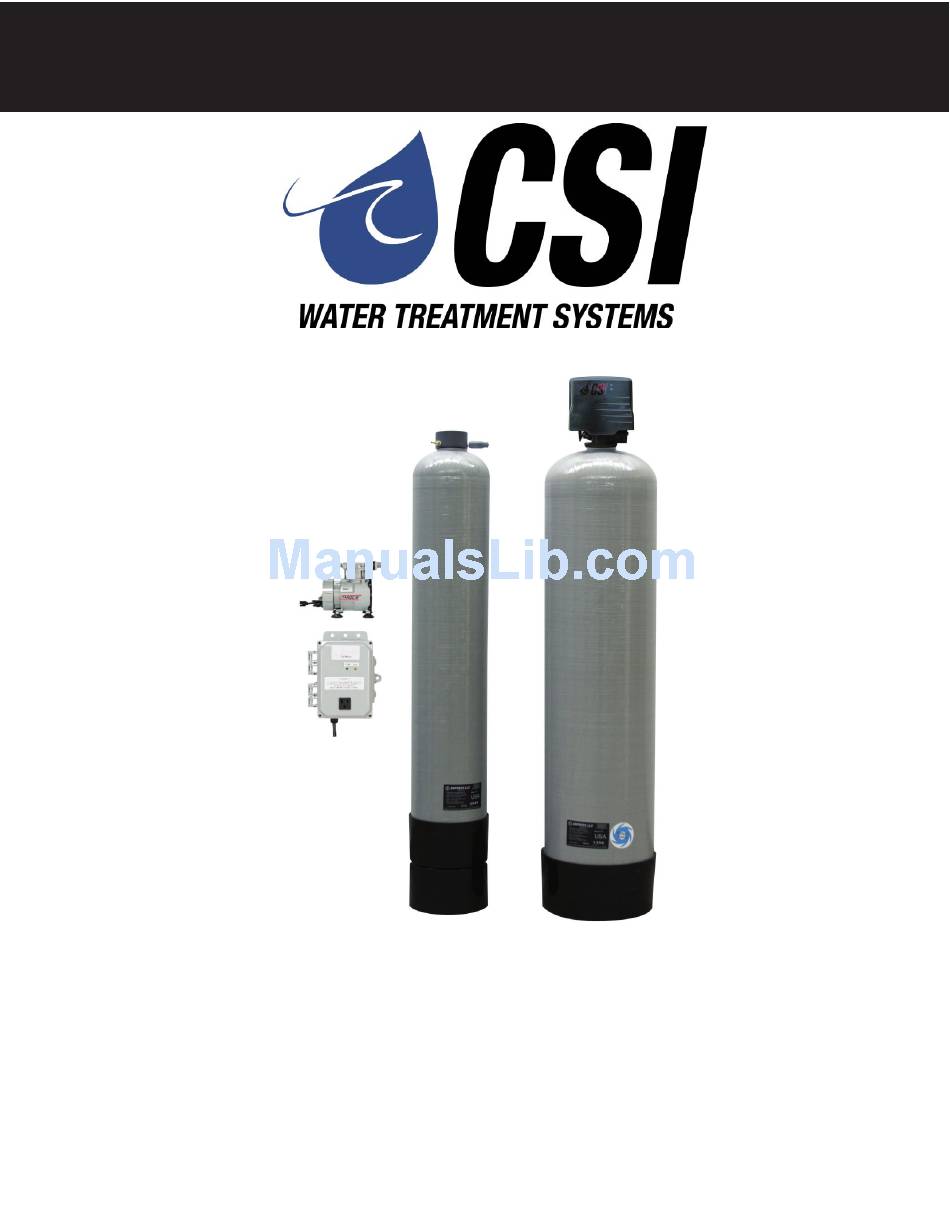

- Page 1 SIGNATURE 2 SERIES Reactr VS Filter Manual Installation / Operation Manual...
-
Page 2: Table Of Contents
SIGNATURE 2 SERIES Filter Specifications........................Page 3 Installation...........................Page 4 Control Start-Up Procedures.......................Page 8 Utilizing Bluetooth........................Page 11 Master Programming........................Page 12 Powerhead Assembly........................Page 13 Valve Body Assembly........................Page 14 Bypass & Manifold Assembly......................Page 15 Additional Information........................Page 16 Troubleshooting...........................Page 18 Error Codes..........................Page 18 Warranty Information........................Page 19... - Page 3 SIGNATURE 2 SERIES Reactr VS Specifications General Specifications RF15VS-S2 RF20VS-S2 RF25VS-S2 RF30VS-S2 RF40VS-S2 SmartBlend ™ Filter Media Type Filter Media Capacity (cu ft) 1.50 2.00 2.50 3.00 4.00 REACTR ™ Tank (polyglass) 10 x 54 10 x 54 10 x 54 10 x 54 16 x 40 Mineral Tank (Vortech ™)
-
Page 4: Installation
SIGNATURE 2 SERIES Installation Provectr Plus 75 PSI RELIEF VALVE TO DRAIN GROUNDED & UNSWITCHED 115- VOLT OUTLET CHECK VALVE SERVICE EXPANSION TANK RELAY REACTR FILTER PRESSURE TANK RAW SERVICE FROM WELL REQUIRED 4" GAP -UNTREATED SECONDARY SERVICE LINE (If needed) -Installation Requirements- A/P Tank •... - Page 5 SIGNATURE 2 SERIES Installation -Reactr VS Location / Other Requirements- • Locate the filter near a 120 volt / 60 Hz grounded electrical outlet. • Check for distance and proper drain installation (e.g. floor drain, washing machine standpipe). • Determine type and size of piping required for PROVECTR connection (e.g. galvanized, PVC plastic). Note: If household plumbing is galvanized and you intend to make an installation with copper (or vice versa), obtain di-electric unions to prevent dissimilar metal corrosion.
- Page 6 SIGNATURE 2 SERIES Installation - Drain Line Connections – 1. Pull out clip and remove drain line assembly located on the left side of control valve. Remove drain line hose elbow and wrap threads with Teflon tape. Reinstall drain line elbow. Replace drain line assembly and reinstall clip until it clicks in place.
-
Page 7: Control Start-Up Procedures
SIGNATURE 2 SERIES Control Start-Up Procedures - Final Checkout - 1. Be certain that the bypass valve is in Service position and main valve is completely on. 2. Check electrical supply to be certain the cord is connected to an uninterrupted 115 volt outlet. 3. -
Page 8: Normal Operation
SIGNATURE 2 SERIES Control Start-Up Procedures Normal Operation Home Display a. Alternates between the display of Time of Day and Number of Days until the Next Backwash. (Metered Softeners will alternate between time of days and gallons remaining until next regeneration) - Days Remaining until the Next Backwash will count down from the entered value until it reaches 1 day remaining. - Page 9 SIGNATURE 2 SERIES Control Start-Up Procedures Starting Extra Regeneration Cycle To Start Delayed Extra Cycle Example ( 1 ) - If Days Remaining Until Next Backwash does not read ‘1’, press and hold the Set/Change button for 3 seconds until the display reads ‘1’. Backwash cycle will initiate at the next designated backwash time.
-
Page 10: Utilizing Bluetooth
SIGNATURE 2 SERIES Utilizing Bluetooth Control To take advantage of the Bluetooth interface this feature must be set up on a compatible Bluetooth enabled smart phones or tablets. Note: Valves with a revision number greater or equal to “C2.00” are only compatible with Bluetooth 4.0+ (a.k.a. Bluetooth LE) Smartphones and tablets. -
Page 11: Master Programming
SIGNATURE 2 SERIES Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT Note: necessary to enter Master Programming Mode. -
Page 12: Powerhead Assembly
SIGNATURE 2 SERIES Control Valve Powerhead Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS * "F" Port is for softener flow meter connection (flow meter not shown) Description Part Number Power Head Assy. 20942C100 Filter Circuit Boad Assy. 21005X102 Encoder 20001X124 Front Plate 20001X004 Encoder Wheel... -
Page 13: Valve Body Assembly
SIGNATURE 2 SERIES Valve Body Drive Assy. Description Part # Qty. R e f Piston Assembly 20001X231 10-24 X 13/16” Screw 20001X226 Seal and Spacer Kit Incl (5) #3 20561X253 & (4) #4 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 7.0 GPM 20251X274... -
Page 14: Bypass & Manifold Assembly
SIGNATURE 2 SERIES Bypass & Manifold Assembly Ref # Description Part # Plastic Bypass Valve Assembly 20561X292 Bypass Valve 3/4” Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283 Description Part Number 1/4” Brass Hose Barb 65555X217 Vent Tube 3/4” OD X 1/4” ID X 12” 65555X216 VS Manifold with O-Ring 65555C007... -
Page 15: Additional Information
Service Instructions / Instructional Videos SIGNATURE 2 SERIES Available at www.csiwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to filter. -If the filter installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the filter inlet and outlet. - Page 16 SIGNATURE 2 SERIES To Replace Seals and Spacers 1. Follow steps A1 - A3. 2. Remove the control valve cover. 3. Remove screw and washer at drive yoke. Remove powerhead mounting screws. The entire powerhead assembly will now lift off easily. Remove piston retaining plate screws. 4.
-
Page 17: Troubleshooting
SIGNATURE 2 SERIES Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittentent or dead power source 1.Filter Fails to Improper control valve Reset program settings Regenerate programming Automatically Defective power supply Replace power supply Defective Drive motor Replace motor 2. -
Page 18: Warranty Information
Brine Tank Compoents 1 Year the price paid for the product. In no case shall CSI or seller be liable for REVERE Wireless Low Salt Alarm 90 Days any special, incidental, contingent or consequential damages. Special, incidental, contingent and consequential damages for which CSI is not * This warranty does not include media and/or cartridge filter elements. - Page 19 SIGNATURE 2 SERIES Notes:...
- Page 20 SIGNATURE 2 SERIES CSI WATER TREATMENT SYSTEMS 710 Orange St, Ashland, OH 44805 l PH 419-281-6829 l FAX 419-281-2375 www.csiwater.com...
