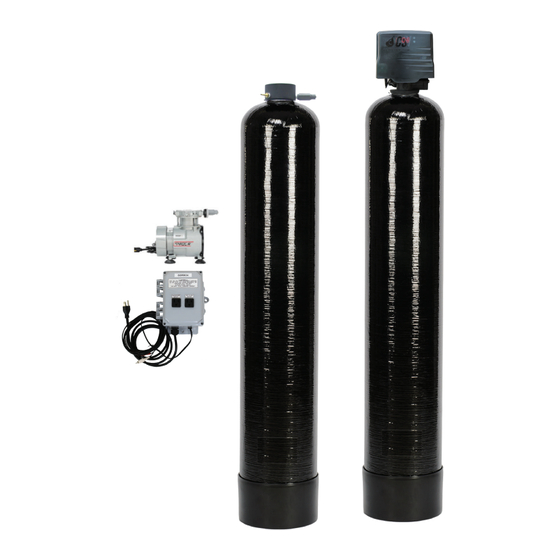

- Page 1 Signature 2 Signature 3 Reactr VS Installation / Operation Manual...
-
Page 2: Table Of Contents
General Specifications............Page 3 Installation Requirements............Page 4 Programming the Control Valve..........Page 7 Utilizing Bluetooth..............Page 9 Master Programming............... Page 12 Control Valve Powerhead Assy. Sig. 2 & Sig 3...... Page 13 Manifoold Assy. Sig. 2 & Sig 3..........Page 14 Valve Body Assembly Sig. -
Page 3: General Specifications
Reactr VS Specifications General Specifications RF15VS-S2 RF20VS-S2 RF25VS-S2 RF30VS-S2 RF15VS-S3 RF20VS-S3 RF25VS-S3 RF30VS-S3 SmartBlend ™ Filter Media Type Filter Media Capacity (cu ft) 1.50 2.00 2.50 3.00 REACTR ™ Tank (polyglass) 10 x 54 10 x 54 10 x 54 16 x 40 Mineral Tank (Vortech ™) 10 x 54... -
Page 4: Installation Requirements
Installation -Installation Requirements- A/P Tank • A level floor position between the well pump and pressure tank. (See Typical Installation Diagram.) • DO NOT install in an area of direct sunlight or where freezing temperatures may occur! Filter Tank • A level floor position ahead of piping into water heater. •... - Page 5 Installation -Reactr VS Location / Other Requirements- • Locate the filter near a 120 volt / 60 Hz grounded electrical outlet. • Check for distance and proper drain installation (e.g. floor drain, washing machine standpipe). • Determine type and size of piping required for Reactr VS connection (e.g. galvanized, PVC plastic). Note: If household plumbing is galvanized and you intend to make an installation with copper (or vice versa), obtain di-electric unions to prevent dissimilar metal corrosion.
- Page 6 Installation - Drain Line Connection - 1. The drain line flow control assembly is pre-assembled for your convenience. Should you choose to hard plumb the drain line, please remove the barb fitting. The flow control housing can be removed by removing the clip and pulling straight out on housing.
-
Page 7: Programming The Control Valve
Control Start-Up Procedures - Final Checkout - 1. Be certain that the bypass valve is in Service position and main valve is completely on. 2. Check electrical supply to be certain the cord is connected to an uninterrupted 115 volt outlet. 3. - Page 8 Control Start-Up Procedures Normal Operation 1. Home Display a. Alternates between the display of Time of Day and Number of Days until the Next Backwash. (Metered Softeners will alternate between time of days and gallons remaining until next regeneration) - Days Remaining until the Next Backwash will count down from the entered value until it reaches 1 day remaining.
-
Page 9: Utilizing Bluetooth
Utilizing Bluetooth Control For simplified set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart phone or tablet. 1. Download and install the Legacy View app from the Google Play Store, Apple App Store 2. - Page 10 Set Up Utilizing Bluetooth App Change Time of Day (Press “SET” to set time automatically based on device). For Filters: Set Backwash Frequency This sets the amount of day between backwash cycles Set Regeneration Time Example: For 2a.m., just type 2, choose a.m., and press ‘OK’ Note: If you have a filter and a softener the valves should be set to regenerate at different times.
- Page 11 Set Up Utilizing Bluetooth App Status and History From the Status and History, all items in ORANGE can be reset. Pressing this icon will show a list of the data that is in the graph Touch any graph to enlarge and see details.
-
Page 12: Master Programming
Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT necessary to enter Master Programming Mode. 1. -
Page 13: Control Valve Powerhead Assy. Sig. 2 & Sig
Control Valve Assembly - Signature 2 & SIGNATURE 3 LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS * "F" Port is for softener flow meter connection (flow meter not shown) Description Part Number Power Head Assy. 21006X100 Filter Circuit Boad Assy. 21002X101 Encoder 20001X124 Front Plate... -
Page 14: Manifoold Assy. Sig. 2 & Sig
Manifold - Signature 2 & SIGNATURE 3 Description Part Number 1/4” Brass Hose Barb 65555X217 Vent Tube 3/4” OD X 1/4” ID X 12” 65555X216 VS Manifold with O-Ring 65555C007 Reactr Float Assembly 65555X210 Diffuser with Screws 65555X212 Manifold O-Ring 20561X205 VS Check with 1/4”... -
Page 15: Valve Body Assembly Sig
Valve Body Assembly - Signature 2 Description Part # Qty. R e f Piston Assembly 20001X231 10-24 X 13/16” Screw 20001X226 Seal and Spacer Kit Incl (5) #3 20561X253 & (4) #4 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 6.0 GPM 20251X274 Flow Control Button 7.0 GPM... -
Page 16: Bypass Assembly Sig
Bypass Assembly - Signature 2 Ref # Description Part # Plastic Bypass Valve Assembly 20561X292 Bypass Valve 3/4” Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283... -
Page 17: Valve Body Assembly Sig
Valve Body Assembly - SIGNATURE 3 Description Part # Qty. R e f Piston Assembly 20001X231 10-24 X 13/16” Screw 20001X226 Seal and Spacer Kit Incl (5) #3 20561X253 & (4) #4 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 6.0 GPM 20251X274 Flow Control Button 7.0 GPM... -
Page 18: Bypass Assembly Sig
Bypass Assembly - Signature 3 Description Part No. D15 Bypass 20017X283 1” Female Straight Slip Set (optional) 20017X288 1” NPT Elbow Set 20017X284 1” NPT Straight Set 20017X289 Elbow, Vertical Adapter Blank (optional) 20017X295 Elbow, Vertical Adapter 1/4” NPT Tapped (optional) 20017X294... -
Page 19: Service Instructions
Service Instructions / Instructional Videos Available at www.csiwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to conditioner. -If the conditioner installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the conditioner inlet and outlet. -
Page 20: Troubleshooting
Troubleshooting Guide To Replace Meter 1. Follow steps A1 - A3 2. Unplug meter cable from front of circuit board. 3. Unscrew meter assembly nut from valve body. 4. Remove meter from valve body and clean or replace as necessary. 5. -
Page 21: Error Codes
Error Codes Control Valve Error Code Diagnosis Under normal operating conditions, when your control valve is in the “in service” position, the display should alternate between the current time of day and the number of days remaining (for filters and time clock softeners) or gallons remaining (for metered softeners) until the next regeneration. -
Page 22: Warranty Information
